Vacuum Antenna Skin Packaging Machine(No Mould Needed) for Hardware Packing

 Instant heating and constant heating type Vacuum Skin Tighten packaging machine for Hardware Skin packing and Electronics packing and food packing and Auto parts and Stationery Etc. Skin packing(No Mould is Needed)

      Features:
1. The machine is simple to operate, cost savings improve practices.
2. The machine adopts oil vacuum pump, fast and safe Operation.
3. Mechanical concave wheel structure, durable.
4. Using a powerful vacuum pump, vacuum pump robust, low noise.
5. This machine is an upgraded version of the operator panel with touch screen PLC control, manual and automatic mode two kinds.
6. The newly developed PLC with touch screen control system, easy to operate, Low failure rate,


Instant heating and constant heating type Vacuum Skin Tighten packaging machine for Hardware Skin packing and Electronics packing and food packing and Auto parts and Stationery Etc. Skin packing(No Mould is Needed) Advantage:

1. Save Energy up to 40%, Products heating Even and Uniform

2. Use high quality Motor and Electric parts, Outstanding Durability

3. Instant heating and automatic cutting device, use immediately after power on.

4. No Air compressor is needed

5. use fixed Heating box, Saving 30% Occupied area compare to Constant Heating type

6. Heating Power: Instant heating is 27KW, And  constant heating is below 10KW

7. Working area: 55x80cm

   Application:

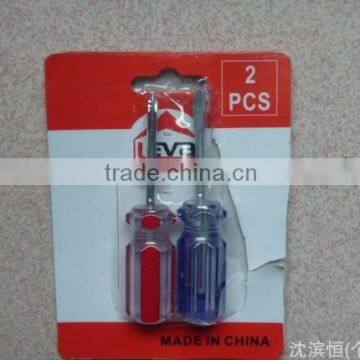

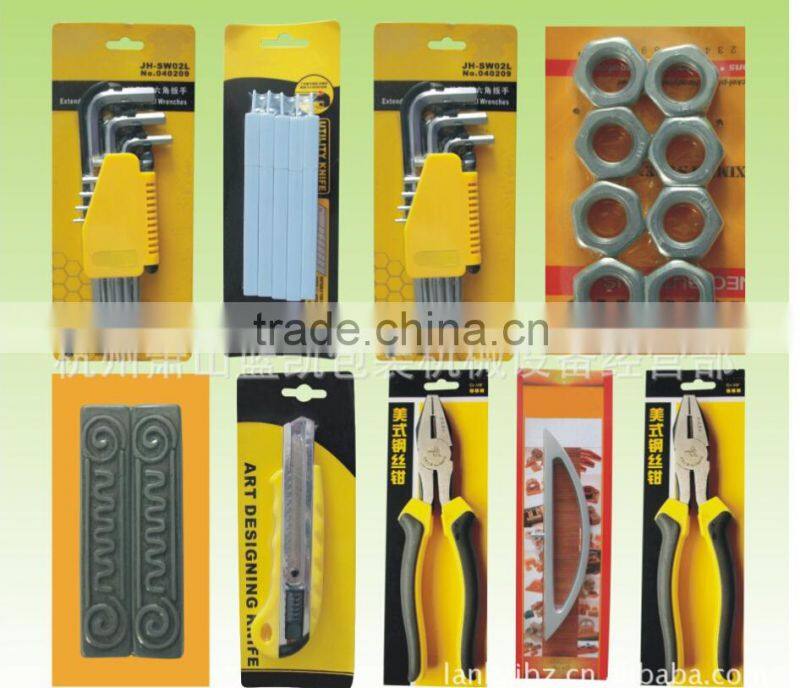

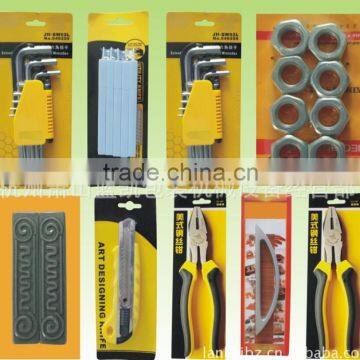

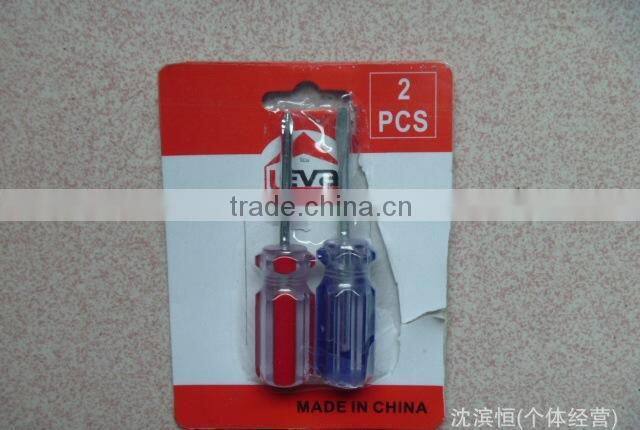

  The Machine is suitable for computer, PCB circuit boards, electronic products, pharmaceuticals, medical equipment, food and a variety of stationery, hardware, auto parts, household appliances, toys, decorations, gifts, industrial products packaging, beautiful finished appearance, and can meet customer requirements cut into shape.

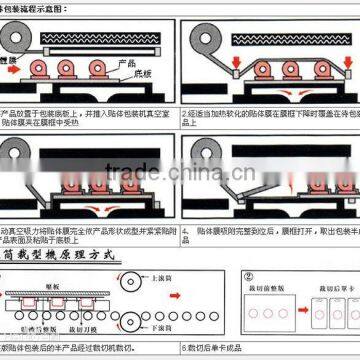

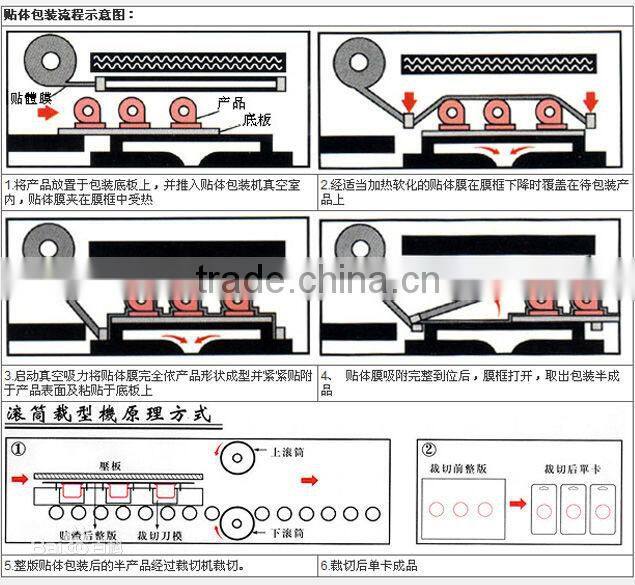

Packaging process

1, Put the product and packaging plate fitted into the vacuum chamber packaging machines, Put body-film sandwiched film in heated box;
2, the film softened by heating cover the products ready to be packing when Declining;
3, start Vacuum Suction To put the film to adsorb with the products and the bottom plate

4, the film box open, remove the packed finished products.
Operating Area: L800 * W550 * H180MM
Applicable film width: 609-615mm
Vacuum pump: 3HP
Electric heating: 27KW

Specification:

Packing:  Standard Seaworthy exported wooden package

Delivery: 7 to 30 working days, depends on quantity and production.

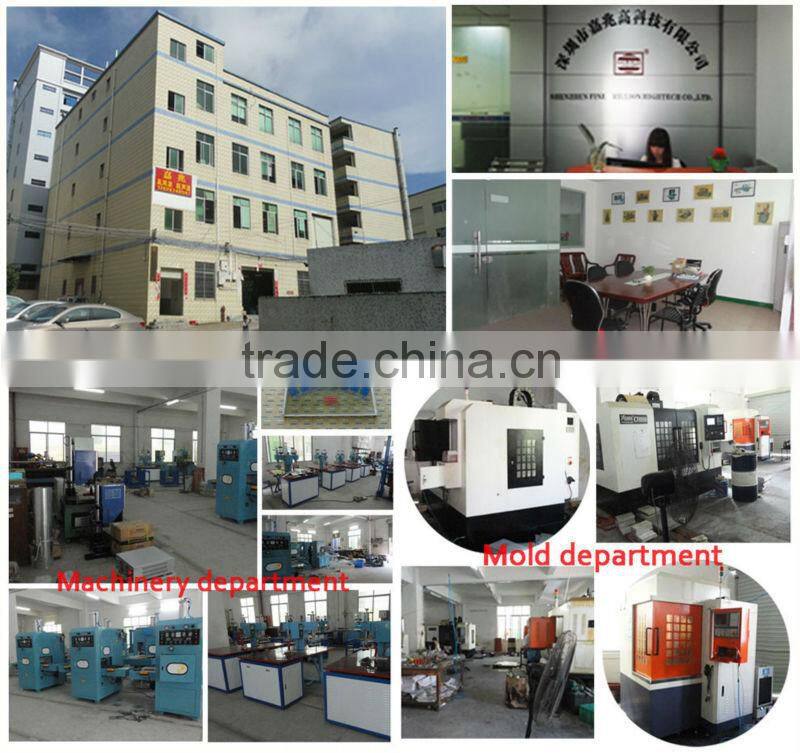

  We are manufacturer of Plastic Welding and packing Machine and related molds which founded in 2006. We have our own design department for the mold and machine which can do customized machines. We welcome any of your ideas.
