Help CenterPET Preform Bottle Storage Container
Related Products
Specifications
PET preform bottle storage container1) Finish: zinc or powder coating
2) saving space and stackable
3) 800KG loading capacit

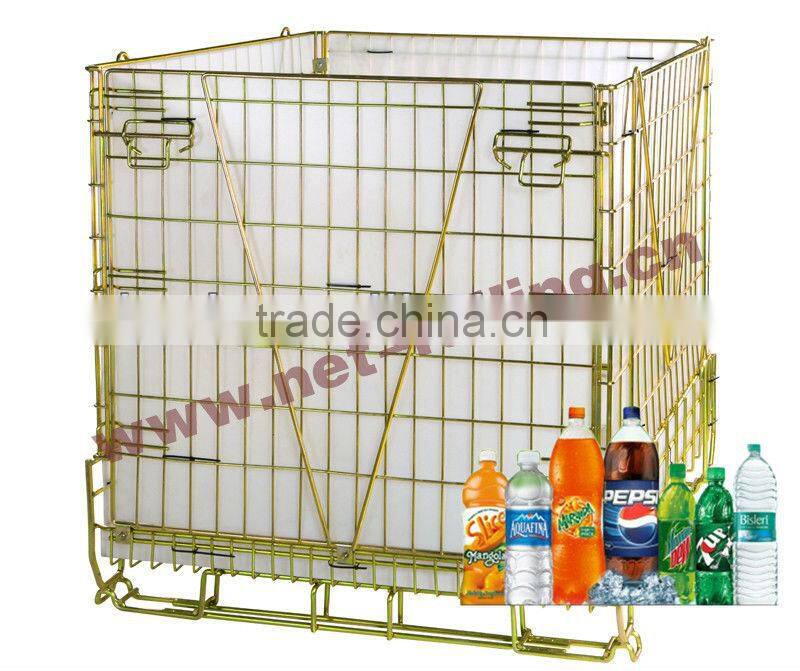

PET preform bottle storage container
| Product Code | F-22 |
| External Dimension | 1213MM(L) x 1008MM(W) x 1174MM(H) |
| Mesh Size | 65x 120mm |
| Wire Guage | Ø10 - Ø 5.0mm |
| Capacity | 800kg |
| Stackability | 4 High |
| Weight | 64.5kg |
| Finish | Zinc plated |
| Remark | Build products to your specifications |
| Features | Bright electro zinc plated after welding for rust-free life |
| 4-way forklift access | |
| Front drop gate for easy access | |
| Robust wire formed construction | |

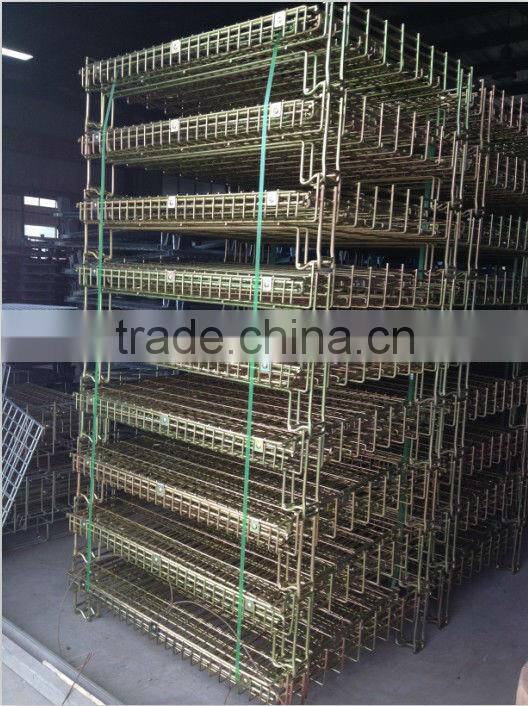

| Folds flat for space-saving shipping and storage | |
| Long lasting, economical alternative to disposable packaging |
Othe dimension available:
| Model No. | Exterior dimension | Interior dimension | Wire Guage | Dimension of Grid | Loading Capacity | Weight | Loaded in 1x 40' Container | ||||
| L | W | H | L | W | H | mm | mm | kg | kg | ||
| F-1 | 1140 | 830 | 980 | 1080 | 800 | 850 | 12---5.0 | 55*113 | 800 | 53.00 | 332 |
| F-5 | 1200 | 920 | 1018 | 1110 | 890 | 880 | 12---5.0 | 51*118 | 800 | 61.00 | 228 |
| F-17 | 1200 | 1000 | 1000 | 1170 | 995 | 845 | 10----5.0 | 65*120 | 500 | 50.50 | 276 |
| F-21 | 1152 | 850 | 992 | 1055 | 800 | 855 | 4.8---14 | 50*120 | 800 | 53.60 | 340 |
| F-22 | 1200 | 1030 | 1190 | 1075 | 965 | 1020 | 4.8---12 | 62*125 | 800 | 64.50 | 163 |
| F-27 | 1182 | 992 | 1160 | 1115 | 962 | 1030 | 5---12 | 56*118 | 800 | 63 | 164 |
| F-28 | 1200 | 1010 | 1200 | 1134 | 978 | 1050 | 5---12 | 62*125 | 800 | 73.50 | 168 |
| F-29 | 1244 | 825 | 965 | 1161 | 790 | 785 | 5---12 | 54*100 | 800 | 51.00 | 216 |

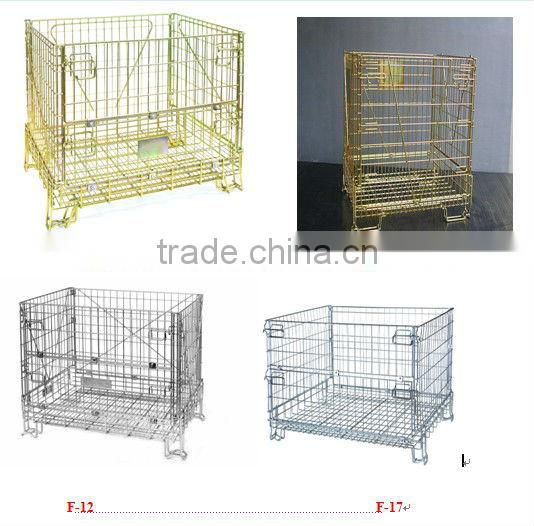

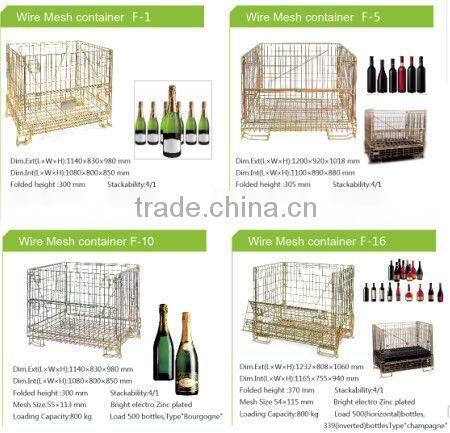

Other similar design available:

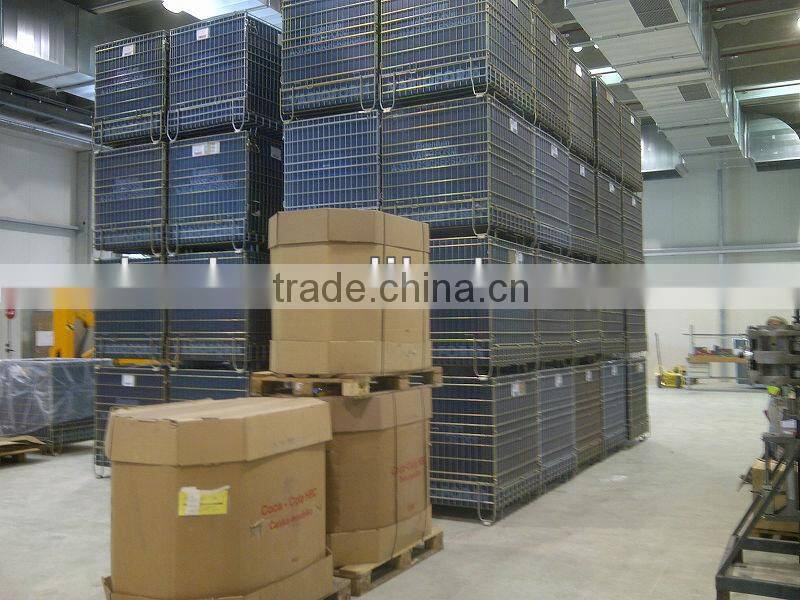

APPLICATION
Pack and stackable:
Champagne container
OUR HONOUR

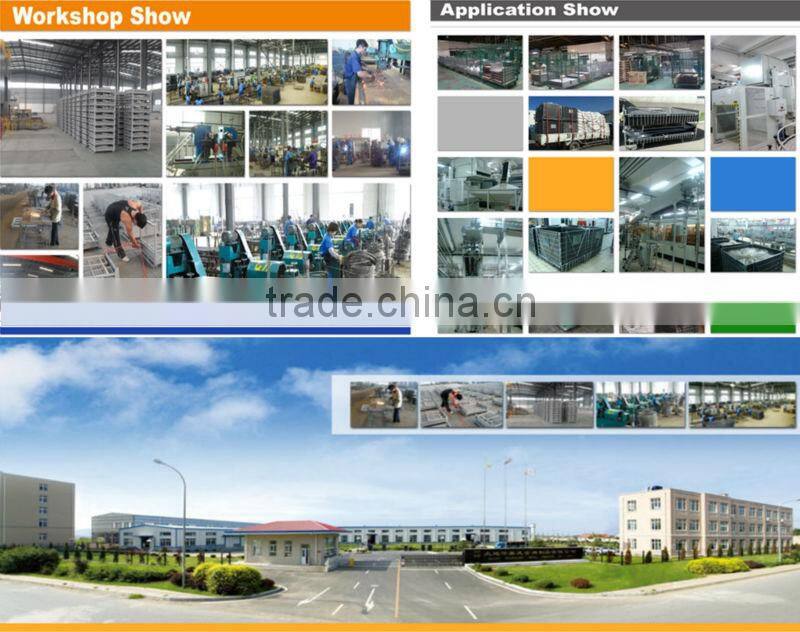

COME TO KNOW MORE ABOUT HUAMEILONG
Dalian Huameilong Metal Products Co.Ltd ,one of the largest manufacturers of transportation security facilities,material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
With more than 18 years of professional manufacturer experiences,we have sucessfully record in suppling to our customers in West European,North American,Australia,Mid East and etc and have win highly reputation among customers.
Main products include the wire mesh container,wire mesh decking,roll container,steel converter, wire mesh fence and other wire mesh products.With nearly 1200 tons of mesh products produced monthly in our modern 30000 square meters office and factory premises,coupled with 400 skillful technicians and engineers working round the clock,we can efficiently handle your volume needs.
As we are located in Dalian,one of the biggest sea ports in North China,enabling us to provide efficient shipping and logistics service for your emergency orders. If you are interested in any one ,please contact with us now.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
