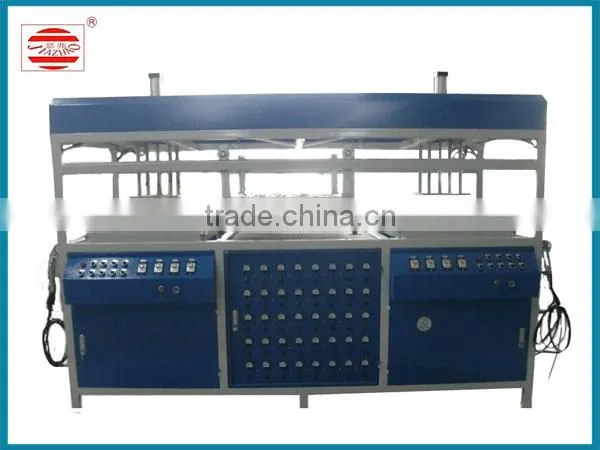

Help CenterJiazhao Full Automatic Blister Cake Box Forming Machine
Related Products
-
Full Automatic PS Material Plastic Vacuum Forming MachinesNegotiableMOQ: 1 Set -
Blister Cover Automatic Forming MachineNegotiableMOQ: 1 Set
-
Fully Automatic High-speed Blister Forming Machine for Egg Tray MakingNegotiableMOQ: 1 Set
-
Foodstuff Box Blister Forming MachineNegotiableMOQ: 1 Set
-
Automatic PS / HIPS / PVC / PET / PP and Flocking Sheet Blister Vacuum Forming MachineNegotiableMOQ: 1 Set
Jiazhao Full Automatic Blister Cake Box Forming Machine Features:
1. Control system: The central integration control system, let feeder →heat →forming →cooling→ out of
mould →cutting as an automatic production line. This machine adopts fittings make sure taht the machine
has high quality.
2. The heater control: The heater is made by stainless steel to avoid the same model machine which made
by iron creates oxidizing iron fall down to material and make products useless.
3. Temperature control system: Infrared ray heating ceramic tile and independent control system ensure be
heated even, inside place heat preservation material reduce calories lost and save energy sources more
than 40% compare with common machine
4. Cold breeze system: Have cooling water machine and spray fog breeze cold system no vibration and
residual wind, expedite produce speed.
5. Vibrate to take off from mold: Can adjust 0~9 times, twice vacuum forming make sure the blister no
transmutation and easy to break off from mold.
6. Twice vacuum forming: Inside place twice vacuum forming make the difficult material easy to form and
increase products quality.
7. Alarm system: Have the product quantity counter; when the plank is full it will be alarm.
8. Control methods: Manual and auto methods can be chose easy to operate the machine.
9. Automatic cutting: Adopt no pole air cylinder drive a razor come-and-go to cut the material. Electric
synchronously adjust up mold.

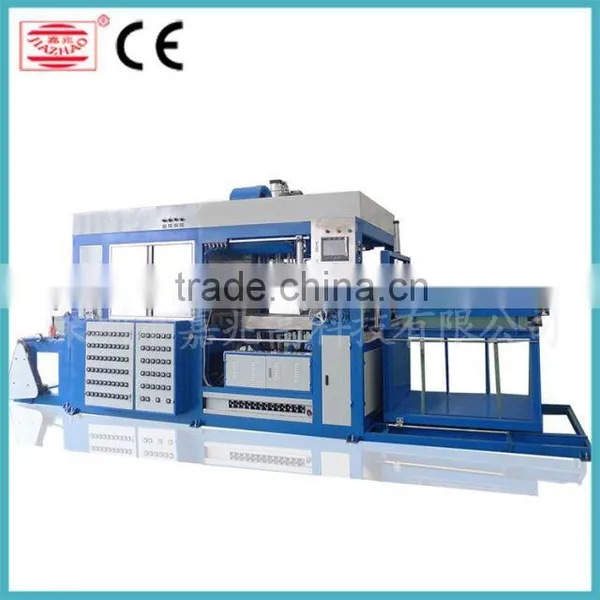

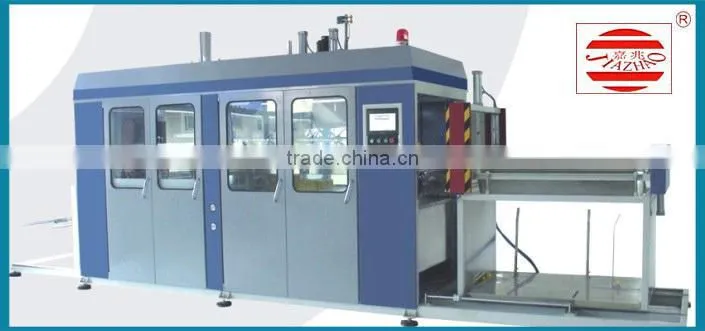

Jiazhao Full Automatic Blister Cake Box Forming Machine
Model |
JZ-1220S |
JZ-1220 |
Table size |
W410-710mm, L600-1200mm |
W410-710mm, L600-1200mm |
Chassis maximum stroke |
350mm |
350mm |
Furnace Control |
Panasonic temperature control module, Display Temperature |
Panasonic temperature control module, Display Temperature |
Vacuum pump |
Germany Rietschle/BUSH 100m³/H |
Germany Rietschle/BUSH 100m³/H |
Pull Sheet |
Frequency motor pull sheet, Frequency servo pull sheet, Servo-driven pull sheet |
Frequency motor pull sheet, Frequency servo pull sheet, Servo-driven pull sheet |
Furnace Power/Total Power |
12KW-15KW/15KW-18KW |
12KW-15KW/15KW-18KW |
Power Supply |
380VAC/50HZ 3 phase |
380VAC/50HZ 3 phase |
Machine dimensions |
6960 x 1445 x 2800mm |
6960 x 1445 x 2800mm |
Weight |
3000kg |
3000kg |
Jiazhao Full Automatic Blister Cake Box Forming Machine
