Help CenterFolding Stack Wire Mesh Container for Heavy Industry
Related Products
-
China Welding Warehouse Pallet Tire RackUS$ 71 - 86MOQ: 50 Sets -
Warehouse Stacking Storage Iron Tire RackUS$ 65 - 100MOQ: 50 Sets
-
Powder Coated Metal Storage the Tire RacksUS$ 91 - 107MOQ: 50 Sets
-
Warehouse Stacking Steel Heavy Pallet RackUS$ 61 - 72MOQ: 50 Sets
-
Galvanized Steel Mesh Nestable Roll ContainersUS$ 57 - 70MOQ: 50 Sets
What could you get from us?
1.Higher quality, reasonable price:
a. We have our own factory, so we can supply you the factory price.
b. Full set quality control system to guarantee the best quality
c. Third party inspection available upon requirement
2. Experienced Service:
a. Professional solusion:
With over 20 years producing experience, we can offer you our best solusion, and help you
to save money.
b. Design
We can translate your original drawing, offer best suggestion on design, or give you our unique
design according to your requires.
c.OEM surpport & customized size

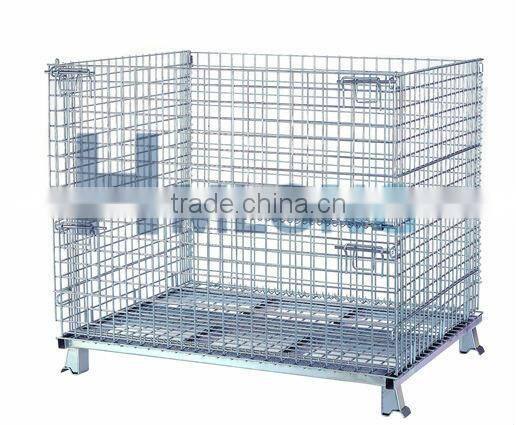

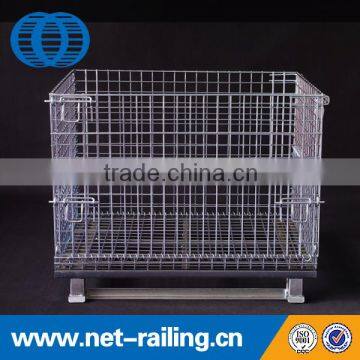

Folding stack wire mesh container for heavy industry
Specifications of wire mesh container for heavy industry
| Same design, defferent sizes | |||||
| Model No. | Exterior Dimension |
Wire Guage |
Grid Size |
Loading Capacity |
Loaded in 1x40'GP |
| LxWxH(mm) | mm | mm | kg | sets | |
| W-1 | 1030x840x850 | 6 | 50x50 | 1300 | 470 |
| L-1 | 1030x840x850 | 6 | 50x50 | 800 | 470 |
| W-2 | 1230x1040x890 | 6.2 | 50x50 | 1700 | 320 |
| L-2 | 1230x1040x900 | 6.2 | 50x50 | 1200 | 320 |
| S-1 | 1230x1040x950 | 6.2 | 50x50 | 1700 | 320 |
| W-3 | 1030x840x500 | 6 | 50x50 | 800 | 470 |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling industry | ||||
| Finish | Zinc/hot dip galvanized/powder coating | ||||
| Remark | Costomized or OEM support | ||||
Rigid wire mesh storage cage features:

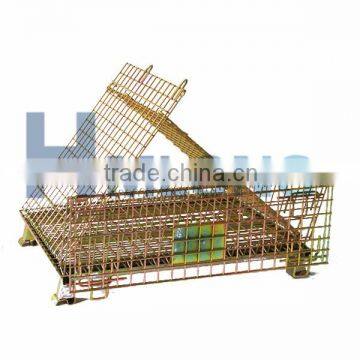

1.Collapsible--save space when not in use, ideal for return journeys
2.Standard half-hinged gate access

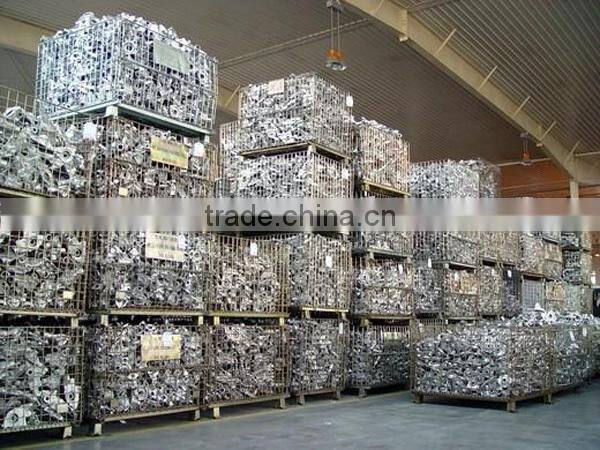

2.Stackable--one cage stacks on the other, make good use of the space
Available accessories
forklift guide/runner bar(more stable when stack on the rack)/wheels/top lid

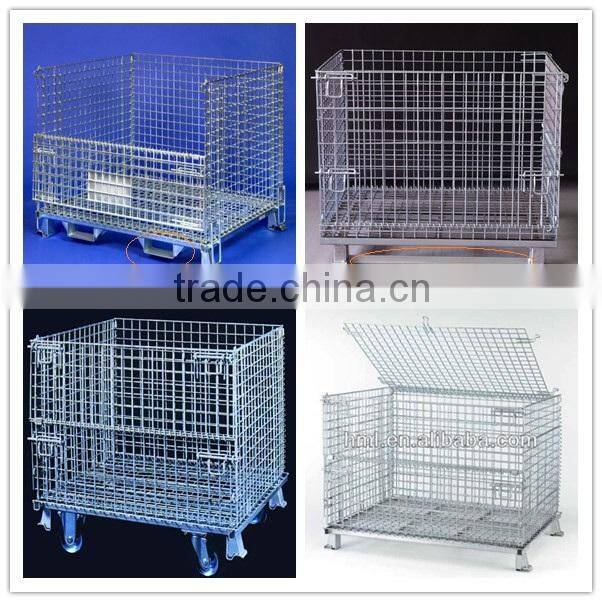

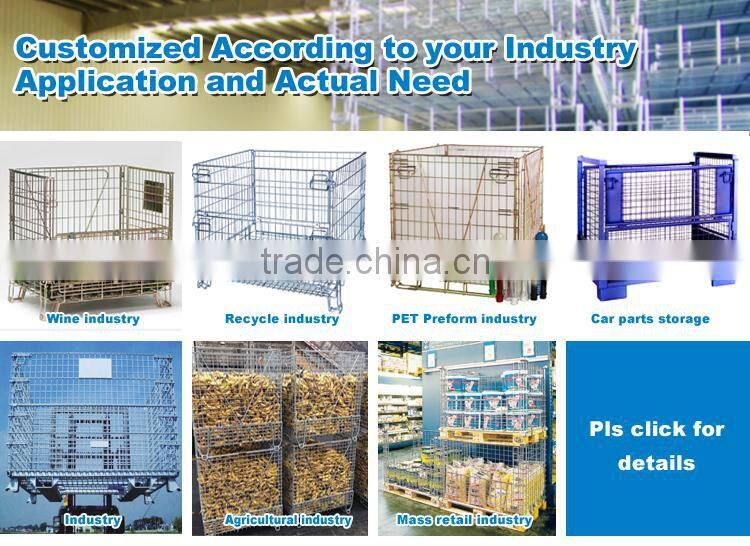

Other kinds for your choice
Skilled and High-Quality Controlled Working Process
Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift
truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---A.Electro galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and
heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost
will be different.
9 I don't have drawing or picture available for th custom products, could you design it for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift handling while
stacking/unstacking B) Overloading is prohibited C) Environment request indoor, dry and not humid
circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts,
no limitation for hot dip galvanized)
