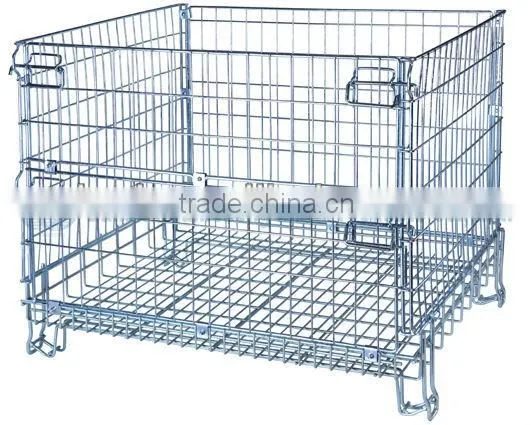

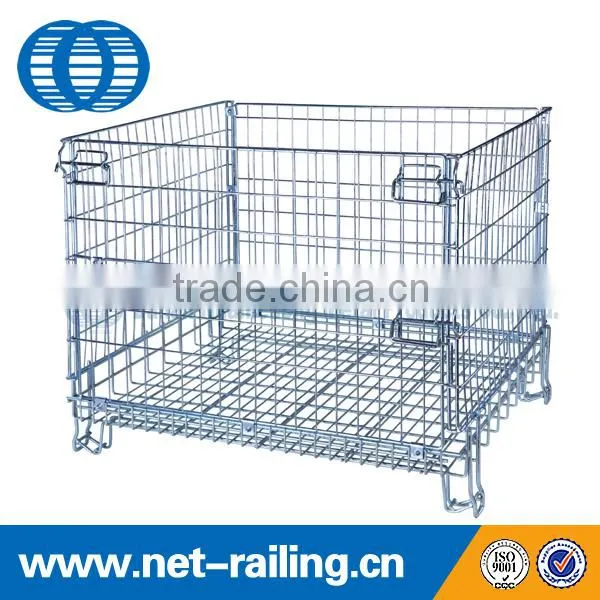

Logistic folded stacking metal wire mesh container with wheels
| Model | F-17 |
| Exterior dimension | 1200X1000X1000mm(LxWxH) |
| Interior dimension | 1170X995X845mm(LxWxH) |
| Wire diameter | Φ5~10mm |
| Mesh size | 65x120mm |
| Weight | 50.5kg |
| Loading capacity | 500kg |
| Stackability | 3+1 high |
| Load in 40'HQ | 276 |
| Finish | Electro zinc plated/hot dip/powder coating |
| Remark | Can build products as custom specification |
Main Features of wire mesh container

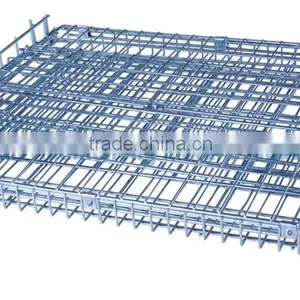

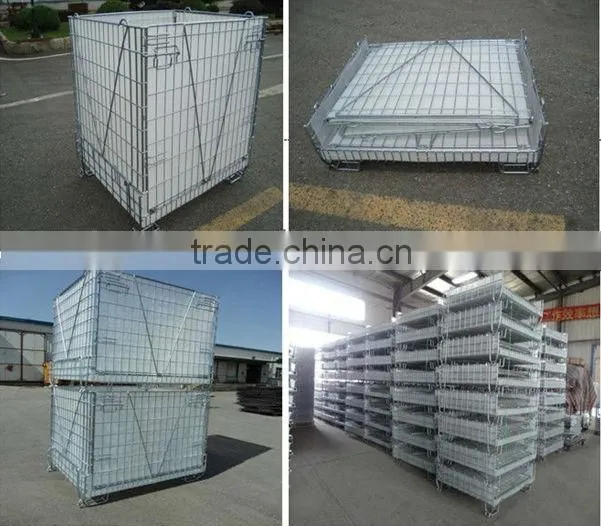

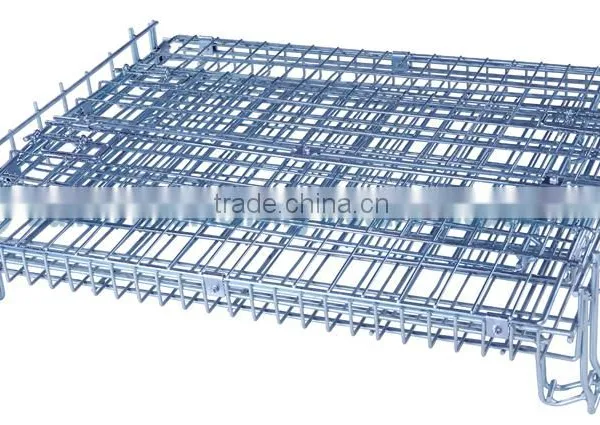

1.Collapsible-save space when not in use,ideal for return journeys
2.Bright electro zinc plated finish
3.Standard half-hinged gate access
4.Long lasting,economical alternative to disposable packing
5.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness.
6.Four-way entry for easy use with lift trucks

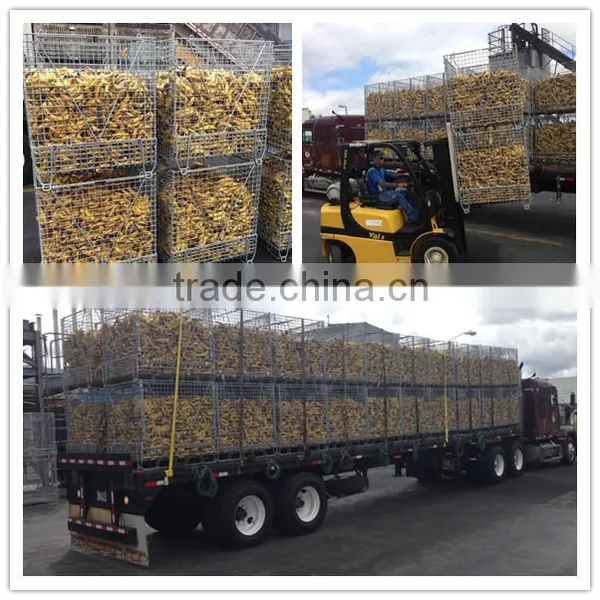

7.Application:widely used in agricultural,electronic equipment

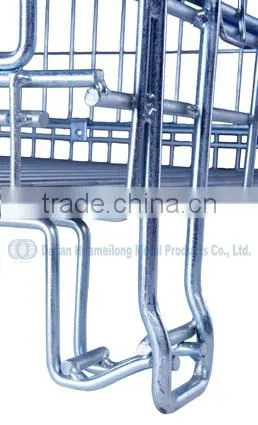

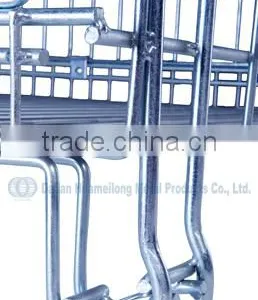

Details of stacking wire mesh container
Welcome to know more about Huameilong !
Dalian Huameilong Metal Products Co.Ltd ,one of the largest manufacturers of transportation security facilities,material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
With more than 18 years of professional manufacturer experiences,we have sucessfully record in suppling to our customers in West European,North American,Australia,Mid East and etc and have win highly reputation among customers.
Main products include the wire mesh container,wire mesh decking,roll container,steel converter, wire mesh fence and other wire mesh products.With nearly 1200 tons of mesh products produced monthly in our modern 30000 square meters office and factory premises,coupled with 400 skillful technicians and engineers working round the clock,we can efficiently handle your volume needs.
As we are located in Dalian,one of the biggest sea ports in North China,enabling us to provide efficient shipping and logistics service for your emergency orders. If you are interested in any one ,please contact with us now.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
-------------------------------------------FAQ ------------------------------------------
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
--Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---Electro galvanized ,hot dip galanized, painting or powder coating is available.
5, What is the loading capacity?
--- In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6, I have no much experience on the logisitcs products, any recommendation?
---You could either choose from our hundreds of standard products or provide relevant information so we could design for you.
7, Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
8, I like your design, but couldnt find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
9, I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
10, I don' have drawing or picture available for th custom products, could you design it for me?
---Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
11, What is the minimum quantity I can order?
---1x20'GP - qty is variable depend on the size.
12, What is your average production lead time?
---2-3 weeks against formal order and deposit.
13, Do I get any guarantee from your company?
---3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
14, What happen in case any quality problem is identified after arrival?
---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
