Specifications
Hot Selling Rotary kiln made in China1.High temperature
pletely structure
3.ISO 9001 : 2000 Certificated
High Temperature Iron Ore Rotary Kiln
Part One : General Description of iron ore rotary kiln

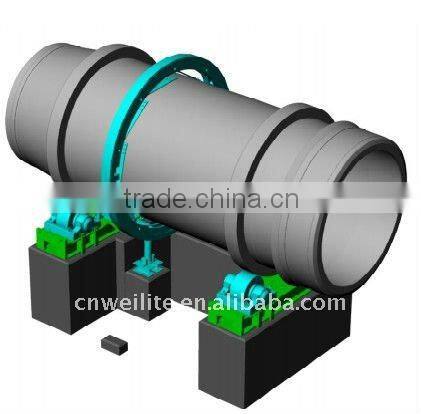

Rotary kiln is the calcine equipment widely uesd in cement, metallurgy, and chemical industry . It is mainly composed of cylinder, supporting device, sealing device at the head and end of the kiln, coal injection tube at the kiln head, and at the end of the kiln, there equipped with smoke room, cogeneration boiler, pre-heating and pre-decomposing furnace.
Part Two : Usuage of iron ore rotary kiln
rotary kiln used for catalyst, molecular sieve, zinc oxide, annealing, non-ferrous metal smelting steel industry, etc.
Our kiln can be divided into many types: Internal Thermal Type Rotary Kiln, Cement Rotary Kiln, Metallurgy Rotary Kiln, Metal Magnesium Rotary Kiln, Haycite Rotary Kiln, Zinc Oxide Rotary Kiln, Lime Rotary Kiln, Calcining Rotary Kiln, etc.
Part Three :Working Principle of iron ore rotary kiln
Through the technical renovations, the rotary kiln calcining system equipment made has adopted the advanced hydraulic thrust roller device, the high measuring precession plunger pump, the variable speed adjusted valve, the contact graphite block sealing device and the other national advanced technologies. In order to raise up automation degree, the industrial TV has been used at the kiln head for monitoring of kiln,With the use of these new of these new technologies, it is direct in vision, convenient in operation and reliable in use. Therefore, the thermal condition can be stabilized and the running rate of equipment can be raised. Compared to same sized equipment, its running rate has been raised 10% up, production has been increased 5-10% and heat consumption has been reduced 15% down.
Part Four : Main Parameters of iron ore rotary kiln
| Model | Output | Obliquity |
Motor Power | Weight |
| Φ1.4x3.3 | 0.9~1.3 t/h | 3% | 18.5kw | 47.5t |
| Φ2.5x40 | 9.0~10.5t/h | 3.5% | 55kw | 149.61t |
| Φ3.0x45 | 12.8~14.5t/h | 3.5% | 75kw | 210.94t |
| Φ3.2x50 | 40.5~42t/h | 4% | 125kw | 278t |
Note :
Weilite design the rotary kilns specifically for your application , so if the size you want is not listed in this chart , please contact me freely ! Call me , I'm Steve . +86 371 86687769
