Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > IGBT DC Inverter Three Phase High Frequency Portable Argon Gas Tig/arc Stainless Steel Welder TIG-250

IGBT DC Inverter Three Phase High Frequency Portable Argon Gas Tig/arc Stainless Steel Welder TIG-250

IGBT DC Inverter Three Phase High Frequency Portable Argon Gas Tig/arc Stainless Steel Welder TIG-250 photo-1

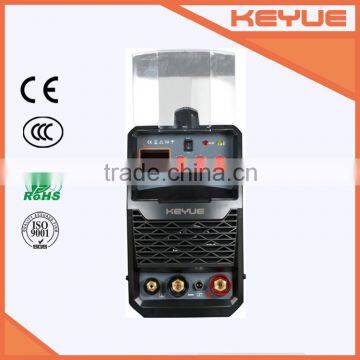

IGBT DC Inverter Three Phase High Frequency Portable Argon Gas Tig/arc Stainless Steel Welder TIG-250 photo-2

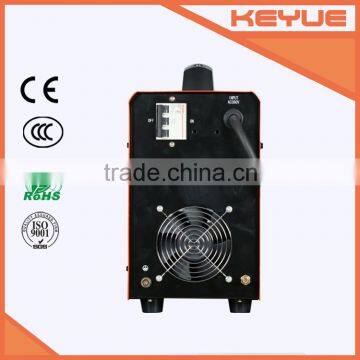

IGBT DC Inverter Three Phase High Frequency Portable Argon Gas Tig/arc Stainless Steel Welder TIG-250 photo-3

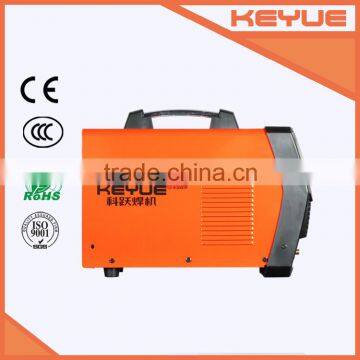

IGBT DC Inverter Three Phase High Frequency Portable Argon Gas Tig/arc Stainless Steel Welder TIG-250 photo-4
US$ 156 - 164 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KEYUE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI&NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name KEYUE
Model Number TIG-250
Arc Current 250A
Pulse Frequency 50/60
Pilot Arc Current 250A
Rated Duty Cycle 60%
Motor Type DC Motor
Dimensions 500*210*340
Usage TIG Welding Machine
Voltage 380
Power(W) 6.3KVA
Certification CCC,CE,ROHS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

INVERTER DC TIG/MMA WELDING MACHINE

  • Adanced IGBT inverter technology delivers superior TIG performance
  • Support TIG/MMA function
  • With HF TIG arc starting, allows to strike the arc easily with high frequency and make it easy to establish an arc under a variety of conditions
  • Compact and portable, high efficiency and energy saving
  • Easy arc startung, small splashing, low noise, great penetration and aesthetic appearance of welding seam
  • Overheat over current, under voltage protections are available
  • Energy saving- compared with the traditional TIG machine more efficient



IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250








 IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250





Technical Data



Model TIG-250
Rated input voltage(V) 3 PH AC380V±15%
Rated frequency(HZ) 50/60
Rated input power(KVA) 6.3
Rated input current(A) 9.6
Rated output 20V/250A
Output current(A) TIG:10-250  MMA:20-220
No-load voltage(V) 60±5

Rated duty cycle(%)

(40℃ 10min)

40%: 250A    100%: 190A
Efficiency(%) 80
Protection grade IP21
Insulation grade F
Net weight(KG) 13
Gross weight(KG) 16.5
Dimension of machine (mm) 500*210*340
Dimension of packing (mm) 570*260*460







IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250



   IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250

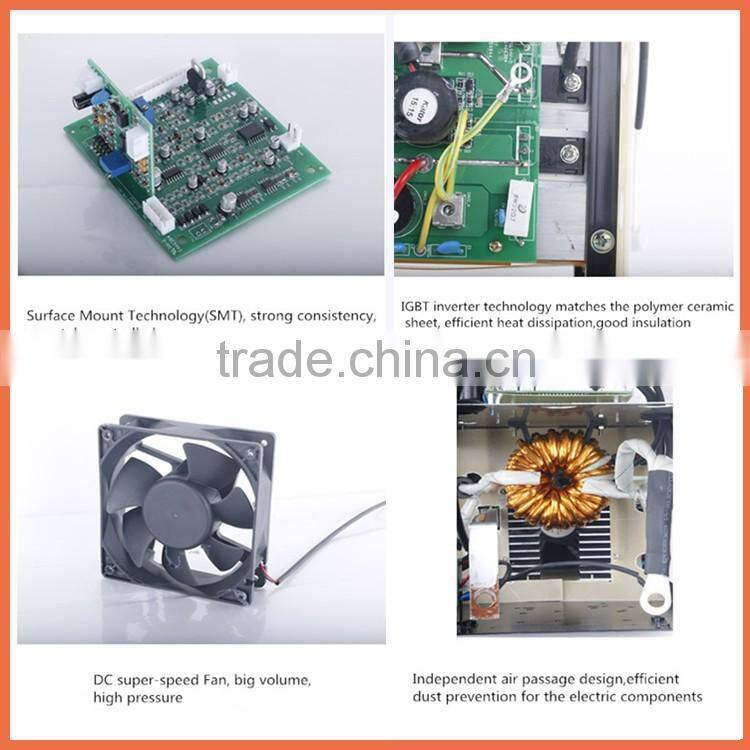

High quality components



IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250



   IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250

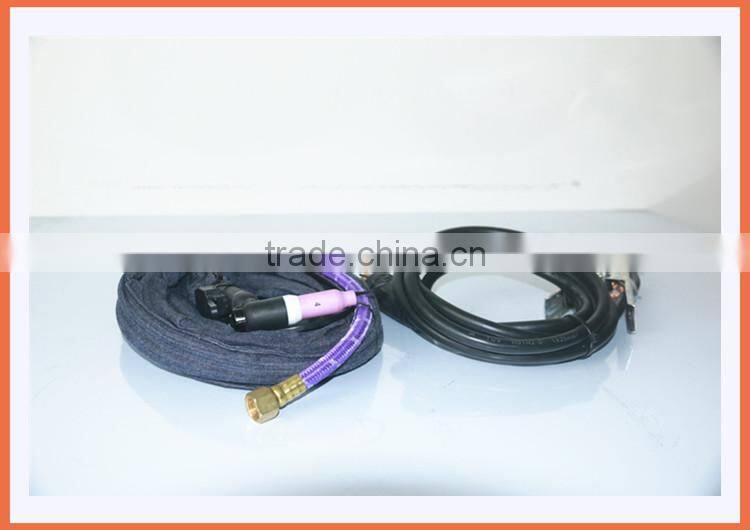

Accessories



IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250



Company Information



 IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250

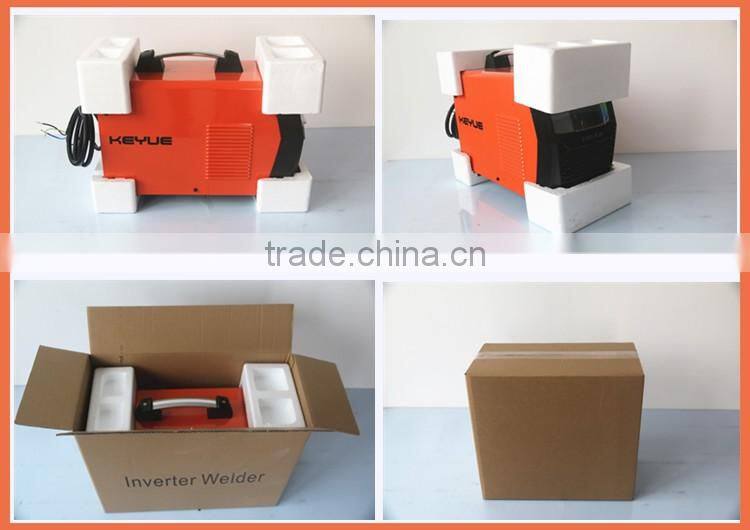

Package

 IGBT DC Inverter three phase high frequency portable argon gas tig/arc stainless steel welder TIG-250
