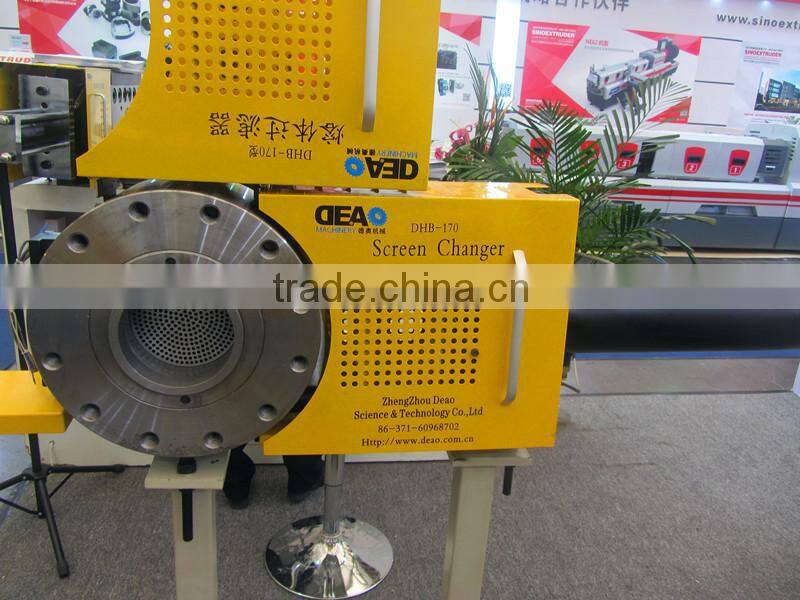

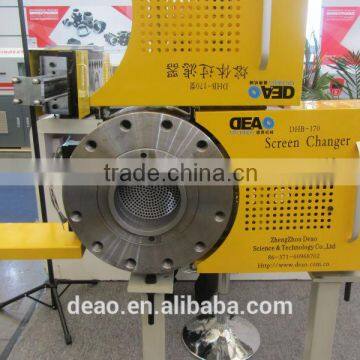

Help CenterScreen Changer With Barrel Clamp and Accumulator
Related Products
-
Single Piston Hydraulic Screen ChangerUS$ 1,000 - 20,000MOQ: 1 Set -
Hydraulic Slide Plate Screen ChangersUS$ 1,600 - 10,000MOQ: 1 Piece
-
Single Plate Automatic FilterUS$ 1,000 - 5,000MOQ: 1 Set
-
Single Plate Polymer Filter ManufacturerUS$ 1,000 - 5,000MOQ: 1 Set
-
High Efficiency Plate Type Quick Screen ChangerUS$ 1,000 - 5,000MOQ: 1 Set
Product Description
The New fast changing or as is called, the plate screen changer is widely used for the production of various plastics and chemical fibers. It is of high performance/price ratio, and ensures the screen changing without machine halt, or any material leakage under high pressure. Therefore, it is especially applicable to large scale machines of film blowing, pipe making, plate making and granulating, etc.
Performance characteristics
1. Automatically compensates the sealed surface clearance (self-owned patent), high-pressure resistant, high-temperature resistant, and no material leakage. Contain screens of large filtering area, especially appropriate for high yield production line under high pressure.
2. No need to stop the working machine when changing the screen, easy to operate and maintain, reliable for higher production output and lower energy consumption, 80%-90% down of waste material caused by screen changing.
3. Simple construction, reliable operation; Easy maintenance, lower running cost; Automatic screen changing by hydraulic; Machine non-stopped with screen changing.
Application fields
Applicable to the production of various thermoplastic, chemical fiber, rubber, collosols, adhesive, coating and finishing materials alike, mainly used for filtration of the material mixture.
Commissioning
At the requirement of customer, seller should send technicians to install and debug the screen changer to the die at site of Buyers, Travelling expenses and accommodation fee should be borne by Buyers.
Warranty service
The product's warranty date is one year. According to the contract technical parameters shall prevail, accord with the actual requirement.
After service
Replace of the spare parts in warranty date, the freight is paid by the buyer.
Technical Data
Type |
Screen—Dm(mm) |
Heating Power(kw) |
Pressure(Mpa) |
Output(Kg/h) |
DHB-70 |
Φ70 |
4.4 |
≤50 |
60-250 |
DHB-100 |
Φ100 |
6.8 |
≤50 |
110-400 |
DHB-120 |
Φ120 |
8.6 |
≤50 |
140-550 |
DHB-150 |
Φ150 |
9.8 |
≤50 |
200-800 |
DHB-170 |
Φ165 |
10.6 |
≤50 |
300-1000 |
DHB-200 |
Φ200 |
12 |
≤35 |
400-1200 |
DHB-250 |
Φ250 |
16.4 |
≤35 |
600-1800 |
DHB-300 |
Φ300 |
16.4 |
≤35 |
800-2500 |
Certificate:
Manufacturer
Customer
Why choose us?
Our screen changer has:
1. Large capacity, large filtering area: Capacity can be reached 20-11300 kg/h, Filtering area: 30-10000 cm2.
2.Continuous process: no material leakage, no need to stop the machine when changing the screen, no production disruption or interference
3. High pressure and temperature resistant: max operation pressure can be 600 bar, temperature : 330°C.
4. Automatic without manual work: fully automatic belt filter without manual work; back flush function: screen washing online to replace manual work.
5. Good wear-resistance: high-quality, high-performance alloy material after precise finishing and particular hardening.
6. Easy maintenance: easy to install and maintain, reliable and economical.
7. Wide range of choices: we provide different dimensions of product which can meet various needs.
