4-screen circulated working screen changer
- 100 Set / Sets per Month
- SHANGHAI QINGDAO
- T/T Credit Card
- Low Price PVC WPC profile for Window and Door Profile Production Line making machine
- Double corner automatic plastic refrigerator gasket welding machine PVC gasket welding machine
- PLA PBS PBAT Starch Straw Sheet Extrusion Line
- Sheet Extrusion Line / APET PETG CPET sheet extrusion line
- Ice Chest/Freezer Sealing Strip Door Gasket Magnetic Strip Making Machine/Magnet Strip Extruder for refrigerator door gasket
- Magnet Strip Extruder for refrigerator door gasket
Product Details
Place of Origin: | Henan, China | Brand Name: | DEAO | Model Number: | DHX |
Product Description

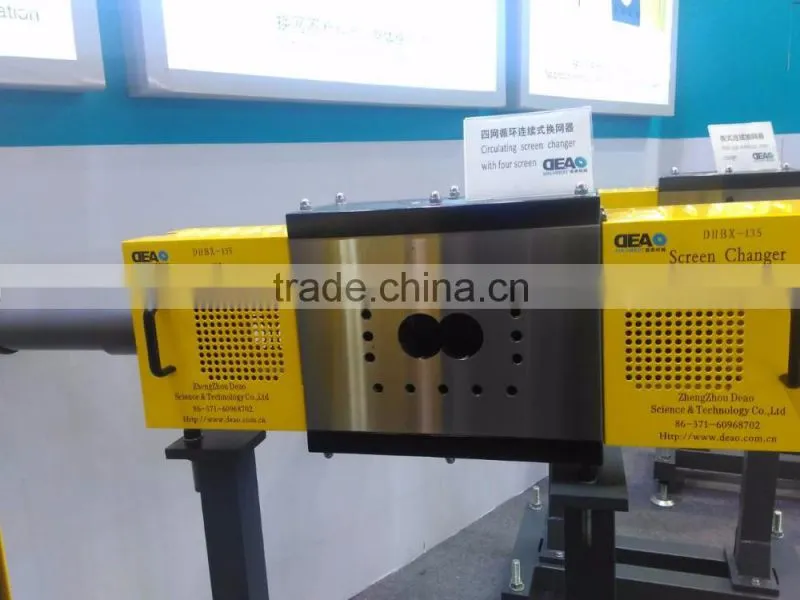

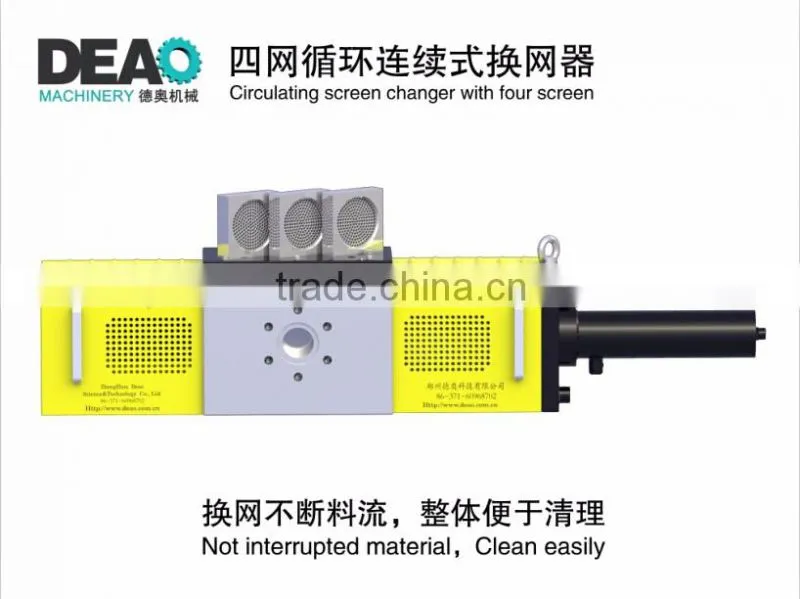

4-screen circulated working screen changer
Description

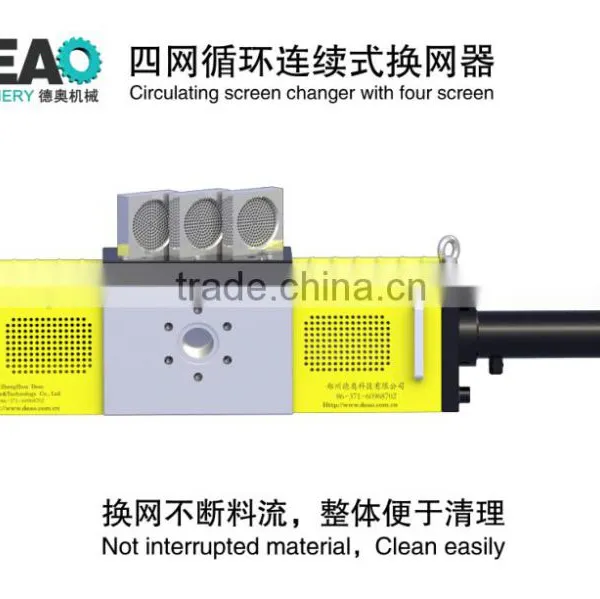

It is consisted of screen changer main body and 4 independently worked screen molds.Compared with dual plate and dual screen changer,material flow fluctuation and pressure fluctuation is smaller,thus promises the continuous and stable production.
Application
• Granulation ,pipe making,board making ,sheet making,EPE and EPS foam,XPS extrusion board,PVB explosion-proof membrane ,hollow board,BOPET/BOPP,Long and short chemical fiber.
• Production of various thermoplastic and filtration of mixture material.
Performance Features
•The screen mold moves unidirectional ,it can be easily took out and cleaned,the filtration is more effective and easier for clean.
•Set with preheating working position and exhaust structure,material pressure ,flow and temperature is stable when changing the screen,especially suitable for high transparent and high accuracy products.
•Non machine stop,no film breakage,no break of filament ,no material leakage during screen change.
Technical data
Type | Screen Diameter.(mm) | Capacity(kg/h) | Heating Power (kw) | Pressure(Mpa) |
DHX-70 | Φ70 | ≤250 | 5 | ≤35 |
DHX-100 | Φ100 | ≤450 | 5 | ≤35 |
DHX-120 | Φ120 | ≤600 | 8 | ≤35 |
DHX-130 | Φ130 | ≤700 | 8 | ≤35 |
DHX-150 | Φ150 | ≤900 | 8 | ≤35 |
DHX-170 | Φ170 | ≤1100 | 12 | ≤30 |
DHX-200 | Φ200 | ≤1300 | 12 | ≤30 |
Various style——single screw,double srew are all OK!!!
Why you Should choose us!
1.We are factory,the price is cheaper than the foreign trade company
2.We are original,the design is from our own research group.
3.We have more than 30 years experience,is a strong company.
4.We are professional ,we only do screen changer,that make us deeper than others.
5.We have many years foreign trade ,liked and relied widely by the foreign friends.
How to choose a suitable screen changer?
As for screen changer, we need to be told as follow:
1. screw diameter;
2. Is the extruder single screw or twin screw?
3. raw material;
4. final product (granulating, monofilament or others);
5. Output;
6. maximum pressure;
7. screen change interval;
8. the screen diameter of your current screen changer;
9. have a melt pump or not.
Attached Knowledge
What is screen changer?
Screen changer includes one or more filter devices. When the polymer fluid flow enters the filter device, the contaminants in the melt is blocked in one side of the filter. The filter is supported by a breaker plate, while the breaker plates are installed in the support carriage; support carriage parts can move, stay in the work place or non-working position.
Screen changer is available supporting the device as following: extruder, melt pump, reactor or other extrusion lines. It can be used to filter any type of polymer and thermoplastic.
Why you need melt filtration device?
As quality specifications become tighter and the need to use more recycled materials becomes more prominent, more and more extrusion processors are examining their options in melt-filtration technology. There are three basic reasons why you need melt filtration:
1. Product quality specifications mandate visual or mechanical properties that cannot be maintained without filtration.
2. Downstream equipment may become damaged by contaminants in the melt.
3. Additional melt pressure is needed to improve melt quality.
It is likely that most extrusion processors will fit into one of the above categories, and that they will find a simple breaker plate unsatisfactory due to the time required disassembling and reassembling the device. The alternatives considered here are various types of screen changers, though other types of filters may be used for special purposes, like high output rates and very tight filtration requirements.
Common uses for screen changers are:
Bulk polymer production from a reactor i.e. producing pellets.
Extrusion lines for compounding polymers, blown film, cast film, sheet, pipes, profiles, plastics recycling.
Different types of Screen Changers are available, to cater for different applications and process requirements. Manual type or slow speed screen changers require the production line to be stopped for a short time to enable the filter to be changed, other types, operating at high speed, can change filter without stopping or slowing down the extrusion process.
For the production of blow film, sheet, pipes, etc, continuous flow screen changers are the most suitable type as the melt continues to flow during a screen change.
Each type of Screen Changer is available in different sizes, to cater for different output requirements. Anji Screen Changers are available from 30mm diameter for polymer outputs of 100 kg/h to the massive Extended Area for outputs up to 60,000 kg/h. For new or existing lines, Anji can design and manufacture adaptors, which may be required to connect the Screen Changer to the rest of the line.
