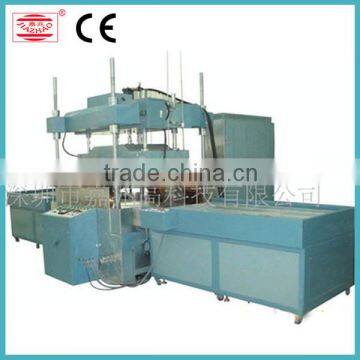

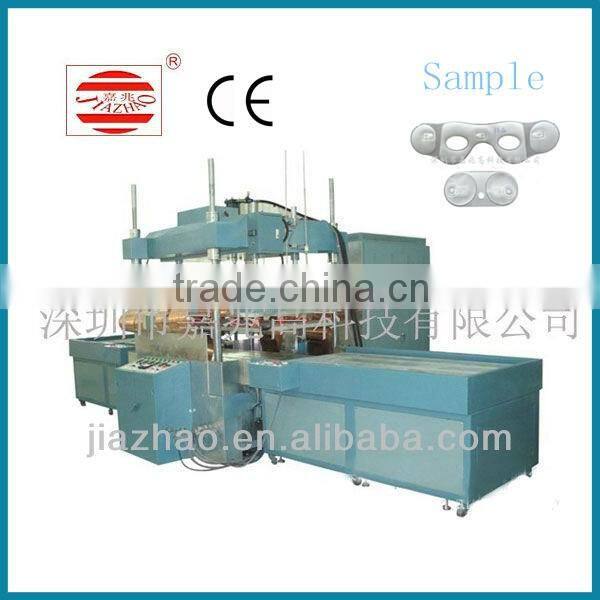

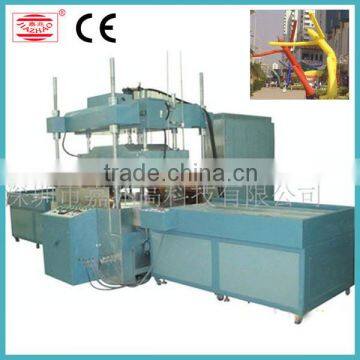

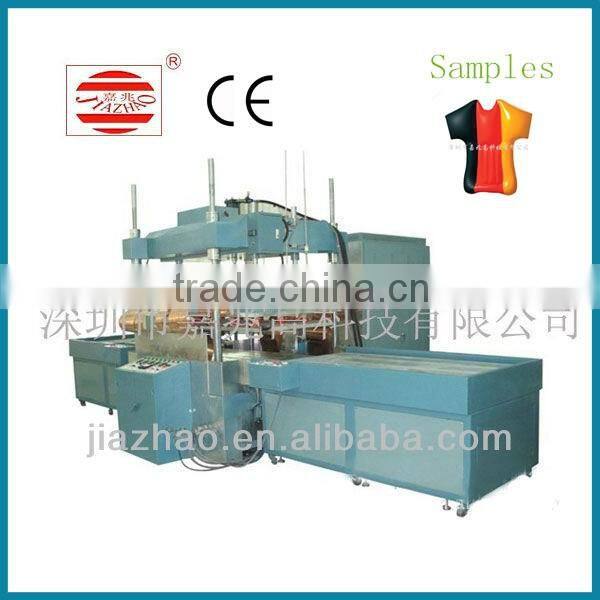

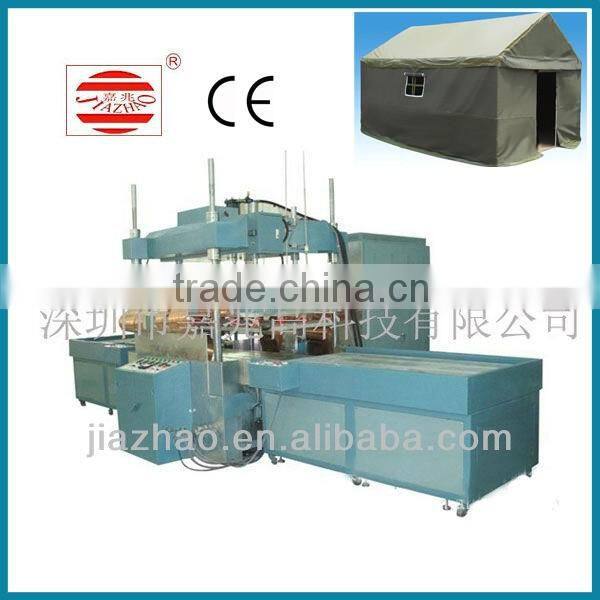

High frequency pvc welding machine / tent making machine
Note: Normally, for 5kw machine, it can weld 700mm. For 8kw machine, it can weld 1000mm, and for 12kw machine, it can weld 1300mm. So different length require different output power.
1. High frequency welding machine Application:

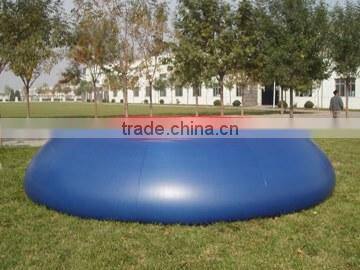

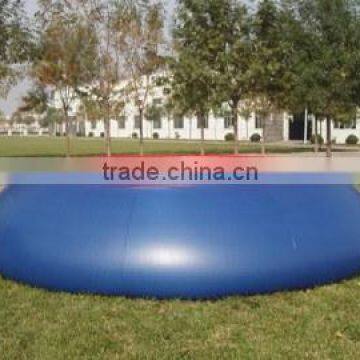

Automobile canvas, canvas, tent cloth, canvas, computer advertising membrane structure, running belt,oil boom, banner and so on welding connection.
2. High frequencywelding machine Advantage:
a) Continuous splicing and welding
b) Enlarge the sapce to stock more canvas
c) Auto grounding device, convenient operation, max pretection
d) Suit for many canvas materials
3. High frequency welding machine specification:
Model |
JZ5-1-5KW |
JZ5-1-8KW |
JZ5-1-12KW |
Output power |
5KW |
8KW |
12KW |
Voltage |
380v |
380v |
380v |
Frequency |
27.12MHZ |
27.12MHZ |
27.12MHZ |
Electron tube |
7T85 |
7T69 |
E3130 |
Max. pressure |
350kgs |
500kgs |
800kgs |
Distance of electrodes |
150mm |
150mm |
150mm |
Horn route |
100mm |
100mm |
100mm |
upper electrode |
720mm |
1,000mm |
1,350mm |
lower electrode |
730 x350mm |
1,100 x350mm |
1,370 x350mm |
welding time |
0-10s |
0-10s |
0-10s |
G.W. |
520kgs |
630kgs |
780kgs |
Packing Size(mm) |
1,180x800x1,920mm |
1,260x1,180x1,920mm |
1,420x1,260x1,920mm |
Our company:

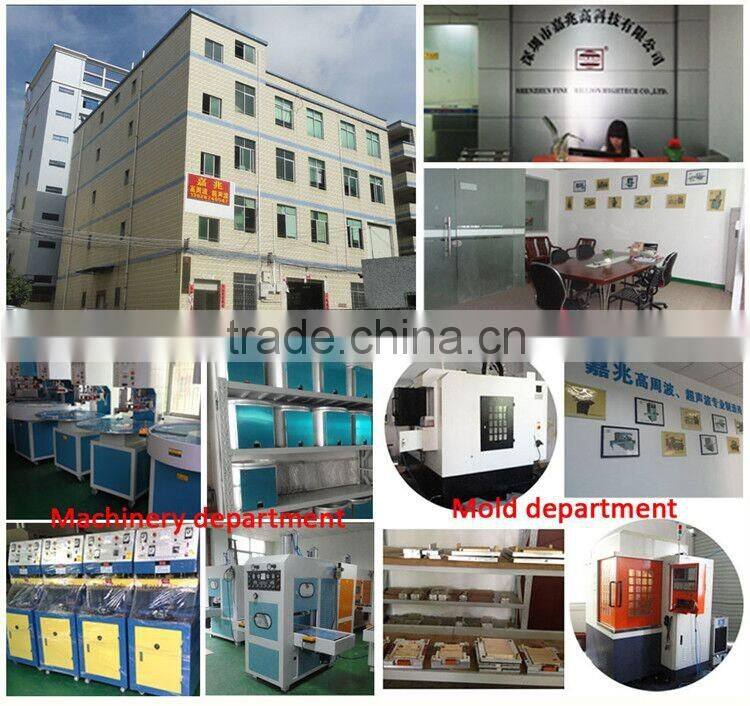

Shenzhen Jiazhao High-Tech Co., Ltd. is a professional company engaged in the research, development and manufacture of high-frequency, ultrasound plastic welding equipment and related components and material.
Shenzhen Jiazhao has been committed to the development and application of high-frequency ultrasound technology for more than ten years. We provide high-quality industrial equipment.
Products: high-frequency plastic welding machine/fusing machine, heat sealing machine, embossing machine, all kinds of blister packaging sealing machines, high frequency machine, high-power ultrasonic plastic welding machine, ultrasonic welding machine, ultrasonic machinery, non-standard ultrasonic machine, bag making machine, forming machine, packaging line, high frequency mold, ultrasonic mold, sculpture, mold, bakelite mold, high frequency blister packing machine, electronic product packaging machine, toothbrush packaging machine, battery packing machine, stationery packing machine, raincoat, umbrella, plastic welder, canvas cloth/membrane/plastics/tent/oil boom welding machine, heat-sealing machine, leather/class/shoes/cloth carpet surface embossing machine, PVC plastic bags/envelope/packaging/organ bag making machine, non-woven fabric bag making machine, hot water bag making equipment, tablet computer, mobile phone holster machine, medical bag heat-sealing machine, automobile air conditioning filter/visor/door plank heat-sealing machine, gantry type high-power high-frequency machine, continuous type blister packaging machine, etc.
Our products enjoy customers' favor. We offer custom services to provide customers with the most suitable products. Your recognition is our motivation.
We promise that any of your inquiries will be responded in the fastest way, don't hesitate to get in touch with our sales.
1. Providing professional technical support.
2. Send the product catalogue and instruction manual.
3. If you have any questions, please contact us online or send us email, we promise we will response you at the first time!
4. We provide you with one year warranty and life long maintenance.
5. 24 hours online telephone service.
6. A large stock of components and parts, easily-worn parts.
