Environmental friendly Coal Briquettes machine / Coal Briquette Making Machine / Coal Briquette Press Machine
- 200 Set / Sets per Month
- Qingdao Shanghai Guangdong or other inland custom ports
- T/T Credit Card PayPal
- Pressing Ball Machine(86-15978436639)
- Charcoal Powder Press Ball Machine(0086-15978436639)
- Ball Pressing Maker Machine(86-15978436639)
- How Do You Make Charcoal Balls(0086-15978436639)
- Briquetting Plant Cost(86-15978436639)
- Production of Briquttes Briquetting Machine with a Capacity of 2t/h(86-15978436639)
Product Details
Condition: | New | Production Capacity: | 2-70t/h | Motor Type: | AC Motor |
Power(W): | Varies from machines to machines | Place of Origin: | Henan, China | Brand Name: | Weilite |
Model Number: | WLXM Series | Dimension(L*W*H): | Varies from machines to machines | Certification: | ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

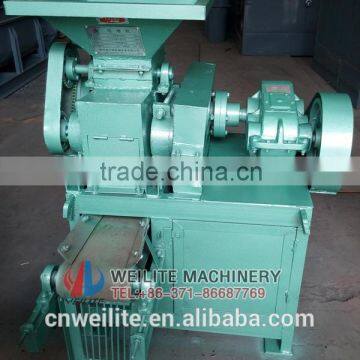

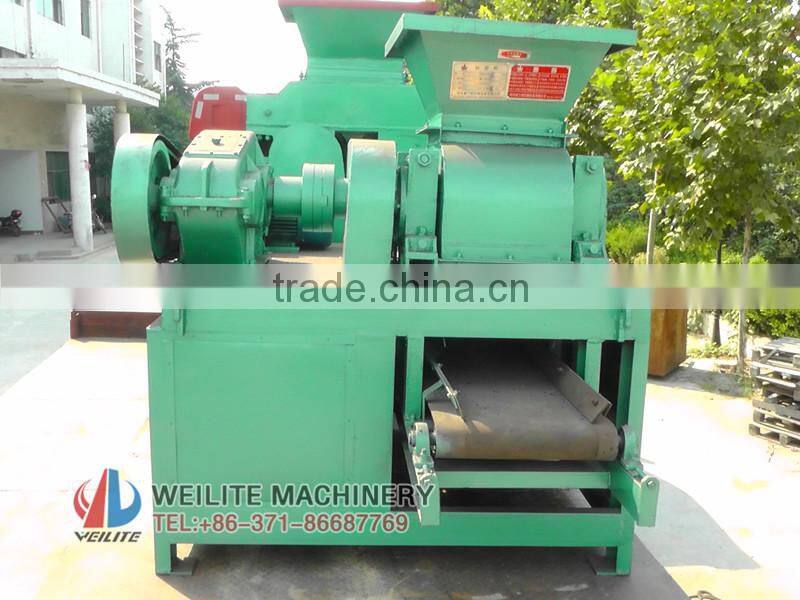

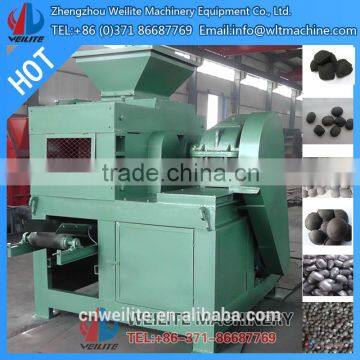

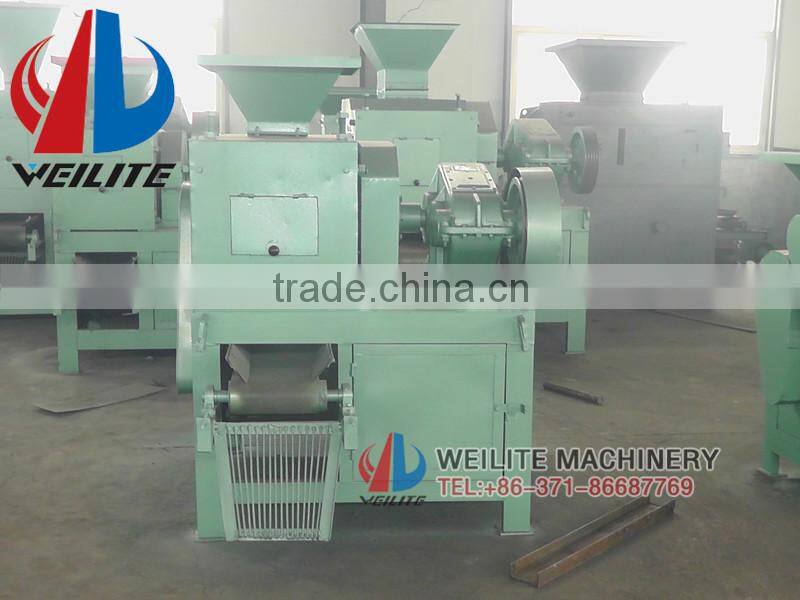

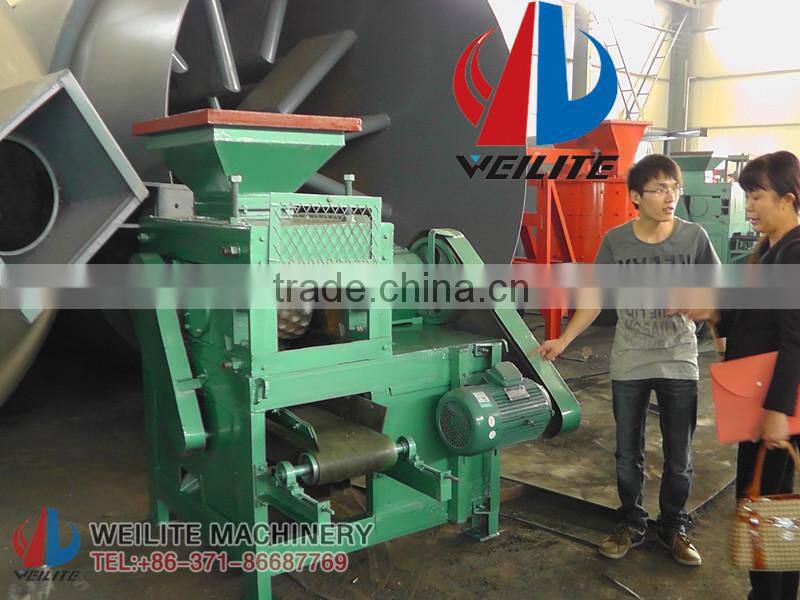

Coal Briquette Making Machine
1. Company Profile
We Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery in China. Our main products are crusher, grinding mill, dryer, briquetting machine and so on. All of them are ISO9001:2000 confirmed. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
2. Product Description of Coal Briquette Making Machine

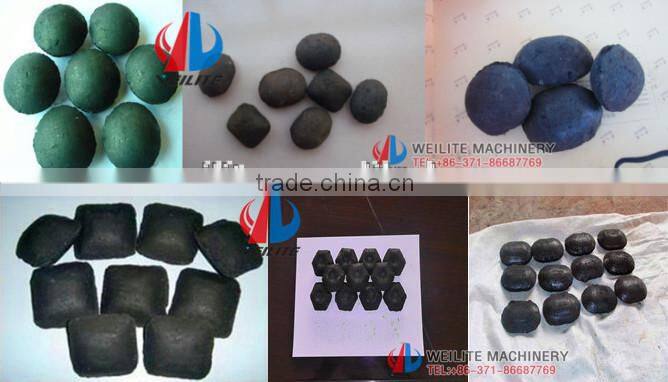

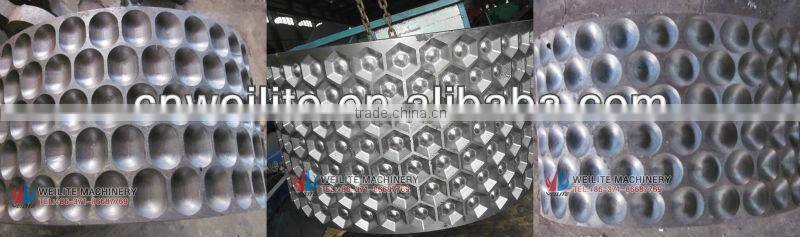

- Coal Briquette Making Machine is used in producing different shape briquettes. The shape mould have oval, square, cubic, round, hollow, plum blossom.
- Dirt, coal, gypsum powder, metal chips, coke fines, charcoal powder, carbon black, iron ore fine, mill scale and mineral powder, waste metal powder, and refractory material etc. this is material of dirt briquette machine.
- Coal Briquette Making Machine is used to make raw material through mixing and pressing, in this process, we can adjust briquettes diameter and change different mould.
3. Working Principle of Coal Briquette Making Machine

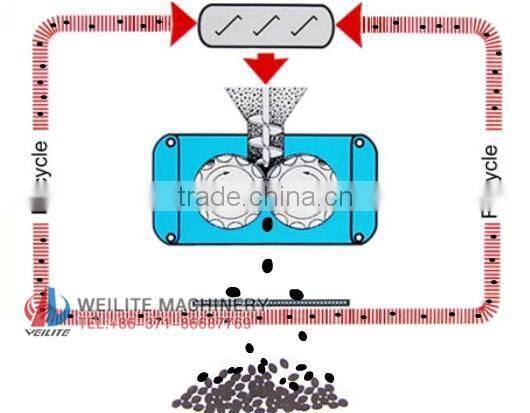

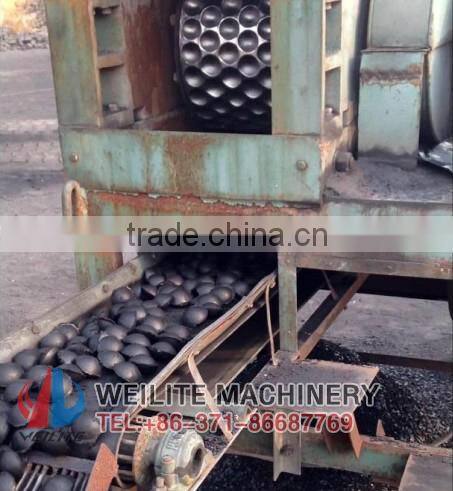

Coal Briquette Making Machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product.
4. Features of Coal Briquette Making Machine
- high degree of compression
- high briquette output
- comfortable silent running
- low maintenance expenses
6. Main Data of Coal Briquette Making Machine
Model | WLXM- 360 | WLXM- 400 | WLXM- 500 | WLXM- 650 | WLXM- 750 | WLXM- 850 | WLXM- 1250 |
Capacity(t/h) | 2-4 | 6-8 | 8-11 | 13-18 | 18-25 | 25-35 | 40-70 |
Pressing roll width(mm) | 250 | 280 | 300 | 336 | 400 | 500 | 650 |
Pressing roll diameter(mm) | 360 | 400 | 500 | 650 | 750 | 850 | 1250 |
Motor power(KW) | 7.5 | 11-15 | 18.5-22 | 20-30 | 45 | 75 | 130 |
Speed(r/min) | 18 | 15 | 13 | 13 | 13 | 10 | 10 |
Reduction gear | ZQ350 | ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | ZQ1250 |
Sphere size | Custom-made (Commonly used 30mm-60mm) |

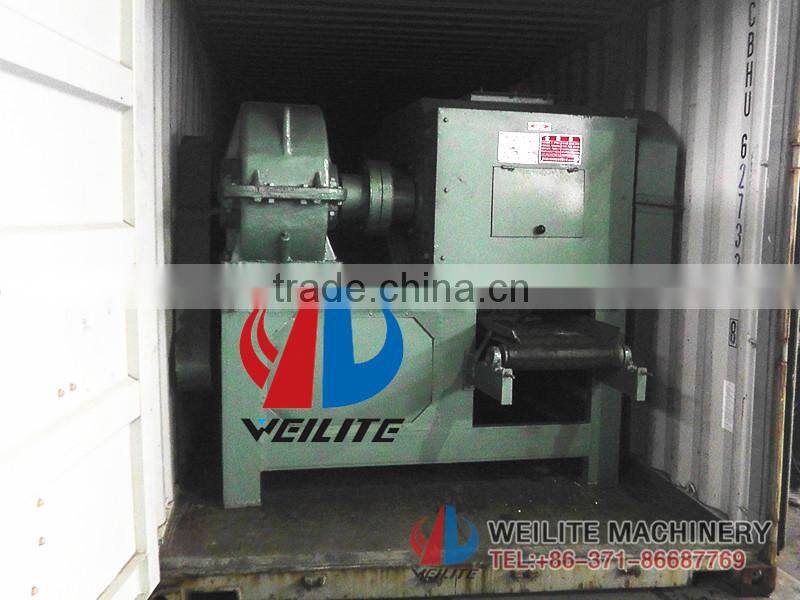

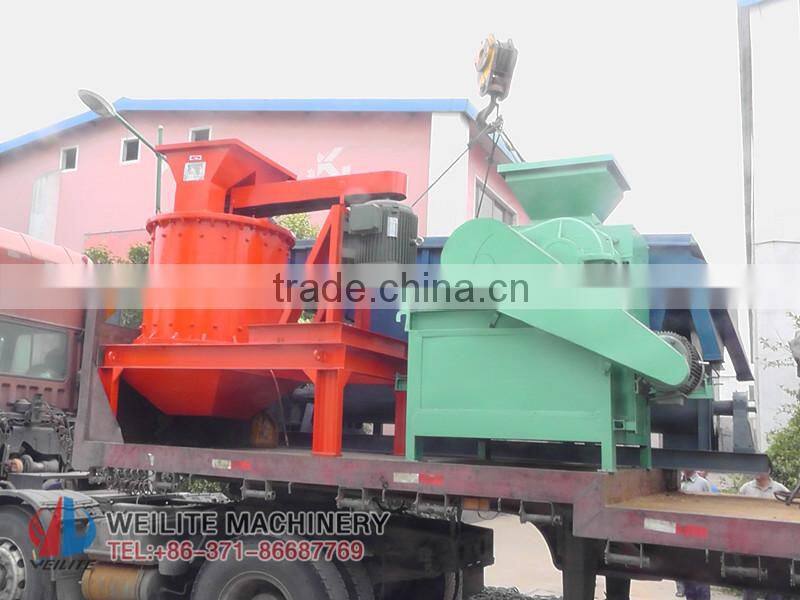

1.standard containers
2.bare main machine
3.motors and small parts are packed in wooden cases
4.or as your requirement
7. Main Markets
The machine has a good selling in India, Bangladesh, Greece, the United States, Pakistan, Philippines, Britain, Iran, Malaysia etc.
8. Our Service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
1. How much is the raw material moisture to shape right ? What is the special requirement for raw material?
- The moisture of raw material general control in 8% to 12%. The diameter of the raw material must be smaller than 5 mm.
2. What are the specifications of finished briquettes?
- According to the needs of customers, we can manufacture different specifications of the mold.
3. Whether you need drying after forming briquettes?
- You should better dry the finished briquettes. Drying methods usually use mesh belt dryer for drying.
Contact Information
- Contact person: Shayne Wang
- Tel:+86 (0)371 86687769
- Skype:shaynewang123
- Website: /
Note:
the following information pls let me know, so that the most suitable type of machine will be offered to you.
1. raw material;
2. input size;
3. output size;
4. processing capacity.
