35A Electrical Ceramic Plug Connector With 6mm Plug Core

35A Electrical Ceramic Plug Connector With 6mm Plug Core thumbnail-1
35A Electrical Ceramic Plug Connector With 6mm Plug Core thumbnail-2
35A Electrical Ceramic Plug Connector With 6mm Plug Core thumbnail-3
35A Electrical Ceramic Plug Connector With 6mm Plug Core thumbnail-4
35A Electrical Ceramic Plug Connector With 6mm Plug Core thumbnail-5
35A Electrical Ceramic Plug Connector With 6mm Plug Core thumbnail-6
35A Electrical Ceramic Plug Connector With 6mm Plug Core photo-1
35A Electrical Ceramic Plug Connector With 6mm Plug Core photo-2
35A Electrical Ceramic Plug Connector With 6mm Plug Core photo-3
35A Electrical Ceramic Plug Connector With 6mm Plug Core photo-4
35A Electrical Ceramic Plug Connector With 6mm Plug Core photo-5
35A Electrical Ceramic Plug Connector With 6mm Plug Core photo-6
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
HEATFOUNDER
Model Number:
T727,T728,T727D,GJ-6,etc.
Contact Supplier Request Quote Chat Now
Shanghai Zhengxi Ceramics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name HEATFOUNDER
Model Number T727,T728,T727D,GJ-6,etc.
Type Electrical Plug
Grounding Standard Grounding
Rated Voltage 220v-600v
Rated Current 35A
Application Industrial
Product Description
35A Electrical ceramic plug connector  with 6mm plug core

1. we can produce all kinds of plugs .

2. we can offer high-temperature plug , ceramic plug , heater plugs , electric plug , furnace plug , power plug , aluminum plug , bakelite plug ,electric heating coil plug , electric ring plug , 25AT727 plug , 25AT728 plug , 35AT727 plug , 35AT728 plug ,  silicon electrical Plug .

3 . OEM

4.  samples days : 7--10 days

5.  delivery days : 15--25 days

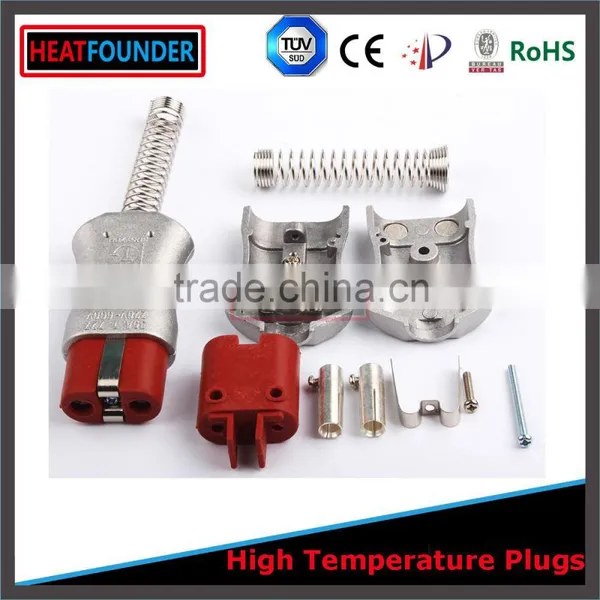

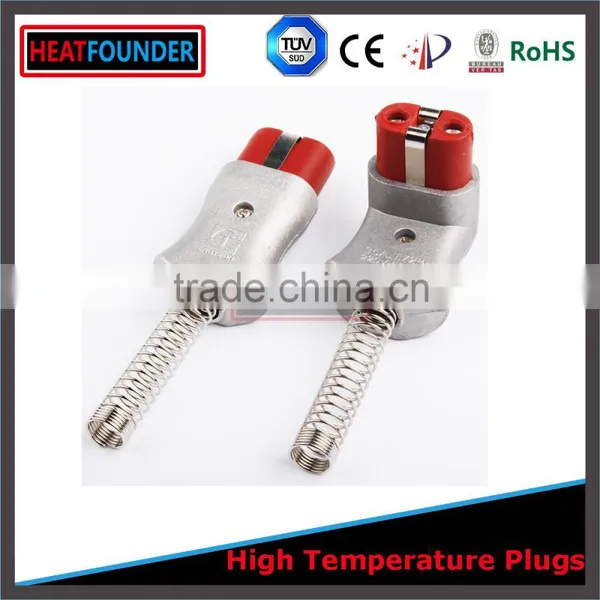

High-temperature plug is made of copper and ceramic as conductor ; jacked with metal aluminum or silicon rubber.

jacked with metal aluminum alloy one could stand high-temperature 500 degree. and the standard voltage is 220V to 600V the diameter could be 5mm and 6mm

jacked with silicon rubber one is acid,alkali and protected-broken.It could stand high temperature 200 degree and high-voltage 220V to 600V

It could be a conntor below 300 degree temperature.



Model Shape   Material
T727-1 straight   ceramic,aluminum
T728-3 90°angle   ceramic,aluminum
T727D straight   alumimum,silicone
T728D 90°angle   alumimum,silicone
T729D 90°angle   alumimum,silicone
GJ-6 straight   silicone
GJW-6 90°angle   silicone
QGJ-11 straight   silicone
QGJW-12 90°angle   silicone



Models of our plugs

 35A Electrical ceramic plug connector with 6mm plug core

Product show

 35A Electrical ceramic plug connector with 6mm plug core35A Electrical ceramic plug connector with 6mm plug core35A Electrical ceramic plug connector with 6mm plug core35A Electrical ceramic plug connector with 6mm plug core35A Electrical ceramic plug connector with 6mm plug core

Certifications



Packaging & Shipping

 35A Electrical ceramic plug connector with 6mm plug core
