Home > Products > LED Panel light > high lumen epistar smd 6500k white 45w square flat 120x30 led panel 230v

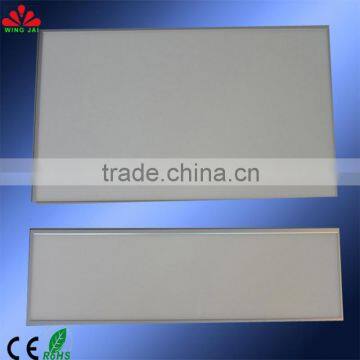

high lumen epistar smd 6500k white 45w square flat 120x30 led panel 230v

FOB Price

USD $5 - $10 / Piece

1 Piece(Min.Order)

Product Details

LED Light Source:	Epistar 2835SMD	Warranty(Years):	3	Input Voltage(V):	AC85V-265V
Lamp Power(W):	45	Lamp Luminous Flux(lm):	3350lm±10%	Lamp Luminous Efficiency(lm/w):	80
Color Temperature(CCT):	Other, Cool white/pure white/warm white	Working Temperature(℃):	-25, +50	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	IP44	Certification:	CE
Place of Origin:	Guangdong, China	Brand Name:	WING JAI	Model Number:	WJ-PL30120-45W

1.Imported Light Guide plate whose light transmission rate at 80% to assure

High brightness possibly.

2. Aluminum huousing with excellent thermal efficiencies.

3. 36W LED Panel light can achieve directional light output equal to traditional

72W grid lamp.

4. Good circuit design make sure that other LED still work usually even if one

of LED is damaged.

5. Super slim design,11mm thickness,fashion and good looking.

6. 3 Years limited warranty.

7. No UV or IR Light radiation.

8. Safety Standard: CE&ROHS and FCC.

9. Woks with worldwide electrical systems .

Model NO		WJ-PL30120-45W
Power		45W
Input volt		AC85-265V
Frequency		50Hz-60Hz
PF		≥0.95
Working volt		AC85V-AC265V
LED QTY		216pcs SMD 2835
LED Brand		Epistar/San An
LED Power		43.5W
LED Light efficency		75~80lm/W
Lumens	Warm white	3200-3400lm
	Pure white	3500-3600lm
	Natural White	3500-3600lm
Luminous efficency		>93%
Color temperature	Warm white	2800K-3200K
	Pure white	4000K-4500K
	Natural White	6000K-6500K
CRI(Ra)	Warm white	>68
	Pure white	>80
	Natural White	>75
Beam angle		120°
Environment temperature		-10℃to+40℃
Storage temperature		-25℃~65℃ (25℃ best)
Lifespan		50000 h
Frame material		Aluminum alloy
Size		*295119511mm*
Net weight		4.7kg
Installation		recessed/surface mounted/suspended
Waterproof		IP42
Certificates		CE, RoHS FCC

Model NO	SIZE	QTY/CN	carton size	GW/CN	Qty for 20 Container
WJ-PL3030-12W	*30030011mm*	10	*435368410mm*	11KG	3650
WJ-PL3030-18W	*30030011mm*	10	*435368410mm*	11KG	3650
WJ-PL3060-18W	*30060011mm*	5	*697360225mm*	14KG	2125
WJ-PL3060-27W	*30060011mm*	5	*697360225mm*	14KG	2125
WJ-PL30120-36W	*300120011mm*	4	*1290390190mm*	24.5KG	1120
WJ-PL30120-45W	*300120011mm*	4	*1290390190mm*	24.5KG	1120
WJ-PL30120-54W	*300120011mm*	4	*1290390190mm*	24.5KG	1120
WJ-PL30120-60W	*300120011mm*	4	*1290390190mm*	24.5KG	1120
Remark:20" container's inner volume is 24CBM
