Help CenterSemi Automatic Paper Plastic Laminating Machine
Related Products
-
Pvc Flooring Car Mat MachineUS$ 80,000 - 250,000MOQ: 1 Set -
PVC Car Floor Mat Making Machine ManufactureUS$ 80,000 - 250,000MOQ: 1 Set
-
Car Mats TPU Film Laminating MachineryUS$ 80,000 - 250,000MOQ: 1 Set
-
Plastic Coating Machine for Car Floor MatUS$ 100,000 - 250,000MOQ: 1 Set
-
Plastic Laminating Machine for Car MatUS$ 80,000 - 250,000MOQ: 1 Set

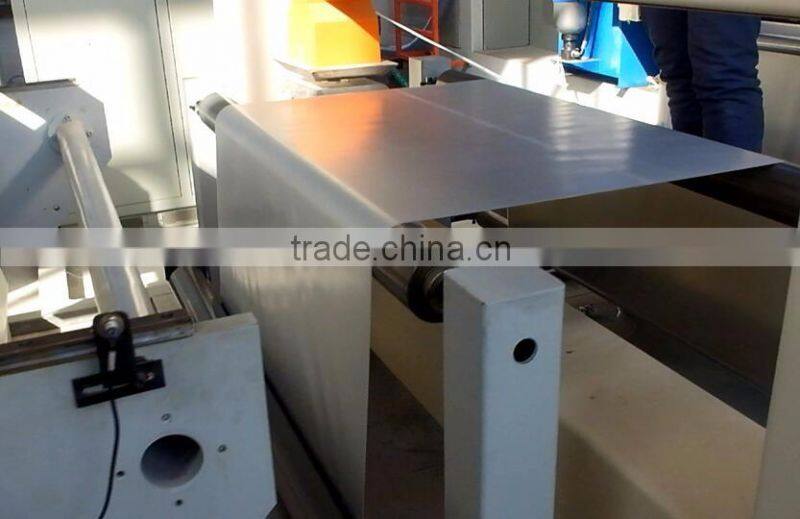

Paper plastic laminating machine
Paper plastic laminating machine
Paper plastic laminating machine
Technical Specifications of Paper plastic laminating machine
| Paper plastic laminating machine |
Techniacal specification |
| Laminate Width | 800~1200mm |
| Maximum Mechanical Speed | 150m/min |
| Extruder Motor | 47~75kw |
| Extruder | HL-90 or HL-100 |
| Maximum Extrusion Output | 260kg/h |
| Resin | LDPE, PP, EVA,LLDPE |
| Laminating Thickness | 0.012-0.07mm |
| Thickness Uniformity | ≤±5% |
| Maximum Diameter of Unwound Roll | 800mm |
| Substrate |
BOPP, BOPET, BOPA, CPE, CPP, thin paper (50~300g/m2) |
| Drying |
Gloss roller, floor-standing or horizontal drying oven |
| Tension Control |
Automatic tension control |
| Control Method |
Imported PLC system, human-machine interface |
| Drive |
AC digital vector control (variable frequency drive) |

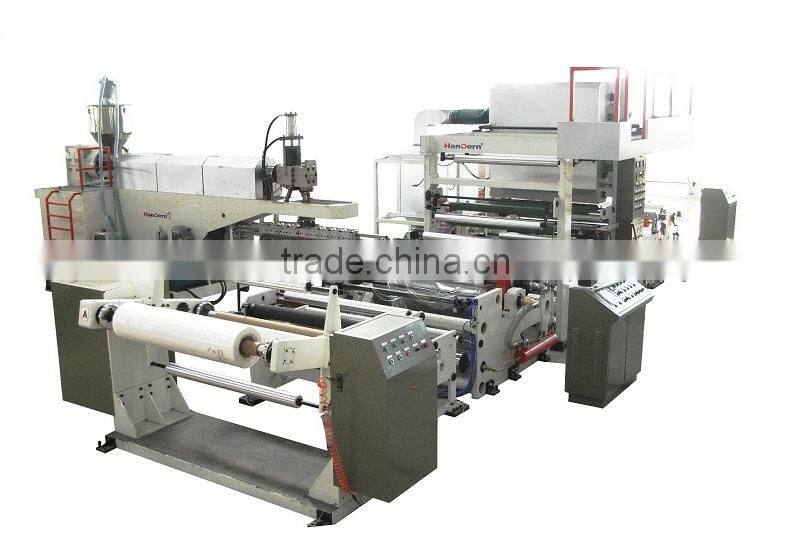

Components of Paper plastic laminating machine
1.the unwinding unit
ating unit
3.drying unit
4.lamination unit
5.auxiliary unwinding unit
6.extrusion die
7.winding unit
ntrol unit

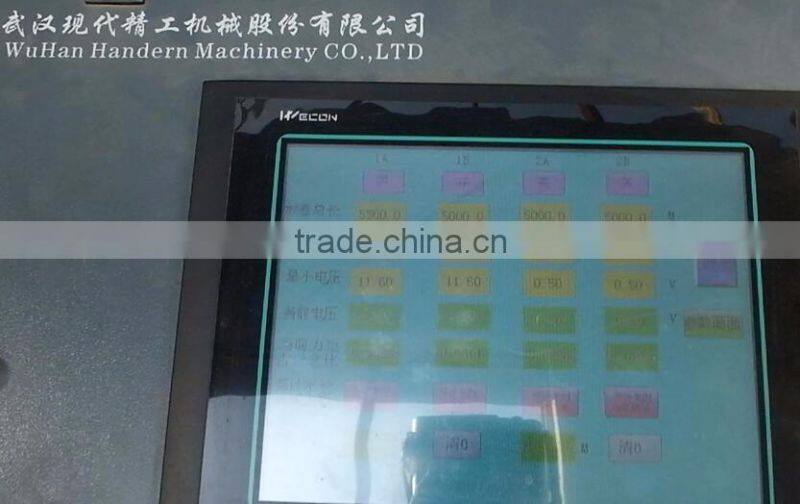

Fully computer control ensures high production efficiency and extrusion lamination quality.
Paper plastic laminating machine
Paper plastic laminating machine
Paper plastic laminating machine
Process of Paper plastic laminating machine
1)the thermoplastic resin is heated to temperature above the melting point.
2)the molten plastics are pushed through an extrusion die to form a thin hot film
3)laminating the film over a kind of pre-coated base material.
The resultant laminate is totally odorless.
Raw resin of Automatic Thermal Laminating Machine:LDPE, LLDPE, EVA, EAA, and other laminating resin.
The substrate wound onto the primary unwinding roller:usually BOPP (15-60um) or BOPET (12-50um).
Applications of Paper plastic laminating machine
Paper: Kraft paper, air-laid paper, and cardboard lamination to produce book packaging, snack packaging, duct tape for trash bag;
BOPP, BOPET, BOPA, and other plastic film lamination;
Non-woven fabric lamination, PE, PP stretch film extrusion lamination;
Aluminum foil and PE stretch film lamination;
Wooden case is available for Paper plastic laminating machine
Supply the complete drawings for installing the machine and send one or two technicians to buyerto install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.The buyer should prepare all the condition such as water, workspace, power, air, etc, according t the using condition of the machine, before our engineers arrival.
Quality Control of Paper plastic laminating machine
