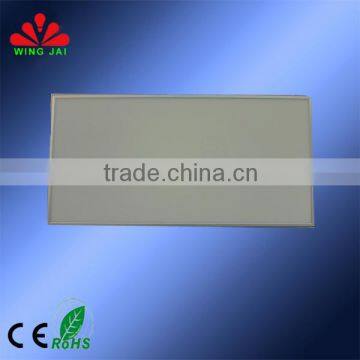

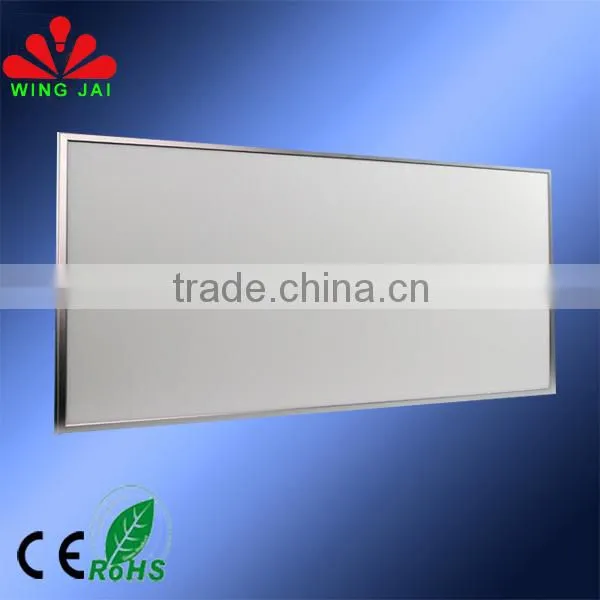

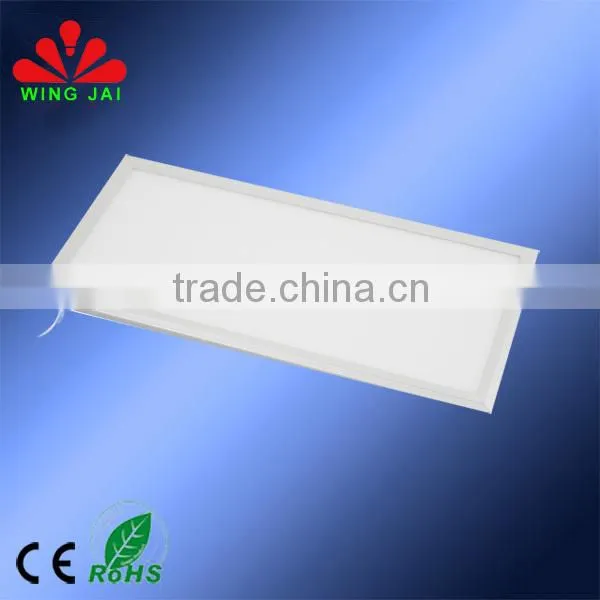

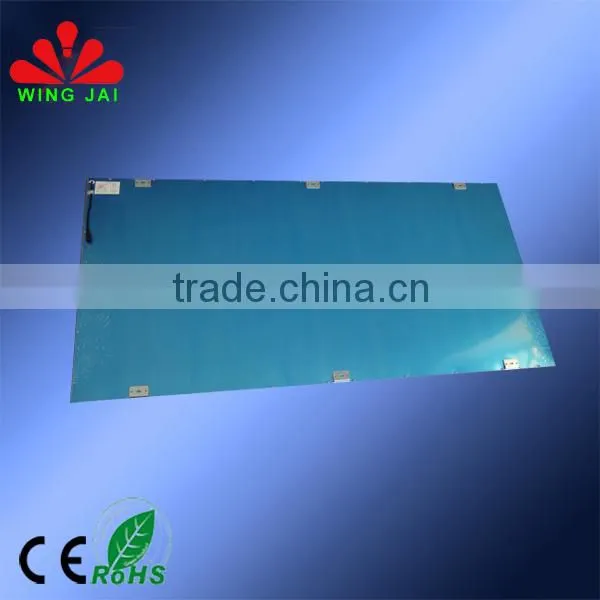

2015 Best quality warranty 3 years CE ROHS approved 54w 120x60cm led panel light factory

FOB Price

USD $5 - $10 / Piece

1 Piece(Min.Order)

Product Details

LED Light Source:	Epistar 2835SMD	Warranty(Years):	3	Input Voltage(V):	AC85V-265V
Lamp Power(W):	54	Lamp Luminous Flux(lm):	4000lm±10%	Lamp Luminous Efficiency(lm/w):	80
Color Temperature(CCT):	Other, Cool white/pure white/warm white	Working Temperature(℃):	-25, +50	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	IP65	Certification:	CE
Place of Origin:	Guangdong, China	Brand Name:	WING JAI	Model Number:	WJ-PL60120-54W

1.Imported Light Guide plate whose light transmission rate at 80% to assure

High brightness possibly.

2. Aluminum huousing with excellent thermal efficiencies.

3. 36W LED Panel light can achieve directional light output equal to traditional

72W grid lamp.

4. Good circuit design make sure that other LED still work usually even if one

of LED is damaged.

5. Super slim design,11mm thickness,fashion and good looking.

6. 3 Years limited warranty.

7. No UV or IR Light radiation.

8. Safety Standard: CE&ROHS and FCC.

9. Woks with worldwide electrical systems .

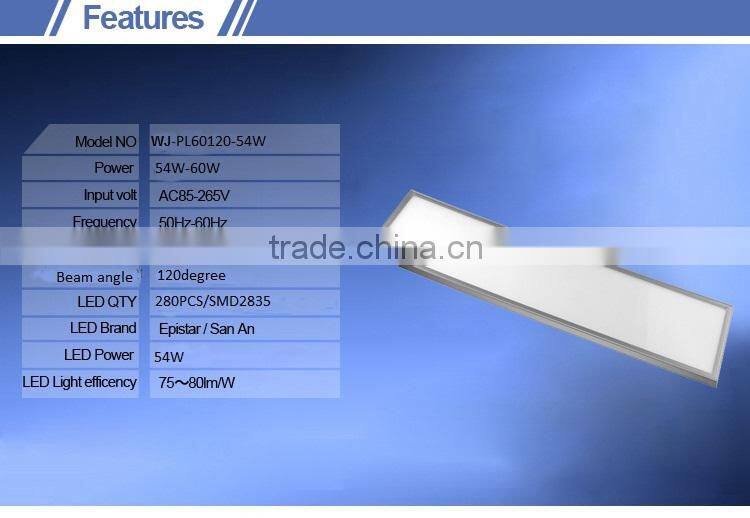

Model NO		WJ-PL60120-54W
Power		54W-60W
Input volt		AC85-265V
Frequency		50Hz-60Hz
PF		≥0.95
Working volt		AC85V-AC265V
LED QTY		280pcs SMD 2835
LED Brand		Epistar
LED Power		56 W
LED Light efficency		75~80lm/W
Lumens	Warm white	4400-4500lm
	Natural white	4600-4800lm
	Cool white	4600-4800lm
Luminous efficency		>93%
Color temperature	Warm white	2800K-3200K
	Natural white	4000K-4500K
	Cool white	6000K-6500K
CRI(Ra)	Warm white	>68
	Natural white	>80
	Cool white	>75
Beam angle		120°
Environment temperature		-10℃to+40℃
Storage temperature		-25℃~65℃ (25℃ best)
Lifespan		50000 h
Frame material		Aluminum alloy

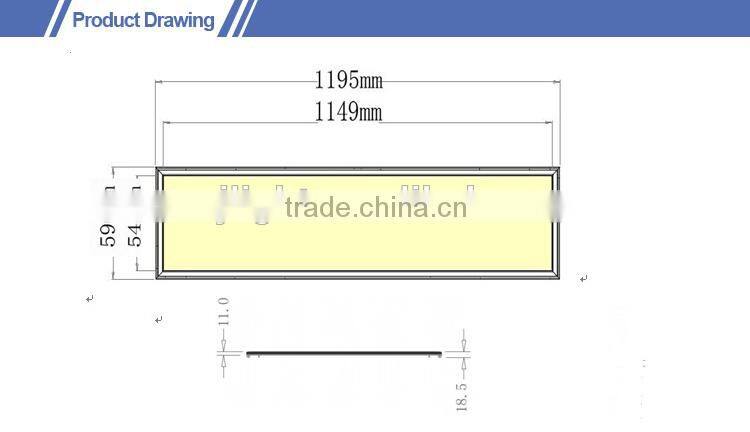

Size		*595119511mm*
Net weight		9.8kg
Installation		Recessed/Surface mounted/suspended
Waterproof		IP42
Certificates		CE, RoHS FCC

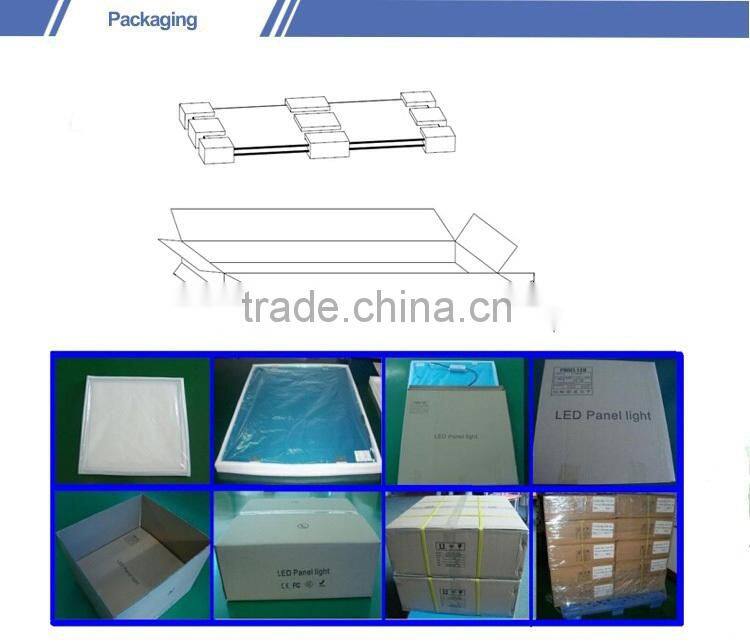

Model NO	SIZE	QTY/CN	carton size	GW/CN	Qty for 20 Container
WJ-PL6060-36W	*60060011mm*	6	*700300700mm*	26KG	1248
WJ-PL6060-42W	*60060011mm*	6	*700300700mm*	26KG	1248
WJ-PL6060-45W	*60060011mm*	6	*700300700mm*	26KG	1248
WJ-PL6060-54W	*60060011mm*	6	*700300700mm*	26KG	1248
WJ-PL60120-54W	*600120011mm*	2	*1300700105mm*	20.5KG	458
WJ-PL60120-72W	*600120011mm*	2	*1300700105mm*	20.5KG	458
Remark:20" container's inner volume is 24CBM

Shenzhen Wing Jai Lighting Co., Ltd.: Contact nameJulia Dong; Phone86-755-29971504; Address2/F,13/B,Area 1, XinXing Industrial Zone,FuHai Ave,Fuyong Town,BaoAn District,Shenzhen,China. Shenzhen,Guangdong
