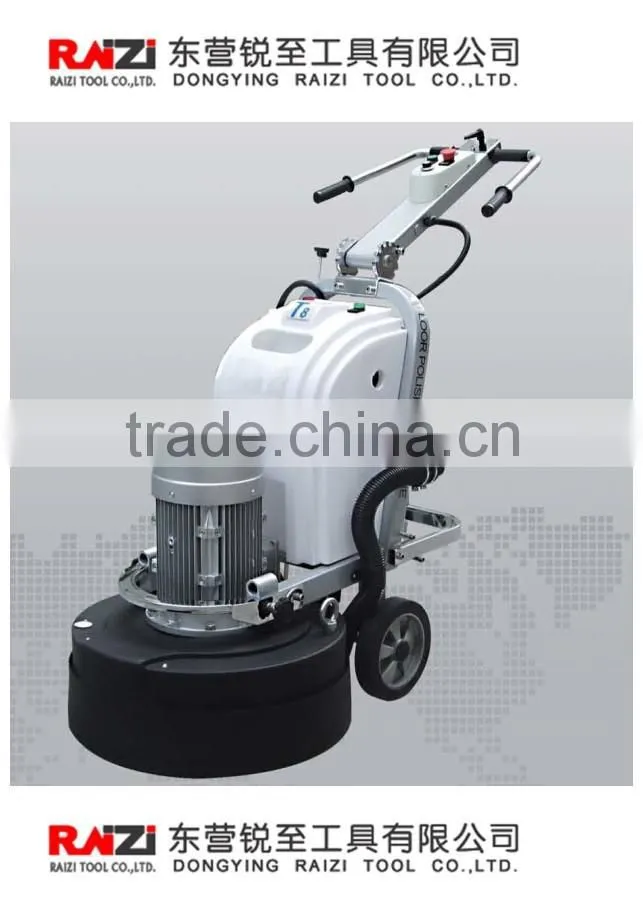

planetary concrete floor grinder with concrete polishing pad
Technical Parameter:
| Model | A1 | A2 | B1 | B2 |
| Voltage | 380-440V | 220-240V | 380-440V | 220-240V |
| Current | 24A | 40A | 24A | 40A |
| Motor | 10HP(7.5KW) | 10HP(7.5KW) | 10HP(7.5KW) | 10HP(7.5KW) |
| Inverter | 10HP(7.5KW) | 10HP(7.5KW) | 15HP(11KW) | 15HP(11KW) |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Disc Speed | 300-1800rpm | 300-1600rpm | 300-1800rpm | 300-1200rpm |
| Grinding Width | 650mm | 650mm | 650mm | 650mm |
| Disc Diameter | 250mm*3 | 250mm*3 | 250mm*4 | 250mm*4 |
| Water-Tank | 30L | 30L | 30L | 30L |
| Weight | 260kg | 260kg | 270kg | 270kg |
| Dimension | 970*650*950 | 970*650*950 | 970*650*950 | 970*650*950 |
Application: Applied to Concrete, Resistant floor, Epoxy, Stone, artificial stone, etc.
Product Description:
1. All-aluminum alloy gearbox and planetary gear driver reach the very good flatness grinding effect, delicate and smooth surface as well as the powerful repairing scratches function.
2. Folding handle and spilt body design is more convenient for worker to carry and transport.
3. The automatic leveling system could reach very good flexibility to evenly touch the floor and perfectly balances the machine.

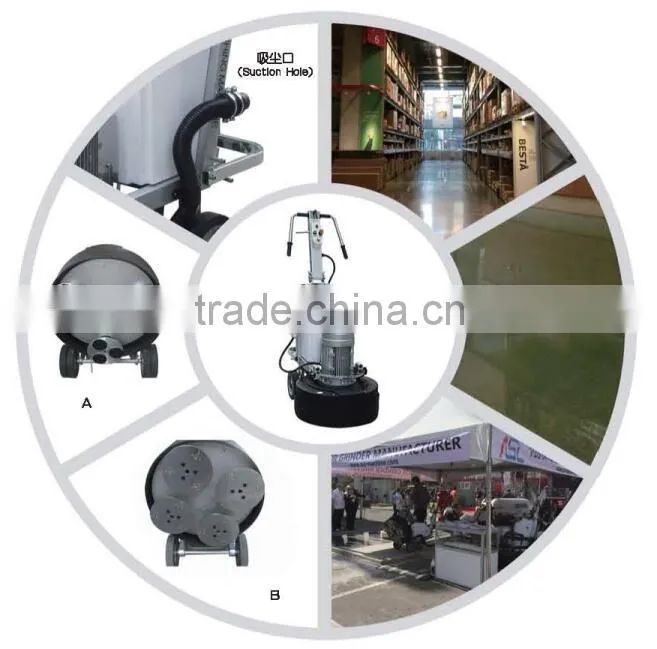

4. Integrated system of the suction port could achieve the wet and dry grinding and polishing.
5. Integrated system of weights is for adjusting the grinding pressure to reduce the loss of the diamond and pads, but also to reduce the carrying burden.
Step 1:

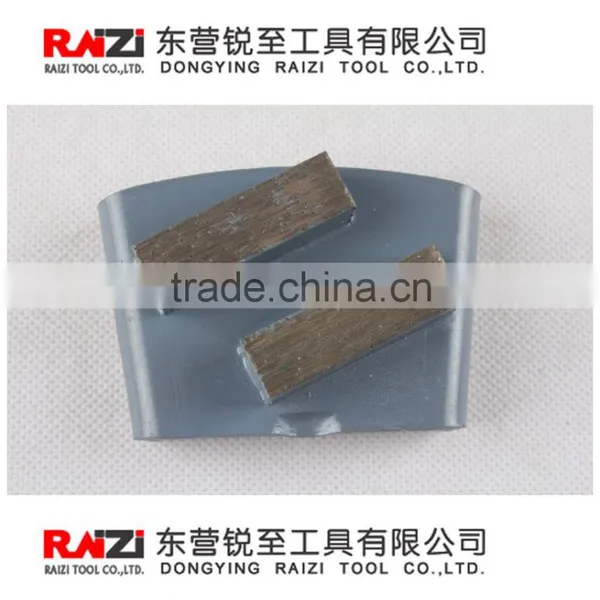

Metal Bond (Open surface of the floor)
800RPM
Step 2:

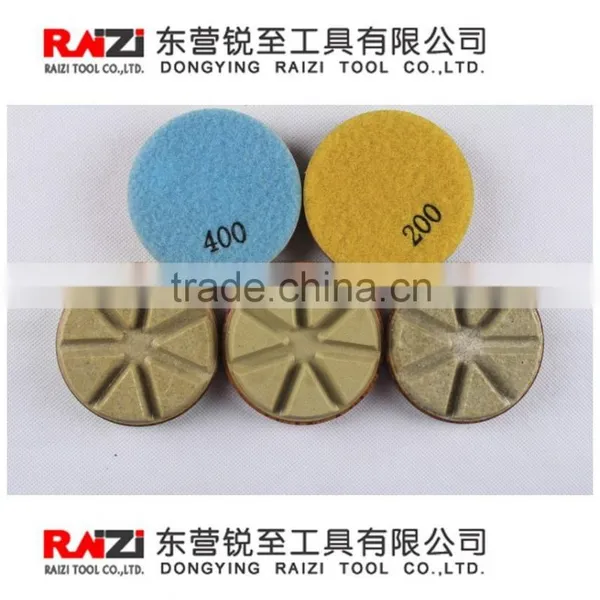

#50 Super True ceramic diamond polishing pad/Dry 800RPM
Function: Mainly used to remove deep scratches left by metal grinding disc.
Features: The pads contain 100% diamonds, held tightly and durably by bonding-agent. The pads which can remove the scratches quickly are the first dry-polishing product and polish more effectively than any metal disc, resin-polishing pads and other bond abrasives in sharpening and flatting in the market. It has set a better foundation for fine concrete floor grinding and polishing in the future.
Step 3:

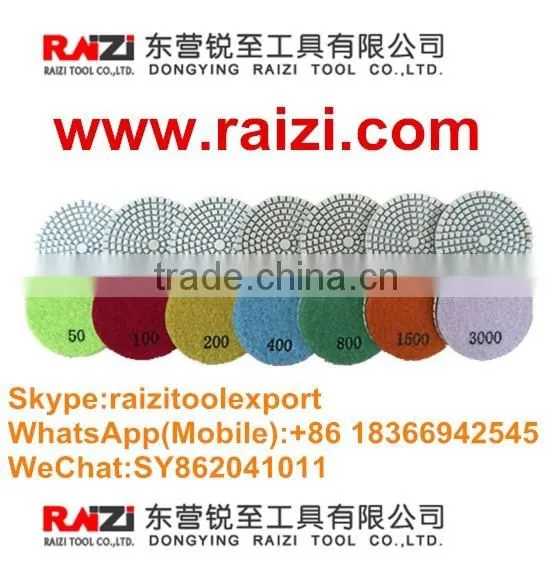

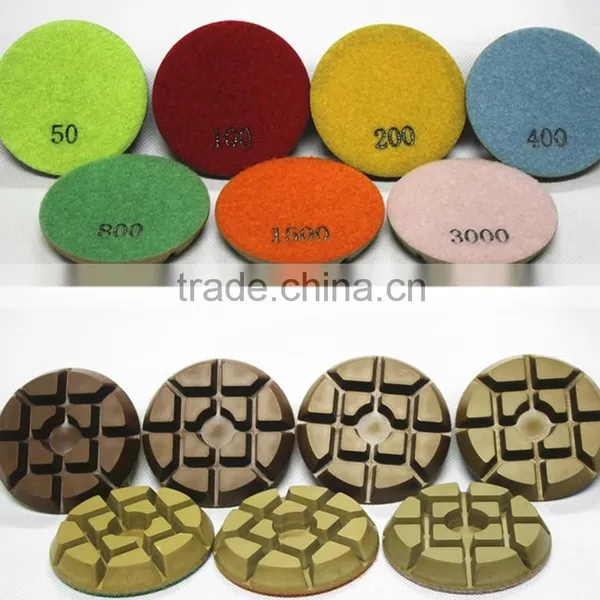

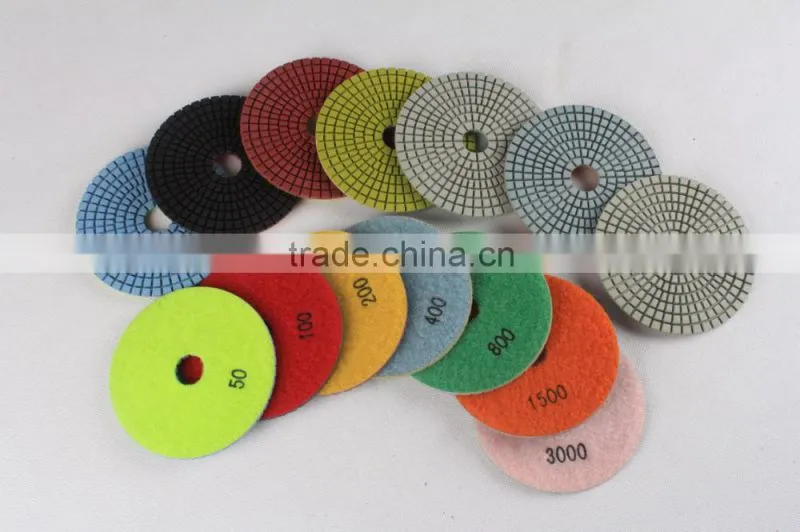

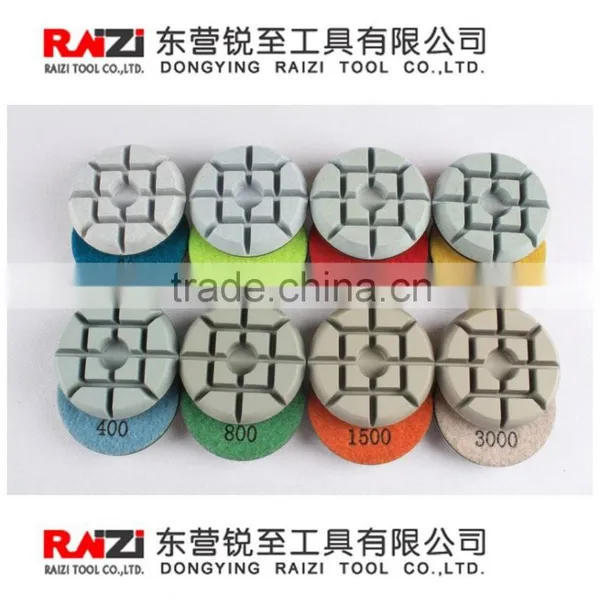

(1) a. Dry diamond polishing pad for concrete floor (resin) 3072
Economy ( 3072)
| Item No. | Description | Thickness(mm) |
| CDFPP3-30 | 3"/80mm concrete dry pad 30# | 10 |
| CDFPP3-50 | 3"/80mm concrete dry pad 50# | 10 |
| CDFPP3-100 | 3"/80mm concrete dry pad 100# | 10 |
| CDFPP3-200 | 3"/80mm concrete dry pad 200# | 10 |
| CDFPP3-400 | 3"/80mm concrete dry pad 400# | 10 |
| CDFPP3-800 | 3"/80mm concrete dry pad 800# | 10 |
| CDFPP3-1500 | 3"/80mm concrete dry pad 1500# | 10 |
| CDFPP3-3000 | 3"/80mm concrete dry pad 3000# | 10 |
b. Thin Dry diamond polishing pad for concrete floor (resin) 3072

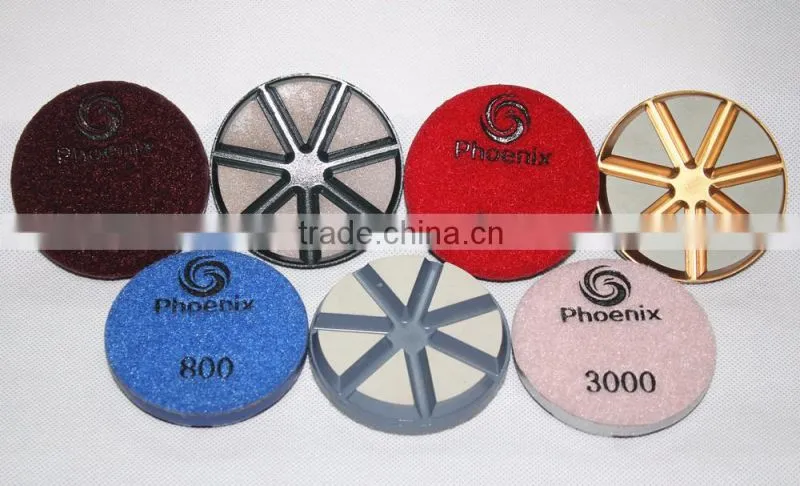

(2) a. New Hybrid Diamond Concrete Floor Polishing Pad
“NHD” Hybrid (Resin+ Metal+ Ceramic) polishing pads are a mixture of metal, ceramic and resin with diamonds. The hybrid polishing pads are designed to cut like a metal bond diamond but lighter scratch pattern on the concrete like resin.
b. "Sharpmaxx" new hybrid concrete floor polishing pad
c. Thin New hybrid flexible concrete pad
(3) High gloss diamond concrete floor resin polishing pad

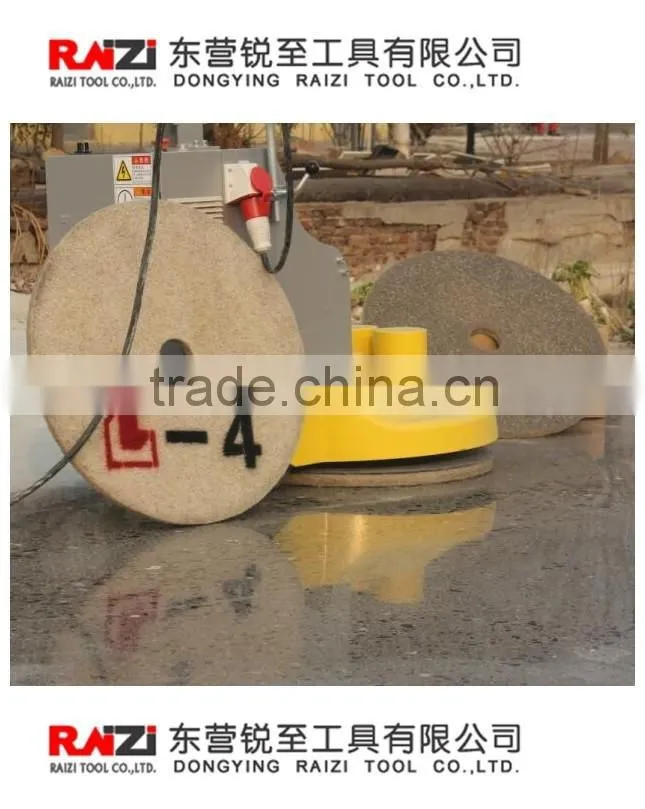

(4) Igloss Floor Burnishing Pad
Packaging: Double layer carton box packaging
Shipping: Within 15&20 days after receipt of payment
Q1: What is your tools positioning?
A1: Our products are positioned medium to high level.
Q2: What are the main application fields of your products?
A2: Widely used in Stone cutting, grinding, profiling, polishing.
Concrete surface preparation, grinding, polishing
Stainless steel finish
Q3: What are the characteristics of the product?
A3: Our main products are:
Electric and pneumatic wet polisher, grinder, sander.
Auxiliary tools for stone installation.
Polishing pads
Stone tools
Concrete tools
Stainless steel finish tools.
Q4: What is the biggest advantage compared to other competitors?
A4: We are one of the earliest domestic wet polisher and tools supplier. We are proud of our wide product range, strict quality control and stable customer relationships.
Q5: What kind of service do you provide?
A5:
Before sale:
Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sale:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q6: What about the payment and delivery time?
A6: Our delivery time is in general.
Payment: Paypal, western union, T/T.
RAIZI TOOL CO.,LTD is specialized in manufacturing and supplying professional power tools, air tools, auxiliary tool in stone, concrete and stainless steel industry. Depending on the professional technology and high sense of responsibility, we can supply the tools of high quality with best service.
After many years of operations, we have garnered widespread customer satisfaction and achieved great success through its reputation for excellence, top-notch quality and impeccable service.
Our products have gone through the certificates issued by professional institute, such as GS, CE and EMC. More than 70% products have been exported to US, European union, Africa and other countries.
Raizi Tool Co.,Ltd.
Add: No.231, Dong 3 Street, Dongying, Shandong, China
http:// Trade Manager: cn209683567
Skype: raizitoolexport WhatsApp(Mobile): +86 18366942545
WeChat: SY862041011
