Help CenterYRT Bearing/YRT Rotary Table Bearing With High Precision YRTS260
Related Products
-
Hot Sell YRT Turntable Bearing With High Precision YRT850US$ 1 - 1,000MOQ: 1 Set -
Hot Sell YRT Turntable Bearing YRT580US$ 1 - 1,000MOQ: 1 Set
-
High Quality YRT Turntable Bearing YRT460 And YRT Rotary Table BearingUS$ 1 - 1,000MOQ: 1 Set
-
YRT Bearing/YRT Rotary Table Bearing With High Precision YRT325US$ 1 - 1,000MOQ: 1 Set
-
YRT Bearing/YRT Rotary Table Bearing With High Precision YRT260US$ 1 - 1,000MOQ: 1 Set
Specifications
RTR YRT Rotary Table Bearing1.Warranty:12months
2.Technical Support
3.OEM service
4.Sample available and fast delivery

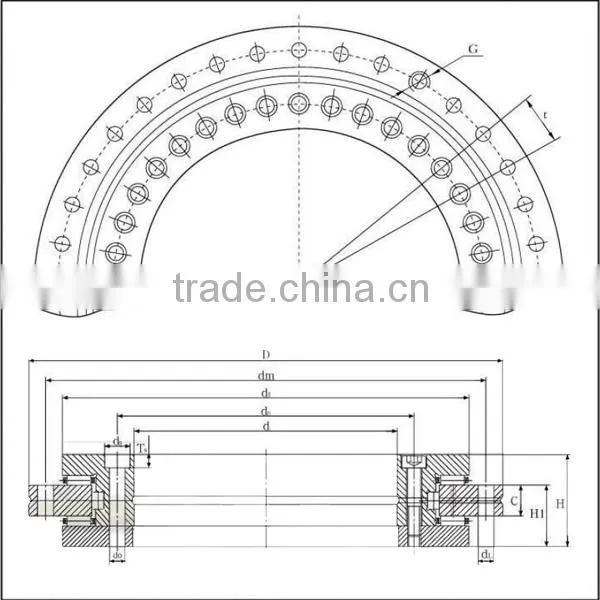

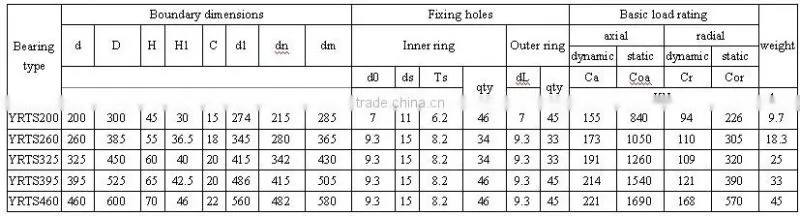

1.RTR YRT Rotary Table Bearing YRTS260

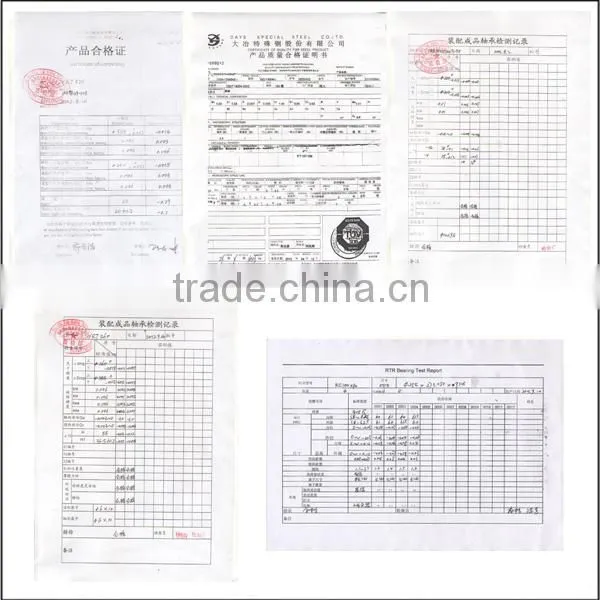

2.RTR YRT Rotary Table bearing Certificate of Inspection
3.Product Maintenance

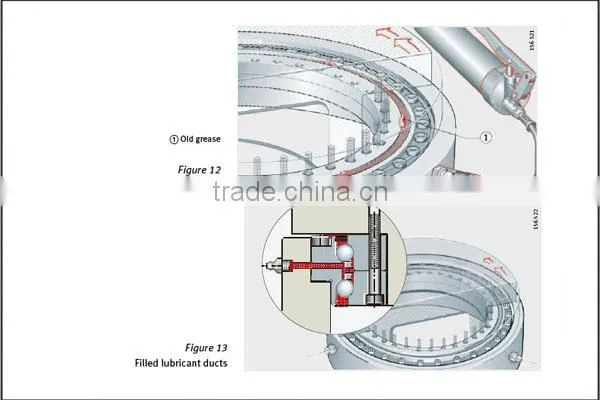

Lubricating the raceway
Bearings YRT(M)and YRTSpeed can be lubricated via the outer ring and inner ring,bearings ZKLDF via the outer ring only.
- Clean the lubrication nipples, clean or replace the lubricant filters.
- Inject grease into all the lubrication nipples until the relubrication quantity is reached,Figure 12
--Rotate one bearing ring(in the direction of the arrow) during this process and ensure that old grease can exit the bearing without hindrance,Figure12.
--Before initial operation,it must be ensured that all the lubricant ducts to the bearing are filled with lubricant,Figure13.

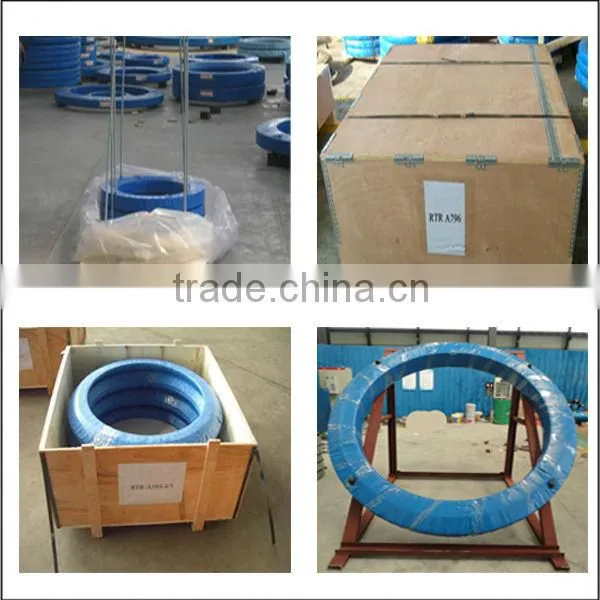

4.RTR YRT Rotary Table Bearing Packaging: inside,outside surface and raceway are spreaded with antirust & lubricate grease.Inner package is made of plastic film,and then compositive kraft,outer package is enlaced with flax pieces.
5.Contact me:
