Specifications
RTR YRT Slewing Bearing1.Warranty:12months
2.Technical Support
3.OEM service
4.Sample available and fast delivery
Precision YRT Slewing Bearing ZKLDF Series
1.RTR YRT Slewing Bearing ZKLDF Series Show
2.RTR YRT Slewing Bearing ZKLDF Series Model: Below please find the reference number of YRT turntable bearing, and click the number to see more details and specifications.
YRT Slewing Bearing ZKLDF series
| ZKLDF100 | ZKLDF120 | ZKLDF150 | ZKLDF200 |
| ZKLDF260 | ZKLDF325 | ZKLDF395 | ZKLDF460 |

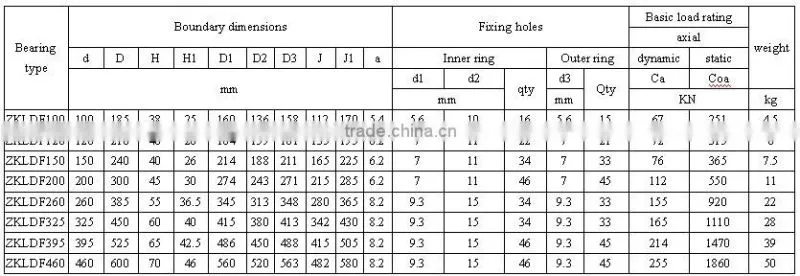

3.RTR YRT Slewing Bearing ZKLDF Series Data

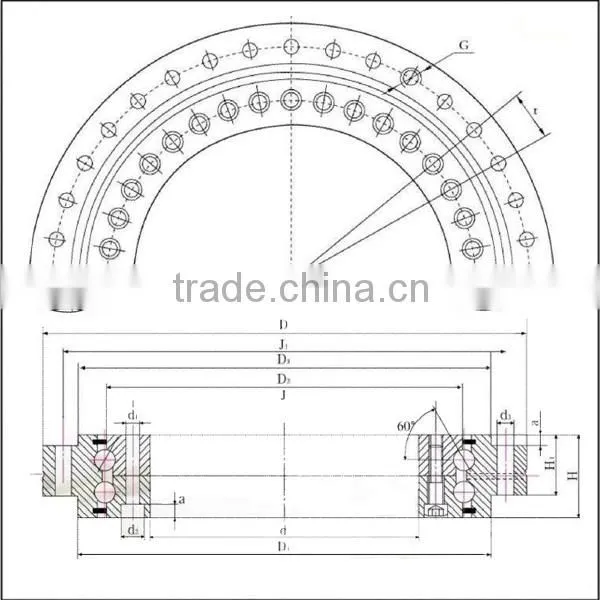

4.RTR YRT Slewing Bearing ZKLDF Series Drawing
5.RTR YRT Slewing Bearing Certificate of Inspection
6.YRT Slewing Bearing Maintenance
Lubricating the raceway
Bearings YRT(M)and YRTSpeed can be lubricated via the outer ring and inner ring,bearings ZKLDF via the outer ring only.
- Clean the lubrication nipples, clean or replace the lubricant filters.
- Inject grease into all the lubrication nipples until the relubrication quantity is reached,Figure 12
--Rotate one bearing ring(in the direction of the arrow) during this process and ensure that old grease can exit the bearing without hindrance,Figure12.
--Before initial operation,it must be ensured that all the lubricant ducts to the bearing are filled with lubricant,Figure13.
7.RTR YRT Slewing Bearing Packaging: inside,outside surface and raceway are spreaded with antirust & lubricate grease.Inner package is made of plastic film,and then compositive kraft,outer package is enlaced with flax pieces.
8.Contact me:If you are interested in YRT Slewing Bearing,you can contact me.
