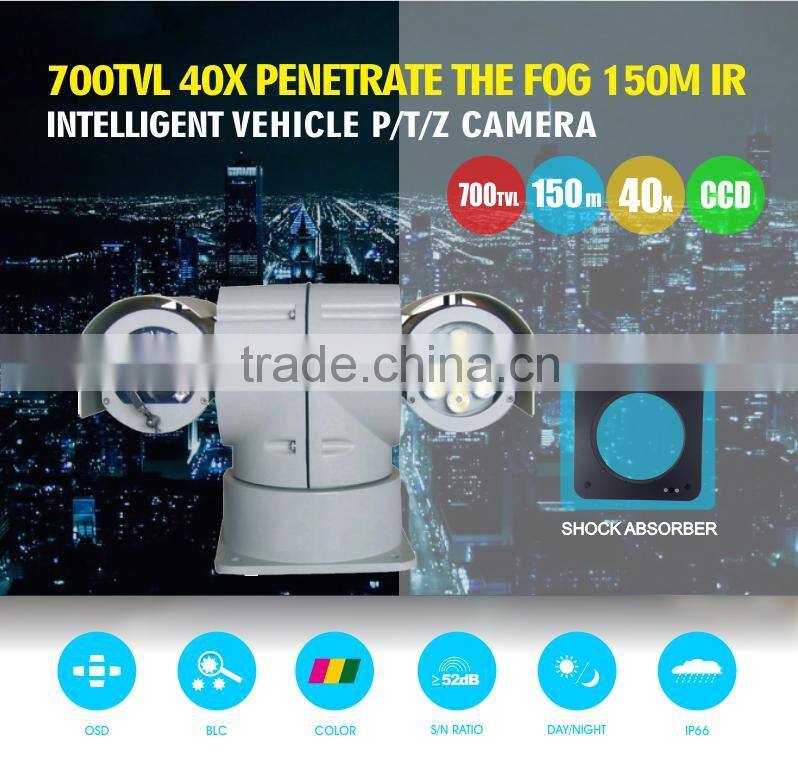

intelligent Vehicle PTZ 40X total optical zoom Vehicle mounted ptz camera
Camera:

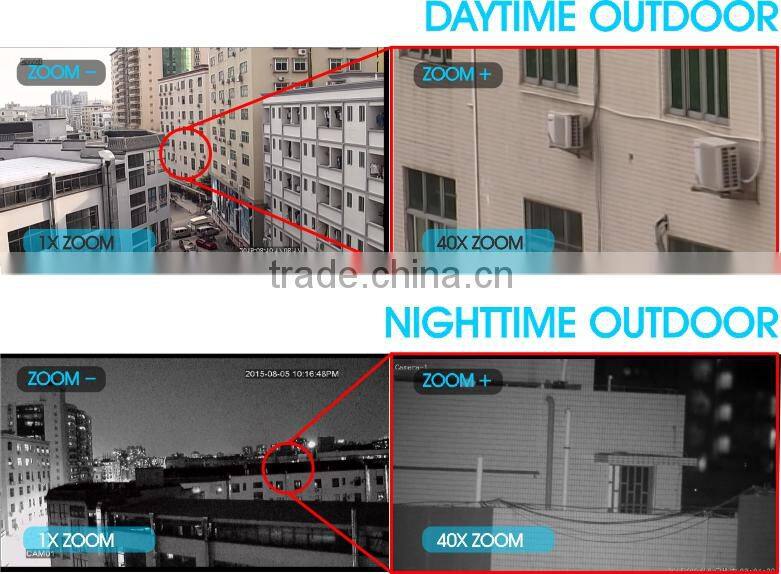

40x Optical Zoom
Dome Features:
1.IR distance 150 meters in full darkness
2.Adjustment viewing angles of camera lens & IR LED.

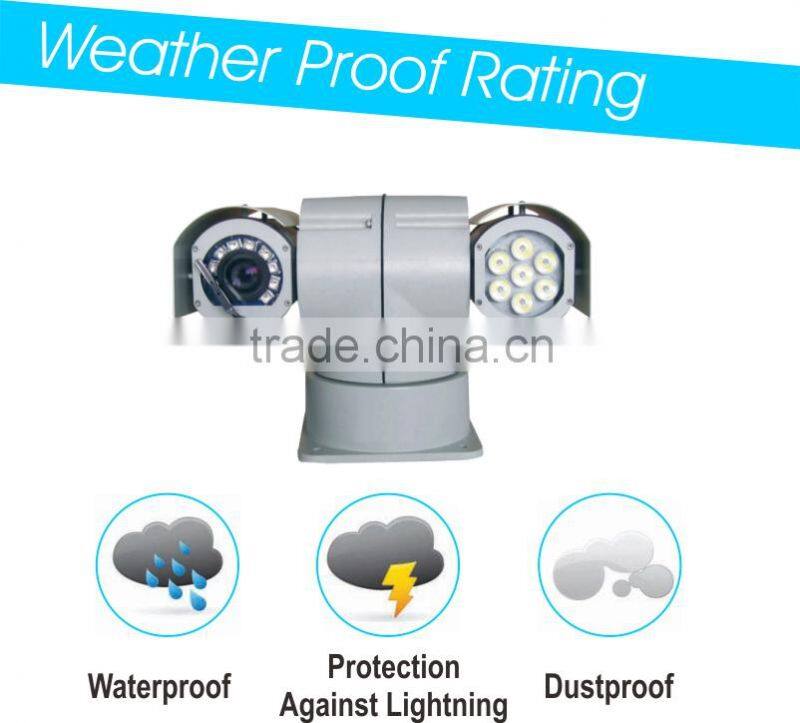

3.Weatherproof design, high die-cast aluminum casing ;
4.be set to auto-cruise, horizontal scanning, the camera mode and displays the title
5.360° continuted rotation Tilt Range -90°--+90°Manual pan speed
0.1~60°/S , Manual tilt speed 0.1~40°/S, Preset Pan speed 100°/S, Preset tilt speed 80°/S,
Preset Accuracy ±0.10°with 128 preset points
6.PTZ coordinates, the lens magnification display function
7.6 tours and 4 patterns
8.Protocols: pelco D/P,
9.Work temperature -35°/S~+55°/S
10. Interlligent wiper
| Mode | Name and Description |
ASP612 Series Analog Vehicle IR Varifocal PTZ Camera with Wiper | ||
| ASP612-940 | ||||
| Camera | Camera Name | AS-S982S | ||
| Image Sensor | 1/3" SONY Interline Transfer EXview HAD-II CCD | |||
| Effective Pixels | 1/3" 960H CCD, 1020(H)×508(L) | |||
| Horizontal Resolution | 700TVL | |||
| Min. Illumination | 0.01 lux (typical) (50 IRE) | |||
| Zoom | 40X total optical zoom,=4.5mm (wide) to 162mm (tele) F1.6(W)~F4.8(T) | |||
| Day/Night | Auto | |||
| Focusing System | Auto/Trigger/Manual | |||
| White Balance | OFF*/ON | |||
| BLC | ON/OFF | |||
| IR Parameters | Luminary | 8EA Xeagle-eye Led+7 EA Osram Special LED | ||
| Night vision distance | 150M | |||
| Lamp control | Auto, Manual, by Zoom | |||
| Dome Features | Address | 0~255(soft address and hard address) | ||
| Pan Range | 360° continued rotation | |||
| Tilt Range | -90°~+90°(Auto Flip) | |||
| Manual pan speed | 0.1°-60º/S | |||
| Manual tilt speed | 0.1°-40º/S | |||
| Actual preset Accuracy | ±0.10° | |||
| Preset points | 128 | |||
| Operation OSD language | Chinese /English | |||
| OSD Display | Yes | |||
| Operation status display | function display during operation | |||
| Vector scan groups | 6 Programmable | |||
| Communication Protocol | PELCO_P,PELCO_D | |||
| Intelligent Three-dimensional Scan | Auto Pan & Tilt &Zoom /Manual | |||
| Pattern group | 4 Programmable(Pan/Tilt/Zoom ) | |||
| Speed adaption | Speed slows down automatically when zoom in | |||
| Intelligent power off real time memory | automatic save functions setting ,automatic wake up tour function | |||
| Camera Menu operation | support the operation of camera set up | |||
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |||
| Return preset position | The dome will rotate back to preset position after a period of vacant time | |||
| General | Work temperature | External-35°/S~+55°/S | ||
| Work Humidity | 0%~90% (Non condensing) | |||

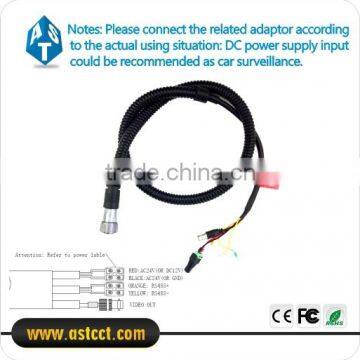

| Power | AC24V±10% | |||
| Consumption | 50W | |||
| Communication | RS-485 | |||
| Connection | BNC | |||
| Shock request | >4G | |||
| Weight | 6Kg | |||
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
