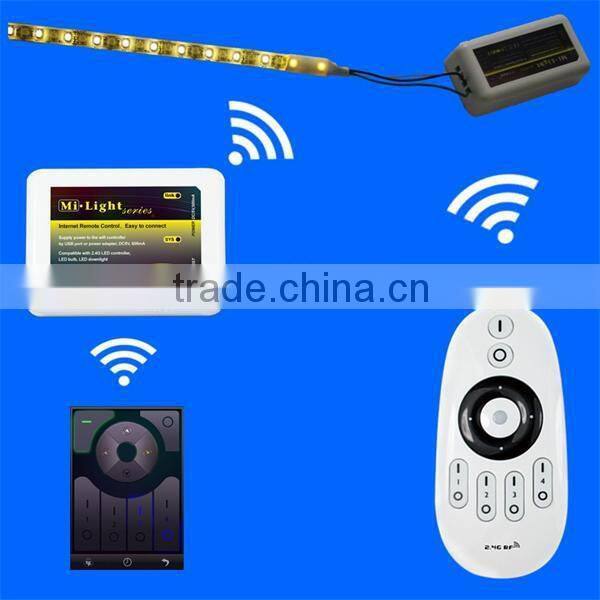

RF Remote-control Color Temperature Adjusting for LED Strips

2.4G 4-zone Dual White / Single White Remote for LED Strips User Instruction

Thanks for reading. This manual describes two types of remote controls with same functions.

Both remotes can control the dual white (warm white – cool white) LED lights up to four different zones. It controls the intensity and color temperature in all groups.

1. Technical Parameters (Remote control)

1). Power supply: AAA battery * 2pcs

2). Cover material: ABS

We recommend using rechargeable batteries for the remote controls. For that reason, we don’t include the ordinary batteries. We hope you appreciate our environmental friendly choices and they do not cause you any inconvenience.

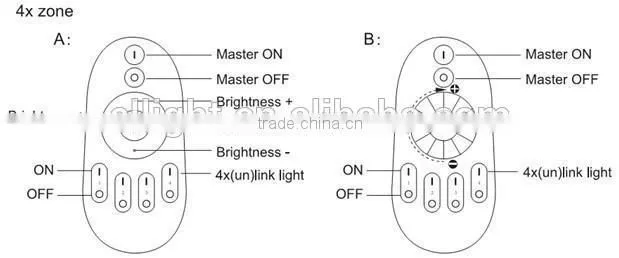

2. Function of keys

3. How to use

Linking new lights to the remote controls:

1. Choose which zone you want to assign the light(zone 1 to 4).

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again and within 3 seconds shortly press one of the “Zone ON” buttons one time on the remote control.

4. When this link operation is successful, the light slowly blinks 3 times.

Unlinking the lights:

1. Use the remote to check which zone the light is already linked to.

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again and within 3 seconds press the “Zone ON” 5 times quickly of the selected zone.

4. When the unlink is successful, the light quickly blinks 6 times on and off.

Brightness & color temperature adjusting:

Remote A:

To adjust the individual controller, first press the “Zone ON” of the selected zone, then set the adjustment for brightness or color temperature of this zone.

To adjust all the controllers in all zones at the same time, first press the “Master ON”, then set the adjustment for brightness or color temperature of this zone.

Remote B:

The default mode is to adjust the brightness, rotating the wheel from the left to the right, pressing the middle once, left to right, cooler, right to left, warmer.

Brightness: 100%-1%, 20 grades to adjust.

Color temperature: 11 grades to adjust from warm white to cool white.

Night light mode:

For individual controllers, press and hold the “Zone OFF” from 1 of the 4 zones. For all controllers, press and hold “Master OFF”. The lights now consume only 0.4 watts.

Resume function:

The previous settings will be resumed while power on again!

Grouping of several lights

You can add and endless numbers of lights to one zone on the 4 channel remote by linking the lights to different zones. You are completely flexible in creating different group combinations. Below are some grouping examples.

We recommend using rechargeable batteries for the remote controls. For that reason, we don’t include the ordinary batteries. We hope you appreciate our environmental friendly choices and they do not cause you any inconvenience.

Attention

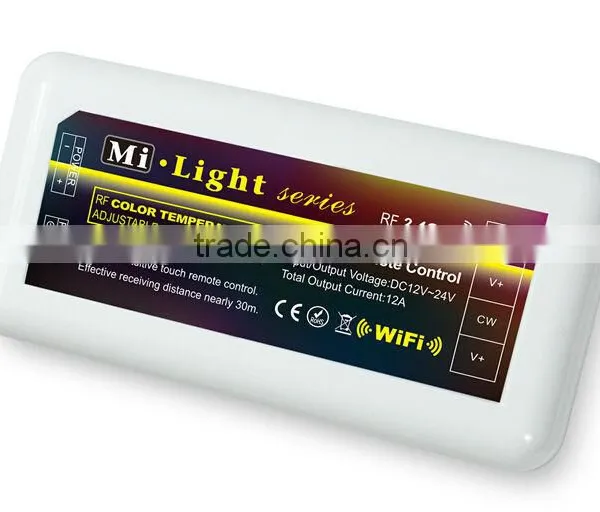

1. The regular product for sale is a kit(remote and controller). The user can re-programme freely as needed. One remote can control countless controllers, but one controller can be controlled by four remotes(Max).

2. Please check the battery installation and the controller(totally discharge the power), when you programme after switching off and switching on.
