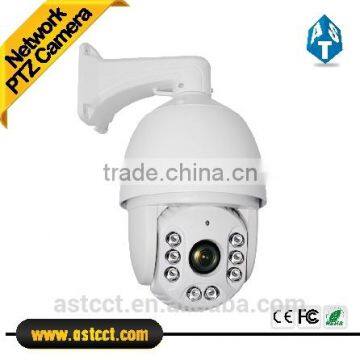

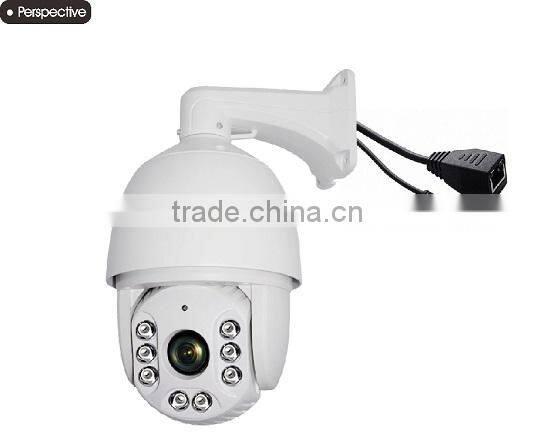

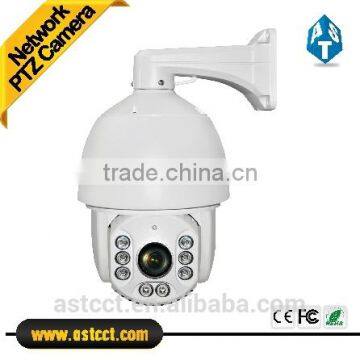

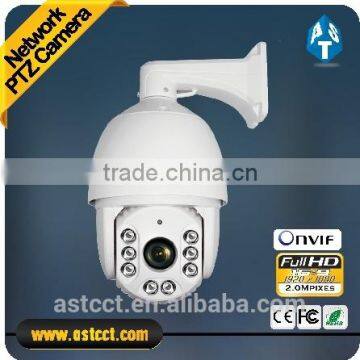

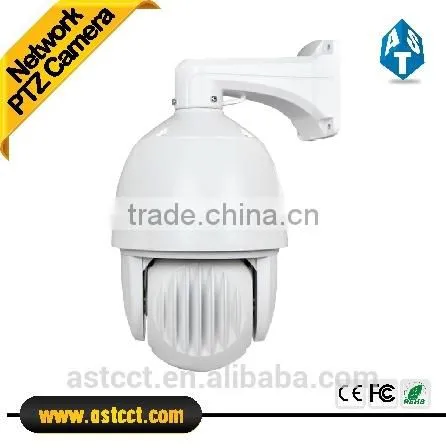

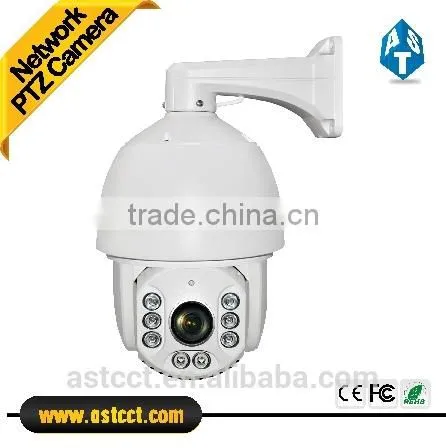

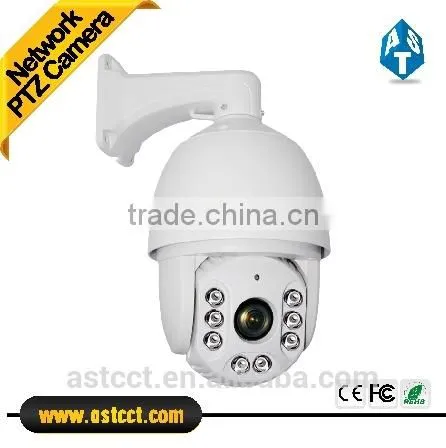

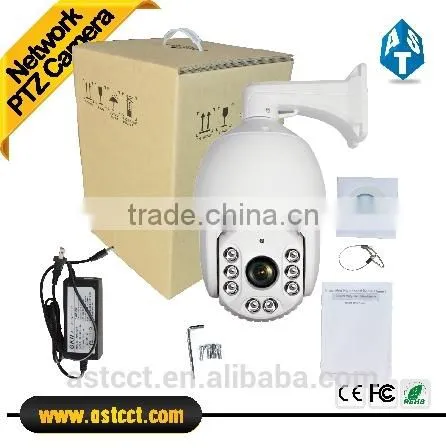

1080P FULL HD IP PTZ Camera 20X digital zoom 2.0Megapixel IR night vision PTZ Outdoor Camera IR 120 meter High Speed Dome Camera
Dome Features:
* 1/3-type CMOS, 20X,f = 4.7mm ~ 94.0mm 1920*1080 (1080P)
* H.264 High Profile;MJPEG/JPEG Baseline
* Built-in Web server
* Support remote update software
* Alarm recording: video lost, motion detection and sensor alarm
* Auto-recovery after restart
* Protocals:TCP/IP/HTTP/HTTPS/NTP/ICMP/ DHCP/UDP/SMTP/RTP/RTSP/ARP/DDNS/DNS/PPPoE/P2P/802.1X/SCTP

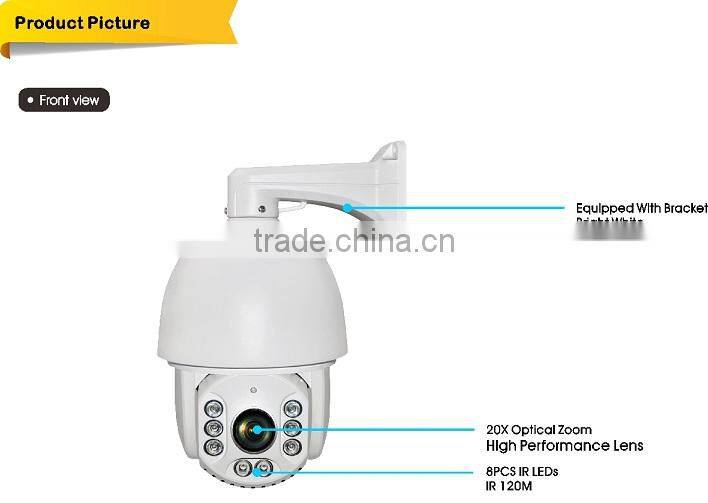

* German IR LED 8pcs array , Aut-adjust zoom according to distance,LED brightness adjustable manually
* 4 Patterns (Max.10 minutes record each) ,6 tour display, Manual pan speed 0.01-200º/s, Manual tilt speed 0.01-120º/s
| Model | Products Model | ASRIH678-020-42 |
| Camera Specification | Sensor | 1/3" Progressive Scan CMOS |
| Effective pixels | 1290*1080 | |
| Lens | Distance Focus F=4.7-94mm | |
| Zoom | 20X optical zoom | |
| Output Pixel | 1920*1080 25fps | |
| Coding chip | TI DM368 | |
| Total pixels | 2.0Megapixels | |
| Iris | F1.6 ~F2.8 | |
| View of Angle | WIDE 68.5o±5% TELE 4.2o±5% | |
| Min. illumination | Color: 0.01 Lux B/W: 0 Lux | |
| D/N | IR-CUT | |
| BLC | Auto | |
| WB | Auto | |
| S/N Ratio | >50dB | |
| PTZ Specification | Communications Protocol | TCP/IP/HTTP/HTTPS/NTP/ICMP/ DHCP/UDP/SMTP/ |
| RTP/RTSP/ARP/DDNS/DNS/PPPoE/P2P/802.1X/SCTP | ||

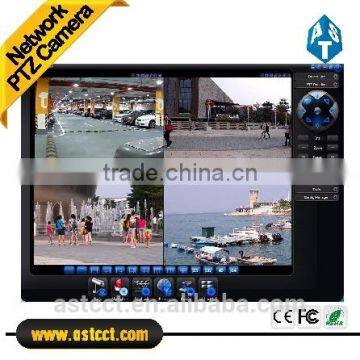

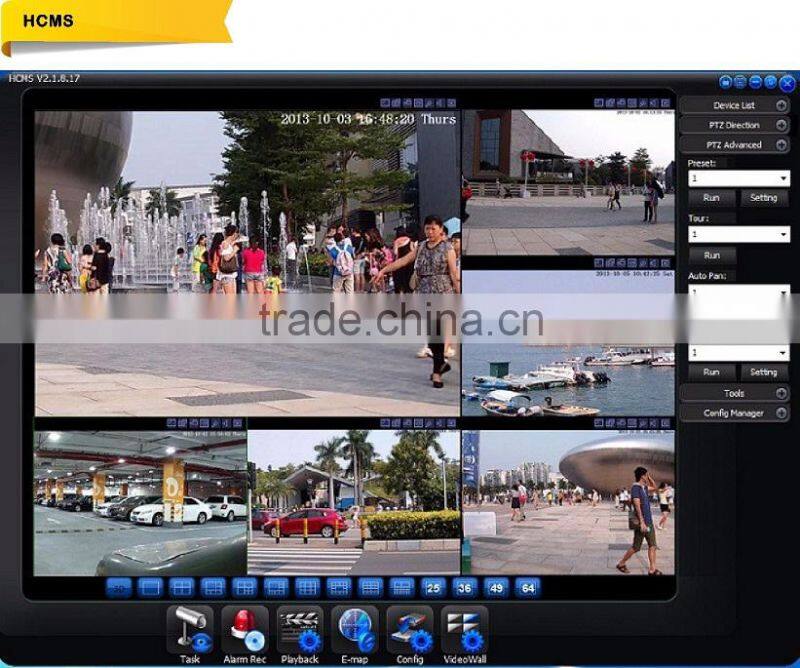

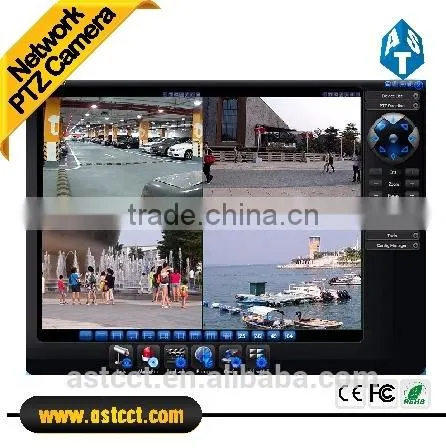

| Software Control | IE, HCMS, , CMS, Management Platform | |
| network interface | 1 RJ45 10M / 100M adaptive Ethernet port | |
| Video format | H.264 / AVI | |
| transmission standards | Onvif2.0 | |
| Preset Points | 255 | |
| Pattern Scan | 4 groups | |
| Guard Tours | 3 groups | |
| Guard Points | Max.16 points, dwell time user selectable | |
| Operating temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° | |
| Operation menu | Multiple languages for OSD menu, English, Chinese etc | |
| PTZ rotating speed | Horizontal rotating speed of 200 ° / s. The vertical rotation speed of 120 ° / s. | |
| Auto Control IR LED | 139 can achieve the distance light Switching | |
| Power off memory function | Support | |
| LEDs | 8pcs | |
| IR distance | 120m | |
| Guarding position function | Support | |
| P2P Function | (optional) | |
| Audio Function | (optional) | |
| SD card Function | (optional) | |
| Structure | Double layer metal structure | |
| Humidity | ≤95% Non Condensing | |
| Power | DC12V ≤5A | |
| Consumption | < 50W | |
| Lightning Protection | Transient voltage 3000V | |
| Bracket | Standard wall mounting (Hoisting optional) | |
| Weight | 6.5KG | |
| Related validation | IP66,RoHs |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
