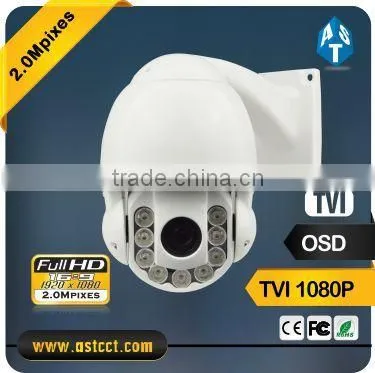

intelligent Full HD TVI camera 1080P 10x zoom ptz camera 2.0Mp Sony Sensor Mini IR ptz High Speed Dome Camera, support IP66
Camera:
HD TVI 1080P 2.0Mpixes
1/3" CMOS Sensor,10x,f=(5.0mm~50mm), , D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux.
Dome Features:
1.NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2.Imported array IR LED, auto adjust zoom according to different distance
3.IR range 70M
4.Highest ESD protection against lightning and power surges.
5.With digital temperature controlling system protecting IR LED
6.HD-TVI output

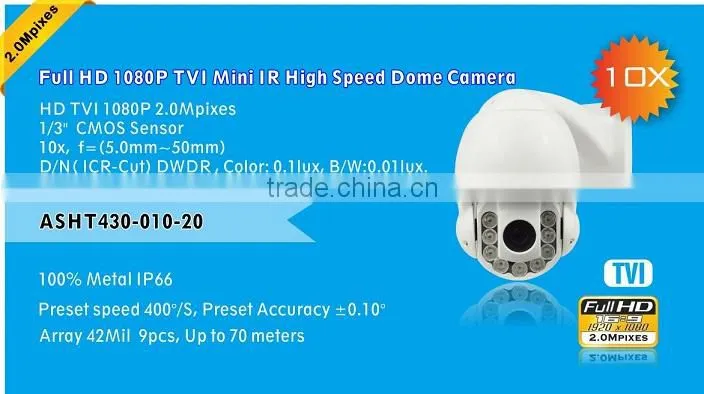

| Mode | Name and Description | ASHT430-010-20 Mini IR Full-HD TVI High Speed Dome Camera |
| Camera | Sensor | 1/3" CMOS (Sony322) |
| Effective pixels | 1080P | |
| Total pixels | 2.0 Mpixes | |
| Lens | 10X zoom | |
| Min.illumination | Color: black and white 0.1Lux: 0.01Lux | |
| Focal range | F=5mm~50mm (10X) | |
| uction | 2D Digital noise reduction | |
| White balance | Automatic | |
| D/N | IR-CUT | |
| S/N Ratio | ≥50dB | |
| WB | Indoor/Outdoor/Auto/Manual | |
| Dome Features | Pan range | 360°continuous rotation |
| Tilt range | 0°~93° auto flip 180° | |
| Manual Pan speed | 1~200°/s | |
| Manual Tilt speed | 1~120°/s | |
| Preset speed | 400°/S | |
| Preset Points | 255 | |
| Pattern Scan | 5 groups | |
| Guard Tours | 5 groups | |
| Guard Points | Max.16 points, dwell time user selectable | |
| Operating temperature | Indoor:0ºC~+40ºC Outdoor: -40℃~+60℃ | |
| Operation menu | Support English menu | |
| Power off memory | Support | |
| Humidity | ≤95% Non Condensing | |
| Power | DC 12V5A | |
| Consumption | < 25W | |
| Lightning Protection | Transient voltage 6000V | |
| Video interface output | TVI | |
| Communication mode | RS485 (+/-)/ Coaxial Cable | |
| Related validation | IP66,CE,FCC,RoHs | |
| IR parameters | Support ambient light detection | IR illumination on 1-25 grades selectable; |
| Auto Control IR LED | PWM | |
| LED | Array 42Mil 9pcs | |
| IR distance | Up to 70 meters | |
| Support ambient light detection | IR illumination on 1-25 grades selectable; |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
