Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera With 27x Zoom IR 120M OSD Control

Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera With 27x Zoom IR 120M OSD Control photo-1
Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera With 27x Zoom IR 120M OSD Control photo-2
Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera With 27x Zoom IR 120M OSD Control photo-3
US$ 80 - 399 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASHT678-027-11
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name AST
Model Number ASHT678-027-11
Type Other, TVI Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control

Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control


Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control

Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom  IR 120M OSD Control

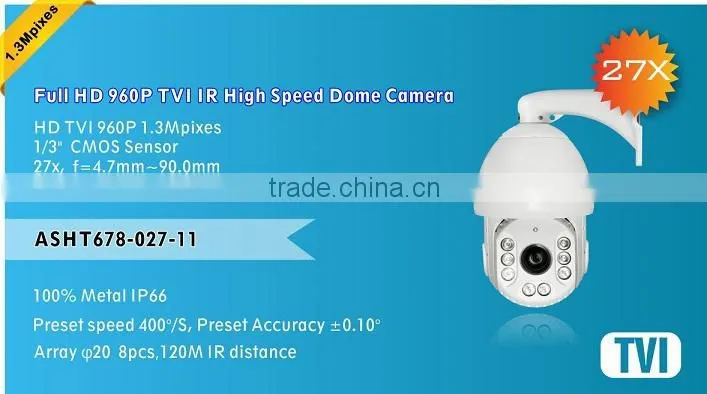

Camera:

HD TVI 960P1.3Mpixes
1/3" CMOS Sensor, 27x, f=4.7mm~90.0mm, D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux.

Dome Features:

1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 120M
4. Highest ESD protection against lightning and power surges.
5. With digital temperature controlling system protecting IR LED
6. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
7. HD-TVI output
8. 8 tours, DC12V



Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



ModeName and Description1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera
ASHT678-027-11 Outdoor
CameraCamera NameAS-AT027 (27X D/N))
Image Sensor 1/3"  CMOS
Effective Pixels1.3 Mpixes
Horizontal Resolution960P
Min. Illumination0.1Lux :Color/0.01 Lux:B/W
Zoom27X, f=4.7mm~90.0mm  F1.6(W)~2.7(T)
Day/NightAUTO/COLOR/BW
SNR≥50dB(AGC OFF)
WDRDWDR
White BalanceAuto/Indoor/Outdoor/Manual
Electronic shutter 1/30s~1/10,000s
Dome FeaturesCPU Type32 bit ARM CPU
Luminary Array Φ20 8pcs
Night vision distance 120M
Lamp control Auto, Manual, by Zoom
Address0~255(soft address and hard address)
Pan Range360° continued rotation
Tilt Range0~90°(Auto Flip)
Manual pan speed0~240º/S
Manual tilt speed0~120°/S
Preset speed400°/S
Actual preset Accuracy±0.10°
Preset points255
Operation OSD languageChinese /English
OSD Displaydome menu & camera menu adjustment
Home positionReturn to preset/scan/pattern/ if there is no command
 in the specified period.
Operation recallrecall operation zone
Tour8
Communication ProtocolHD-TVI
Intelligent Three
dimensional Scan
Auto Pan & Tilt &Zoom /Manual
Pattern group 8 Programmable(Pan/Tilt/Zoom )
Speed adaptionSpeed slows down automatically when zoom in
Intelligent power
off real time memory
automatic save functions setting ,automatic wake up tour function
Camera Menu operationsupport the operation of camera set up
Manual continued
Auto Scan
Non-limited position of manual continued Auto scan
GeneralWork temperatureExternal–35℃~55℃
Work Humidity0%~90% (Non condensing)
PowerDC12V±10%; 4A
Consumption50W
Communication RS-485
Video OutputHD-TVI
ConnectionBNC






Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control



 Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control

1. About the sample: How could I get a sample?

Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.



2. About price list: can I get your price list?

Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.



3. About the shipment: what type of shipment will you use?

We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.



4. About payment: what terms of payment do you use?

We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small

order and L/C for larger order.



5. About the MOQ: What is your minimum order qty?

Our minimum order qty is 20pcs each model, but we accept small order as trial order.



6,About compensation: what is your company's compensation policy?

We can compensate buyer's loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

 them by good quality products.



7. About sole-distributor: How can I be your sole-distributor?

We have special policy for sole-distributor. Please contact our sales person to get related files.





8. About OEM: could we place order by OEM style to produce our own brand products in China?

Of course you can. Welcome to do OEM.

If any further problem, welcome to contact our sales person.

Thanks for your interest

Low Cost TVI Product 1.3 Mpixes 960 HD Dahua Housing TVI IR High Speed Dome PTZ Camera with 27x zoom IR 120M OSD Control

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
