AER800-4P 4-port ADSL Loop Repeater

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	Billioncom
Model Number	AER800-4P

Product Description

General Description

ADSL loop extender can extend the coverage of ADSL lines. It will provide systems with higher performance-to-cost ratio, improve the equipment utilization rate and optimize the network. This product will allow you to double the number of subscribers that you can reach while offering more consistent high bandwidth services to your existing customers.

ADSL loop extender is an active element installed in the outside loop plant. It operates as an amplifier and equalizes the signal.

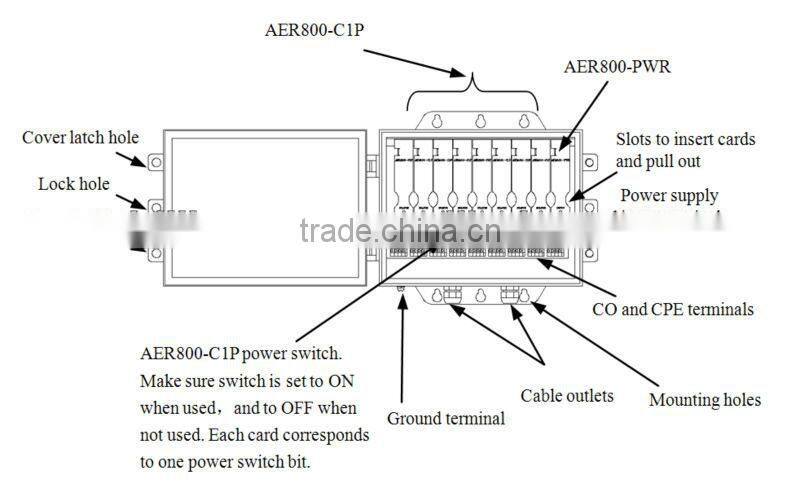

ADSL loop extender’ box and the business card are as below:

AER800-1P box: One box for 1 AER800-1P embedded.
AER800-2P box: One box for 1 AER800-2P embedded.
AER800-4P box: One box for 4 AER800-C1P and 1 AER800-PWR embedded.
AER800-8P box: One box for 8 AER800-C1P and 1 AER800-PWR embedded.
AER800-C1P: One port ADSL loop extender for one ADSL subscriber, can be inserted into the extender’s box easily.
AER800-PWR: One port power supply, which can power for 1~8 AER800-C1P cards, can be inserted into the extender’s box easily.

Benefits

ADSL subscriber can be added by inserting the business cards AER800-C1P.
Economize the copper pairs for one additional pair can power eight ADSL subscriber.
Comprehensive over-voltage protection.
Easy to install, deploy and maintain.
Low power consumption and more environmentally friendly

Specifications

Technical Specifications

Operating Environment	Temperature	-35°C~+65°C
	Relative Humidity	5%~95% (Non-condensing)
Input Power	DC60V ~ DC155V
Power Consumption	Less than 0.2W( per port )
Dimensions(LWH)	AER800-1P box		160mm×70mm×48mm
	AER800-2P box		192mm×92mm×42mm
	AER800-4P box		215mm×290mm×82mm
	AER800-8P box		315mm×290mm×82mm
Number of Supported Subscriber	AER800-1P		1 ADSL subscriber
	AER800-2P		2 ADSL subscriber
	AER800-4P		4 ADSL subscriber
	AER800-8P		8 ADSL subscriber

Technical Specifications of AEC-B1P/B4P/RACK

Operating Environment	Temperature	-10°C~ +50°C
Operating Environment	Relative Humidity	5% ~95% (Non-condensing)
Input Voltage	AEC-B1P	AC 220/110V(85V~265V) DC48V(36V~72V)
	AEC-B4P	DC48V(36V~72V)
	AEC-RACK	DC48V(36V~72V)
Output Voltage	DC 116V
Output Current	Less than 20mA(8 ports fully loaded)
Output Port	AEC-B1P	1 port
	AEC-B4P	4 ports
	AEC-RACK	2×13 ports(max)
Support the Extender Model and Quantity	AEC-B1P	one AER800-1P or one AER800-2P or one AER800-4P or one AER800-8P
	AEC-B4P	four AER800-1P or four AER800-2P or four AER800-4P or four AER800-8P
	AEC-RACK	twenty six AER800-1P or twenty six AER800-2P or twenty six AER800-4P or twenty six AER800-8P
Dimensions(LWH)	AEC-B1P	110 mm×50 mm×30 mm
	AEC-B4P	480 mm×160 mm×44 mm
	AEC-RACK	480 mm×153 mm×133 mm

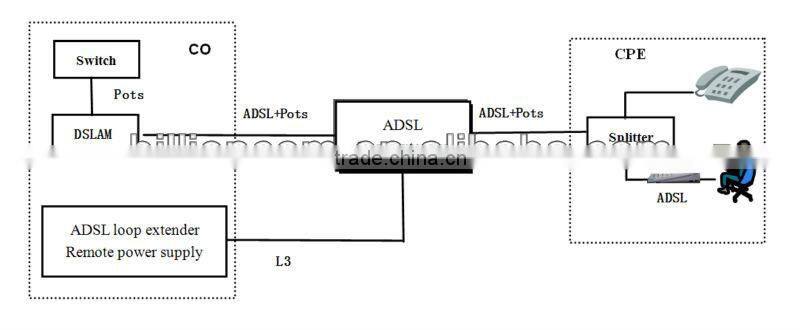

Applications

L1: The signal twist pair connecting ADSL loop extender to DSLAM.

L2: The signal twist pair connecting ADSL loop extender to modem.

L3: The power twist pair connecting AEC to ADSL loop extender.

Resistance and Distance Demand

The recommended installation conditions are as follows:

(1)26 AWG twist pair

The demand about resistance and distance:

Route	20°Cloop resistance (Ω)	Distance Demand
Route	20°Cloop resistance (Ω)	Kft	Km
L1	444 ~ 1332	4.9 ~ 14.8	1.5 ~ 4.5
L2	88 ~ 1184	1.0 ~ 13.2	0.3 ~ 4.0
L(L1+L2)	680 ~ 1776	7.5 ~ 19.7	2.3 ~ 6.0

(2)24 AWG twist pair

The demand about resistance and distance:

Route	20°CLoop Resistance (Ω)	Distance Demand
Route	20°CLoop Resistance (Ω)	Kft	Km
L1	344~1032	6.6~19.7	2.0~6.0
L2	86~929	1.6~17.7	0.5~5.4
L(L1+L2)	568~1445	10.8~27.7	3.3~8.4

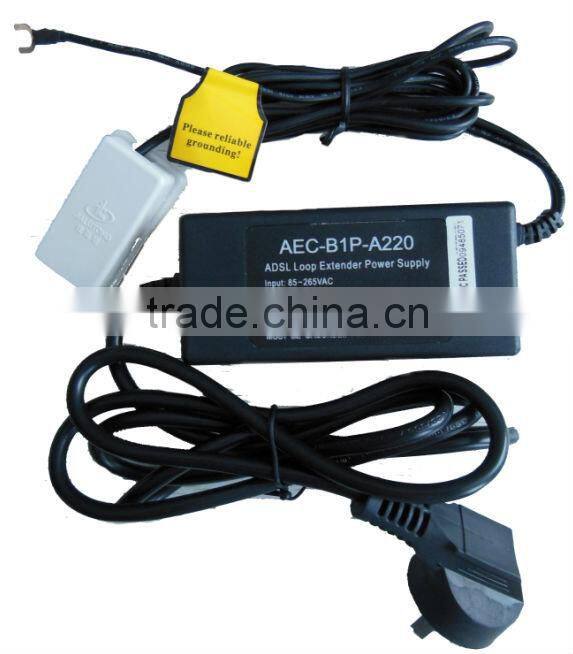

AEC-B1P-A220
