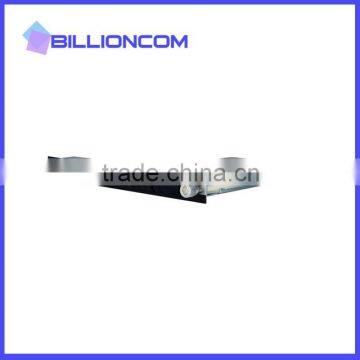

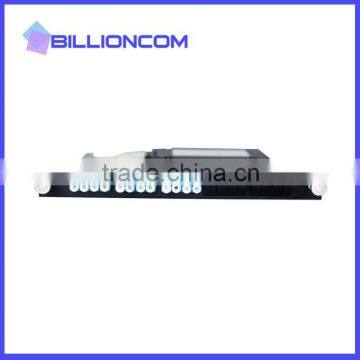

Duplex 4+1 Channel CWDM Multiplexer DeMultiplexer 1270-1610nm With Upgrade Port
Negotiable
MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Billioncom
Model Number:
OEO6500-CWDM-MUX-4CH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Channel Passive CWDM Mux DeMux 1270-1610nmNegotiableMOQ: 1 Pair -
High Performance 16 Channel CWDM Multiplexer 1270-1610nmNegotiableMOQ: 1 Pair
-
Passive 16 Channel CWDM Mux DeMux 1270-1610nmNegotiableMOQ: 1 Pair
-
Passive 2 4 8 16 Channel CWDM OADMNegotiableMOQ: 1 Set
-
Sino-Telecom High Capacity Coarse WDM Optical Transport NetworkingNegotiableMOQ: 1 Pair
Place of Origin
Shanghai, China
Brand Name
Billioncom
Model Number
OEO6500-CWDM-MUX-4CH
Overview

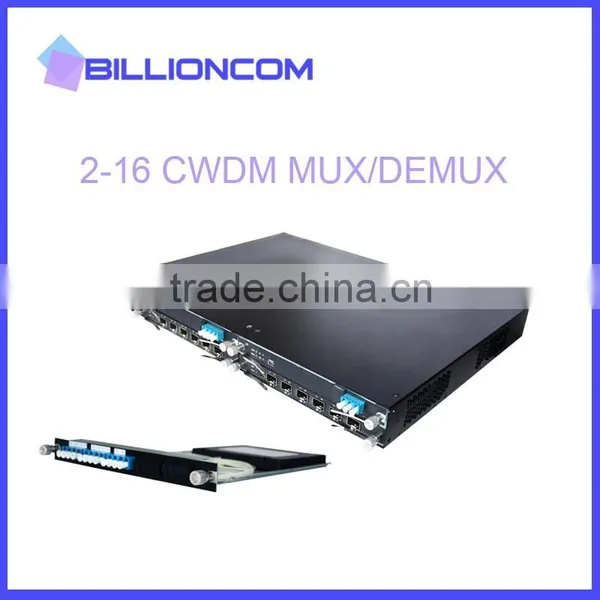

OEO6500-OMUX-CWDM is a Coarse Wavelength Division (CWDM) Multiplexer. It is used to multiplex or de-multiplex optical paths, which can largely save the limited fiber resources.Network configuration can be flexibly modified according to the dynamic requirements.
Function Realization
- Can be hot-pluggable at any rate;
- Supports CWDM wavelengths compliant with ITU-T;
- Can be operated and controlled independently;
- With upgrade ports.
Performance Specification
| Parameter CWDM MUX/DEMUX | Specifications | Unit |
| Channel Wavelength | 4, up to 18 channels | nm |
| Extended Wavelength | 1270-1260 except pass channel | nm |
| Channel Spacing | 20 | nm |
| Channel Bandwidth | λc + /- 6.5 (minimum) | nm |
| Insertion Loss | ≤ 0.35N (N Channel) | dB |
| Channel Flatness | 2 | dB |
| Isolation | ≥30 | dB |
| Polarization Dependent Loss | < 0.1 | dB |
| Polarization Mode Dispersion | < 0.1 | ps |
| Connector Type | LC |
