Home > Products > PTZ Camera > AHD Camera PTZ 10X zoom/pan/tilt 1.3 Megapixel Sony CMOS MINI PTZ Outdoor Camera 960P AHD High Speed Dome Camera with Ip66

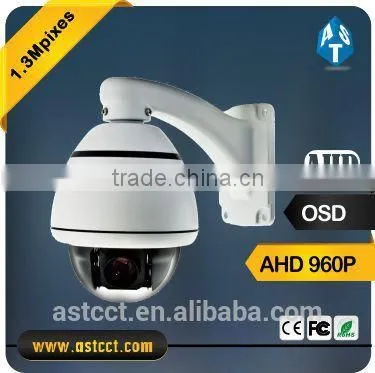

AHD Camera PTZ 10X zoom/pan/tilt 1.3 Megapixel Sony CMOS MINI PTZ Outdoor Camera 960P AHD High Speed Dome Camera with Ip66
- 100 Piece / Pieces per Month
- Shenzhen
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AST | Model Number: | ASHA404-010-11 |
Type: | Digital Camera | Style: | Dome Camera | Sensor: | CMOS |
Technology: | Pan / Tilt / Zoom | Special Features: | Waterproof / Weatherproof |
Product Description

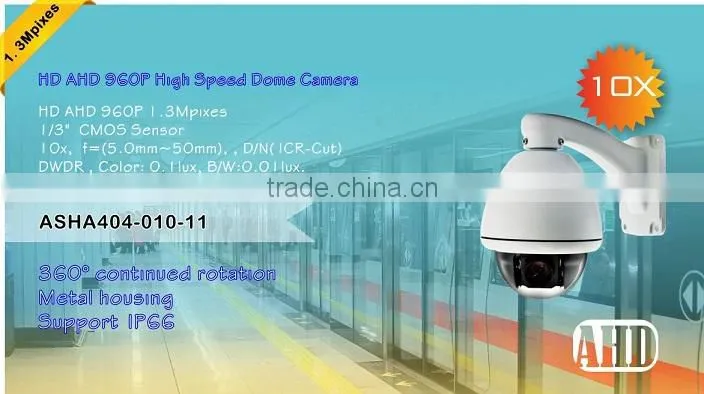

AHD Camera PTZ 10X zoom/pan/tilt 1.3 Megapixel Sony CMOS MINI PTZ Outdoor Camera 960P AHD High Speed Dome Camera with Ip66
Camera:
HD AHD 960P 1.3Mpixes
1/3" CMOS Sensor,10x,f=(5.0mm~50mm), , D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux.
Dome Features:
1. 360° continued rotation Manual pan speed 0.1~300°/S (1-64 degrees variableManual tilt speed 0°~180° Preset speed 300°/S Max
2. Preset points 128 privacy zone masking(Samsmung Module)
3. Automatic motorized stepping motors , pan speed , tilt speed, zoom speed is flexible as any speed any user want
4. Multi-protocols compatible with PELCO-D,PELCO-P
5. Highest ESD protection against lightning and power surges.
6. Soft ID and hard ID available, soft baud rate available
7.HD-AHD output
Mode | Name and Description | ASHA404-010-11 960P AHD 4” Mini High Speed Dome Camera |
ASHA404-010-11 | ||
Camera | Sensor | 1/3" CMOS (Sony 238) |
Effective pixels | 960P(1280*960) | |
Total pixels | 1.3 Mega | |
Lens | 10X zoom | |
Min.illumination | Color: black and white 0.1Lux: 0.01Lux | |
Focal range | F=5mm~50mm (10X) | |
uction | 2D Digital noise reduction | |
White balance | Automatic | |
D/N | IR-CUT | |
S/N Ratio | ≥50dB | |
WB | Indoor/Outdoor/Auto/Manual | |
Dome Features | Address | 0~255 |
Pan Range | 360° continued rotation | |
Tilt Range | 0~90°(Auto Flip) | |
Manual pan speed | 0.1~300°/S | |
Manual tilt speed | 0.1°~90°/S | |
Actual preset Accuracy | ±0.10° | |
Preset points | 128 | |
Operation OSD language | Chinese /English | |
OSD Display | dome menu & camera menu adjustment | |
Time Display | real time display on screen | |
Operation Sector zone display | 8 Programmable Zones | |
Home position | Return to preset/scan/pattern/after certain vacant time | |
Vector scan groups | 4 Programmable(Dwell time speed preset point and embed other vector scan or PTZ tours) | |
Communication Protocol | multi-protocol Pelco D/P ( could add more) | |
Intelligent task | 4 tasks at specific time as set | |
Pattern group | 4 Programmable(Pan/Tilt/Zoom ) | |
Video interface output | AHD | |
General | Work temperature | -10℃~+50℃ |
Work Humidity | 0%~95% (Non condensing) | |
Power | DC12V ≤2A | |
Consumption | ≤25W | |
Communication | RS-485 | |
Connection | BNC |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
