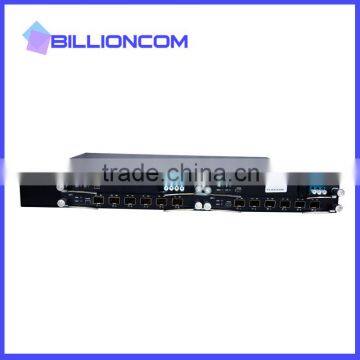

SDH Rackmounted EDFA
Features:
- Wide input power range
- Output power tunable
- Low NF
- RS-232/SNMP/RS485 network interface
- Remote monitor
- Dual power supply
Applications:
- IP ATM SDH Network
Operating Parameters
1. Booster Amplifier
Parameters | Min | Type | Max | Units | |
Operating Wavelength | 1530 | 1550 | 1565 | nm | |
Input Power | 2.5G or Below | -6 |
| 4 | dBm |
10G | -10 |
| 4 | dBm | |
Output Power |
|
| 19 | dBm | |
Output Tunable Range |
|
| 6 | dBm | |
Noise Figure |
| 5 |
| dB | |
Input/Output Isolation | 30 |
|
| dB | |
Input/Output Return Loss | 45 |
|
| dB | |
Voltage | Rack Mount: -48V DC Module Type: +5V DC | ||||
Dimension | Rack Mount: (W×L×H)482.6×200×43.6 Module Type: (W×L×H)150×125×20 | mm | |||
2. Pre-amplifier(With OTF or Fixed Filter)
Parameters | Min | Type | Max | Units | |
Operating Wavelength | Tunable Filter | 1530 |
| 1565 | nm |
Fixed Filter |
| 1550.12 |
|
| |
Input Power | -47 |
| -15 | dBm | |
Output Power | -7 |
| 0 | dBm | |
Output Tunable Range |
|
| 6 | dBm | |
Noise Figure |
| 4.5 |
| dB | |
Input/Output Isolation | 30 |
|
| dB | |
Input/Output Return Loss | 45 |
|
| dB | |
Voltage | Rack Mount: -48V DC Module Type: +5V DC | ||||
Dimension | Rack Mount: (W×L×H)482.6×200×43.6 Rack Mount:(W×L×H)482.6×200×43.6 | mm | |||
