Help CenterPopular Design Metal Housing 960P HD AHD CMOS Sensor 1.3MP 36X Zoom Low Cost High Speed Dome PTZ Camera
Related Products
-
High Quality HD AHD 960P 1.3MP CMOS Sensor 36X Zoom IR High Speed Dome Camera With WiperUS$ 1 - 428MOQ: 1 Piece -
HD AHD 960P 1.3MP IR 120M 36X Zoom Smart High Speed Dome Camera With Highest ESD ProtectionUS$ 1 - 438MOQ: 1 Piece
-
Full HD 960P Sony CMOS Sensor 27X PTZ Camera 1.3Mp HD AHD Output IR 150M High Speed Dome CameraUS$ 1 - 268MOQ: 1 Piece
-
Low Cost Full HD 1080P Sony CMOS 27X Zoom 2Mp Infrared High Speed Dome PTZ CameraUS$ 1 - 268MOQ: 1 Piece
-
Hot 960P Full Metal AHD PTZ Camera 10x Zoom Outdoor Waterproof HD IR Mini High Speed Dome PTZ Camera With Sony Cmos IR 80mUS$ 1 - 169MOQ: 1 Piece

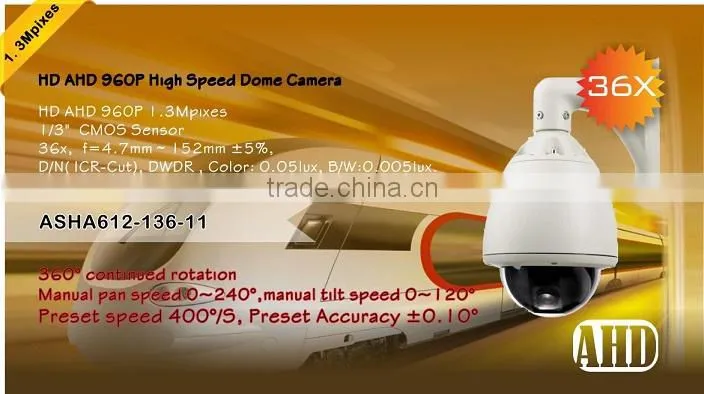

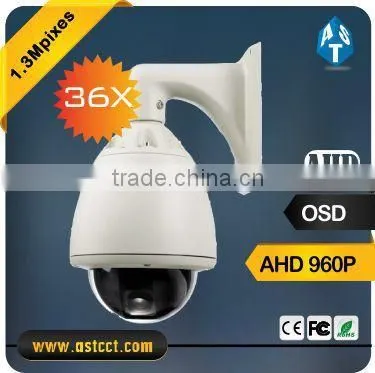

960P HD AHD CMOS sensor 1.3MP 36X Zoom High Speed Dome Camera with Metal housing
Camera:
HD AHD 960P 1.3Mpixes
1/3" CMOS Sensor, 36x, f=4.7mm~152mm ±5%, D/N( ICR-Cut), DWDR , Color: 0.05lux, B/W:0.005lux.
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Highest ESD protection against lightning and power surges.
3. Factory default setting&camera reset in OSD
4. 360° continued rotation, manual pan speed 0~240°,manual tilt speed 0~120°
5. Preset speed 400°/S, Preset Accuracy ±0.10°
6. Tilt range:0~90°(Auto flip)
7. 8 tours, DC12V
| Mode | Name and Description | ASHA612-136-11 HD AHD IR High Speed Dome Camera |
| ASHA612-136-11 Outdoor | ||
| Camera | Camera Name | AS-AH136 (36X D/N)) |
| Image Sensor | 1/3" CMOS | |
| Effective Pixels | 1.31 Mpixes | |
| Horizontal Resolution | 960P | |
| Min. Illumination | 0.05Lux :Color/0.005 Lux:B/W | |
| Zoom | 36x, f=4.7mm~152mm ±5% F1.6-4.8 | |
| Day/Night | AUTO/COLOR/BW | |
| SNR | ≥56dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0.01-240º/S | |
| Manual tilt speed | 0.01-120º/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 255 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Operation recall | recall operation zone | |
| pattern | 8 Programmable | |
| Communication Protocol | PELCO_P,PELCO_D | |
| Intelligent Three dimensional Scan |
Auto Pan & Tilt &Zoom /Manual | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory |
automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation |
support the operation of camera set up | |
| Manual continued Auto Scan |
Non-limited position of manual continued Auto scan | |
| Return preset position | The dome will rotate back to preset position after a period of vacant time. |
|
| General | Work temperature | External–25℃~55℃ |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 4A | |
| Consumption | 50W | |
| Communication | RS-485 | |
| Video Output | HD-AHD | |
| Connection | BNC |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
