Help CenterONU300G-2EV 1 PON Port+1 FE Port+1 POTS FTTH GPON ONU
Related Products
Product Overview
ONU300G-2EV is a GPON-technology-based ONU designed for home and SOHO (small office and home office) users. One optical interface is compliant with ITU-T G984.X and ITU-T G.988 Standards. The fiber access provides high-speed data channels and meets FTTH requirements, which can provide enough bandwidth support for a variety of emerging network services. One channel of 10/100M self-adaption and one channel of 10/100/1000M self-adaption Ethernet interface can realize wired high-speed network access, and allow multiple users to enjoy high-speed data service as well as excellent voice and video services.
Features
Ø Meet FTTH requirements and provide high-speed Internet access and voice service;
Ø Compliant with ITU-T G984.X and ITU-T G.988 Standards and compatible with mainstream OLT in the industry;
Ø Support DBA(Dynamic Bandwidth Assignment);
Ø Support uplink and downlink bidirectional FEC (Forward Error Correction);
Ø Support powerful and perfect QoS function, which makes it meet the needs of different buiness;
Ø The downlink rate reaches 2.5Gbits/s, and the uplink rate reaches 1.25Gbits/s;
Ø 10M/100M/1000M rate, full/half duplex self adaption;
Ø Support IGMP Snooping and controllable multicast;
Ø Support power off alarm and data encryption;
Ø Support one channel of SIP/H248-Protocol-based voice service;
Ø High integration chip is adopted-- a single chip integrates PON and gateway modules, which is efficient and energy saving;
Ø Support Bridge or Router Mode or mixed working mode. Under Router mode, static configuration of multiple working modes such as IP address, DHCP and PoE is supported.
Ø High-speed forwarding can be realized by NAT function, which enables multiple users to share 1 public IP address to realize internet access;
Ø Support DHCP server function, which facilitates users to configure the network;
Ø Linux-based operating system ensures stable and smooth operation;
Ø Support TR069 protocol and be with comprehensive and detailed network management, as well as the web interface which is easy and simple to operate;
Ø Perfect firewall function, MAC address-based black and white list filtering, uplink and downlink based three- layer filtering rules creates a safer network for users;
Ø Concise and clear indicator light status enables quick and accurate fault location;
Ø Support remote firmware upgrade of the device, which allows easy maintenance;
Ø Small size and light weight makes it easy for upgrade and reconstruction of the old network.

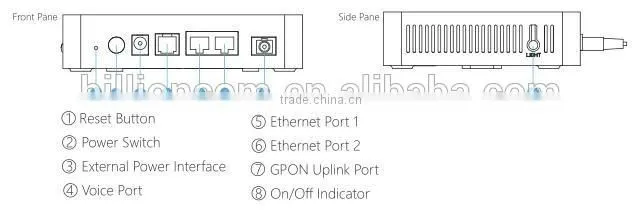

Interface Description
Technical Specifications
Item |
Description |
Interface |
1*FE port, 1*GE port, 1*POTS port, 1*PON port |
Power Supply |
DC 12V 1A |
Operating Temperature |
-5℃~50℃ |
Operating Humidity |
10%~90% (non-condensing) |
Dimensions |
134*110*30 |
Weight |
<1KG |

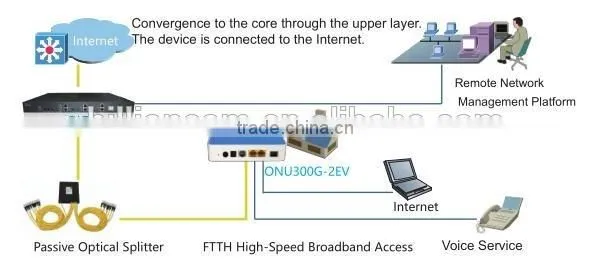

Networking Application
