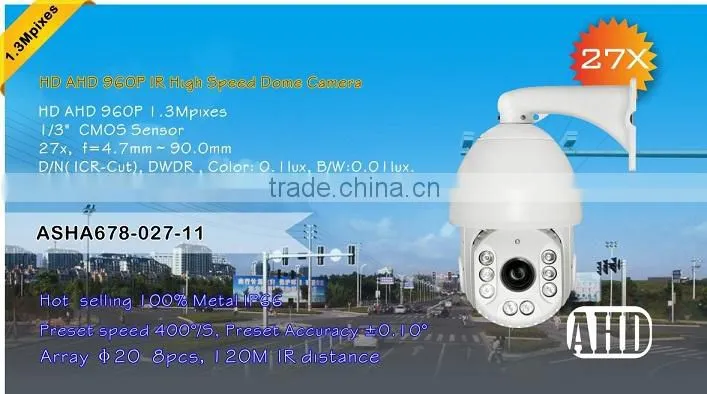

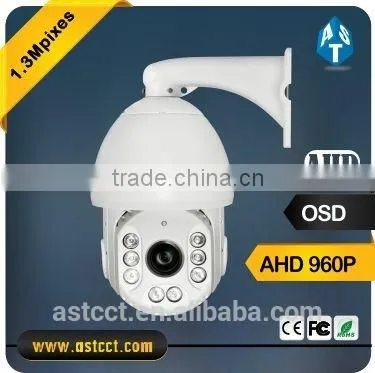

960P 7 Inch high Speed AHD PTZ Camera With 27x Zoom Night Vision IR 120M Waterproof Wall Bracket security camera
Camera:
HD AHD 960P 1.3Mpixes
1/3" CMOS Sensor, 27x, f=4.7mm~90.0mm, D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux.
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 120M
4. Highest ESD protection against lightning and power surges.
5. With digital temperature controlling system protecting IR LED
6. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
7. HD-AHD output
8. 8 tours, DC12V
| Mode | Name and Description | ASHA678-027-11 HD AHD IR High Speed Dome Camera |
| ASHA678-027-11 Outdoor | ||
| Camera | Camera Name | AS-AH027 (27X D/N)) |
| Image Sensor | 1/3" CMOS | |
| Effective Pixels | 1.3 Mpixes | |
| Horizontal Resolution | 960P | |
| Min. Illumination | 0.1Lux :Color/0.01 Lux:B/W | |
| Zoom | 27X, f=4.7mm~84.6mm F1.6(W)~2.7(T) | |
| Day/Night | AUTO/COLOR/BW | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Electronic shutter | 1/30s~1/10,000s | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Luminary | Array Φ20 8pcs | |
| Night vision distance | 120M | |
| Lamp control | Auto, Manual, by Zoom | |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0~240º/S | |
| Manual tilt speed | 0~120°/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 255 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Home position | Return to preset/scan/pattern/ if there is no command in the specified period. |
|
| Operation recall | recall operation zone | |
| Tour | 8 | |
| Communication Protocol | HD-AHD | |
| Intelligent Three -dimensional Scan |
Auto Pan & Tilt &Zoom /Manual | |
| Pattern group | 8 Programmable(Pan/Tilt/Zoom ) | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory |
automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation | support the operation of camera set up | |
| Manual continued Auto Scan |
Non-limited position of manual continued Auto scan | |
| General | Work temperature | External–35℃~55℃ |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 4A | |
| Consumption | 50W | |
| Communication | RS-485 | |
| Video Output | HD-AHD | |
| Connection | BNC |
