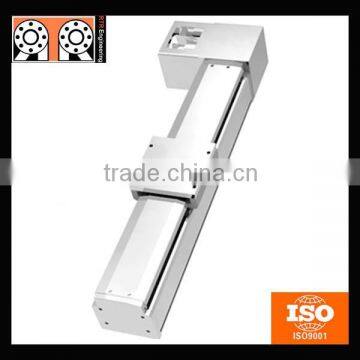

Ball Screw Series Single Axis Robot Linear Module Linear Stage in Automated Production Lines

Introduction:

Linear modules, also known as linear slide units, single axis robot, multi axis robot, industrial robots, XY stages and more.
Linear module are widely used in various industries automation equipment, automated production lines.
It has a specialization, standardization and modular features for improving the quality of automated equipment and reducing the cost of equipment plays an important role.

Feature:

1.Complete selection of modules and accessories for most applications

Driven type: ballscrew, toothed belt
AC motor output: 30W-750W servo motor or step motor
Motor connection type (depends on available space): direct, bottom, internal, left, right
Max stroke: 100mm-2000mm
2.Easy installation and maintenance
3.Customized designs available for different applications
4.Easy transformation into a multi-axis robot

Sketch:

DRE Single Axis and Multi Axis Robot linear module linear stage Application

The following are examples of applicable systems:

Automatic soldering system, screw feeding machine, adhesive laminating machine, CCD lens shifting,automatic paint spray machine, cutting machine, semiconductor manufacturing equipment, assembly equipment, press machine, spot welding machine, surface processing automation, self adhesive labeling machine, packaging machine, marking press machine, conveying equipment, and more

Robot model selection instruction

1.Combination styles (horizontal installed, vertical installed, side installed)

2.Robot installation way (embedded connection, slide-block connection, indirect connection)

3.Load weight
4.Effective travel
5.The largest working speed
6.Repeat positioning accuracy
7.Applicable environment (temperature, clean environment)
8.Motor type and model
9.Motor installation way
10.Inductive switch selection (photoelectrical or inductance proximity switch, and its number and model)
