Specifications
1. ul/cul par38 high quality lamp2.16-18W, 9LED,12LED
3.Replace 100w-150w halogen lamp
4.UL/CUL E343952
china 2013 ul/cul par38 high quality lamp
Product Features
1. Replacement of 100W-125W Halogen Lamp. To save more than 85% energy.
2. Excellent optics structure: Less lumen loss and better illuminating effect.
3.Stepless dimming from 10%-100%, Work well with most of existing dimming system, Non-flicker.
4. Stable and Efficient LED Driver (Efficiency>=85%), with PFC solution(PF>0.92).
5. Dust-proof design: IP6X. Designed for industrial environment.
Applications
Spotlighting, Architectural lighting, Accent lighting,General illuminations
CE, ROHS, FCC, CUL/CUL: E343952
| Description & Highlighted Features | |

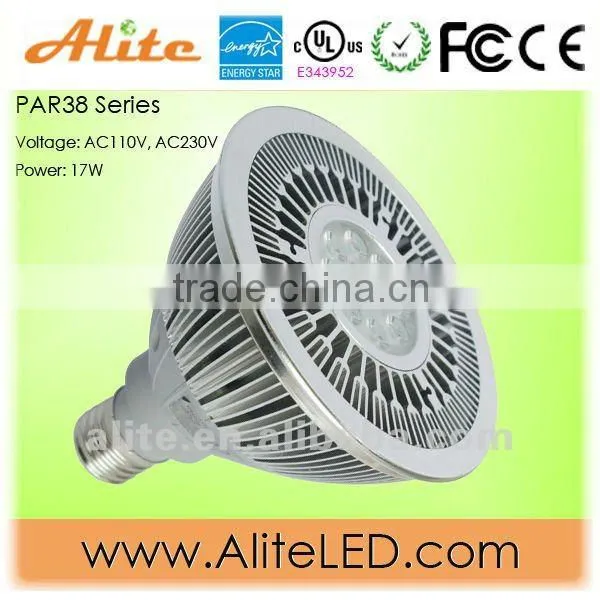

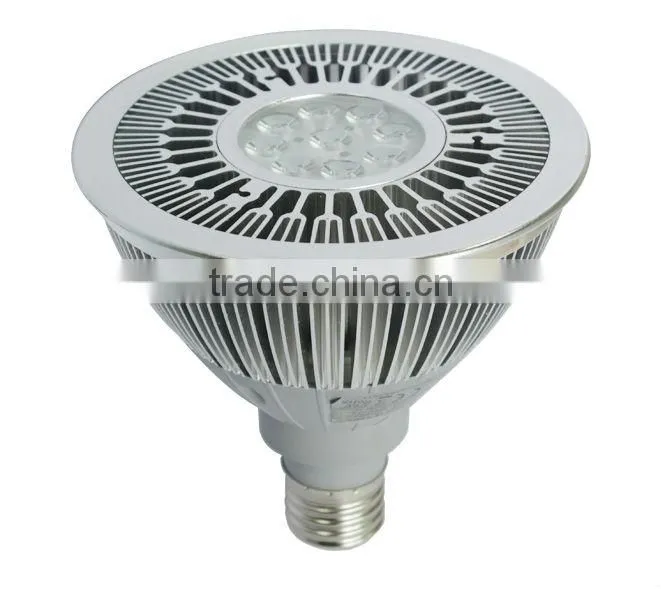

| Product Name | PAR38-17W-9LED-E26/E27 |
| Base (standard designation) | E27/E26 |
| Led Brand | CREE XP-E |
| LED Quantity | 9pcs |
| Lifespan | 50,000h |
| Warranty | 3 years |
| Operating Temp. | -20 to +40dgr |
| Highlighted Features | Modular design,better Heat dissipation |
| Electrical Data | |
| Power Consumpution | 17W |
| Voltage | AC110V/230V |
| Operating Frequency | 50/60 Hz |
| Power Factor | ≥0.95 |
| Efficacy | 63lm/W(WW) |
| Dimmable | yes |
| Optical Data | |
| Luminous Flux | 1080lm(WW) |
| Max.Luminous Intensity | 16317cd |
| Beam Angle | 15°,30°,45° |
| Color | WW,NW,CW,RGB |
| Color Rendering Index | 80-85(WW),75-80(NW),70-75(CW) |
| Dimension | |
| Overall Length | 121.7mm |
| Diameter | 120mm |
Trading Terms
1. Payment term: T/T 30% deposit before production, 70%balance to be paid before delivery
2. Production lead time: 15-20 days for bulk order, 7-10 days for sample order
3. Shipping Term: EXW
4. Delivery Port: Shenzhen port
5. MOQ: 1-200PCS
6. Packing: white box or color giftbox; customer's logo and label are avaialable for order more than 200pcs
