North Americal UL/cUL(E343952) 9w G24 Led Lighting

Alite Co., Ltd.
North Americal UL/cUL(E343952) 9w G24 Led Lighting thumbnail-1
North Americal UL/cUL(E343952) 9w G24 Led Lighting photo-1
US$ 5 - 8 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD5630
Type:
Corn Lights
Input Voltage(V):
100-277V AC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5630
Type Corn Lights
Input Voltage(V) 100-277V AC
Lamp Power(W) 9
Lamp Luminous Flux(lm) 900
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 3000k/4000k/5000k/6500k
Working Temperature(℃) -20, +40
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aeronautical Aluminum#6063
Certification CE, FCC, UL
Base Type Other, G24-2pins/G24-4pins/G23/GX23/E26/E27
Place of Origin Guangdong, China
Brand Name Alite
Model Number PL-9W-28LED-E27/G23/G24

North Americal UL/cUL(E343952) 9w G24 led lighting

Alite welcome you visit our factory !

North Americal UL/cUL(E343952) 9w G24 led lighting

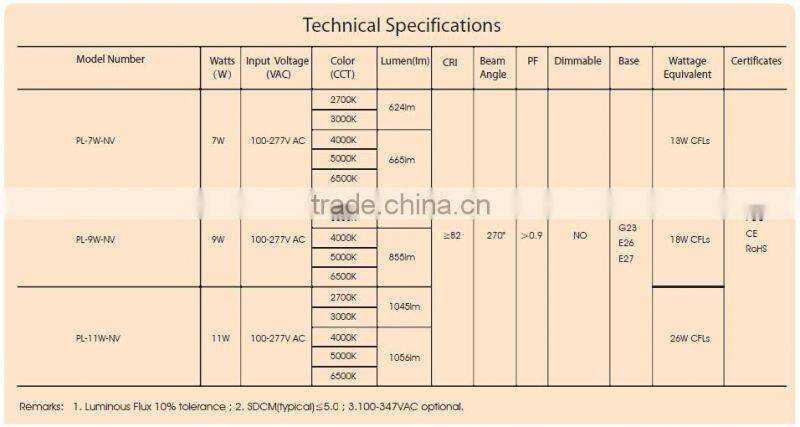

 Parameters:

Model

PL-9W-28LED-E27/G23/G24

Power consumption

9W

Input voltage

100-277VAC

Frequency

50-60HZ

LED chip

Taiwan SMD5630

LED luminous efficiency

100lm/w

Housing

Aeronautical Aluminum#6063

PF

>0.9

Size

Dia 50mm  H145mm

Correlated Color Temperature

3000K (Warm white);4000K(natural white);5000K(Pure white);6000K (Cool white)

Color rendering index

Ra>82

Beam Angle

270°

Socket

G24-2pins/G24-4pins/G23/GX23/E26/E27

Dimming

Yes

Operating ambient temperature

-25°C~+40°C

Certificate

UL/cUL(E343952) , FCC , CE , ROHS

Warranty

4 warranty



Our strengths:

* 270 ° Beam angle

* 360° twisting

* 5mm moving levelly left&right

* excellent heat dispassion

* 4 years guarantee

* UL/cUL FCC CE ROHS approval



Product introduction:

* Stable and efficient PL bulb LED Driver (Efficienct >=82% ) , with PFC solution (PF>0.92)

* LED source of LED plug G23 G24 CFL Lights: CREE , EPISTAR,SAMSUNG

* High Flux , CRI>80 , UL pl lamp in coincident with LM79 and LM80 (energy star standard )

* Stable component Capacitor -RUBYCON ,IC-ST ,Semiconductor-Fairchild .

* Stepless Dimmable , Applicable with most SCR dimmer , pl G24 G23 spotlight no flicker .

* Meet EMC Test , Short circuit protection Dust & Water proof . IP63

* Lifespan up to 50000Hours , 3 years warranty of our UL LED Plug PL G23 G24 CFL

* National patent"Alite" , With own Hi-tech R&D Capability

* UL/CUL(E343952) , FCC , CE ,ROHS approval .

* Professional factory with long OEM&ODM experience of LED Plug PL G23 G24 CFL

Real picture :

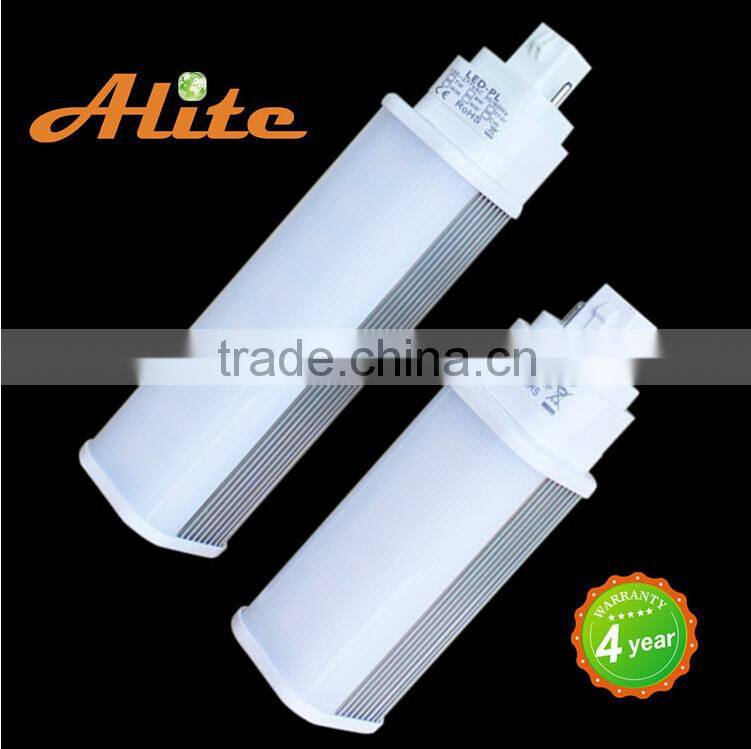

North Americal UL/cUL(E343952) 9w G24 led lighting

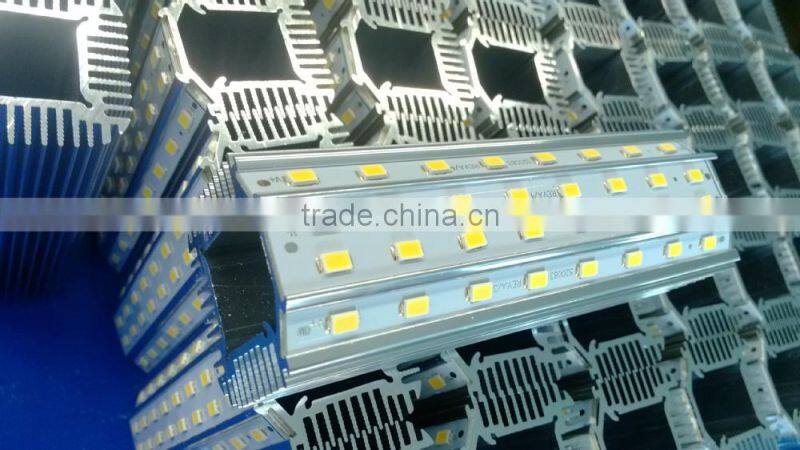

LM-80 certified SMD 5630 of led PL light





Disspation of  led PL light

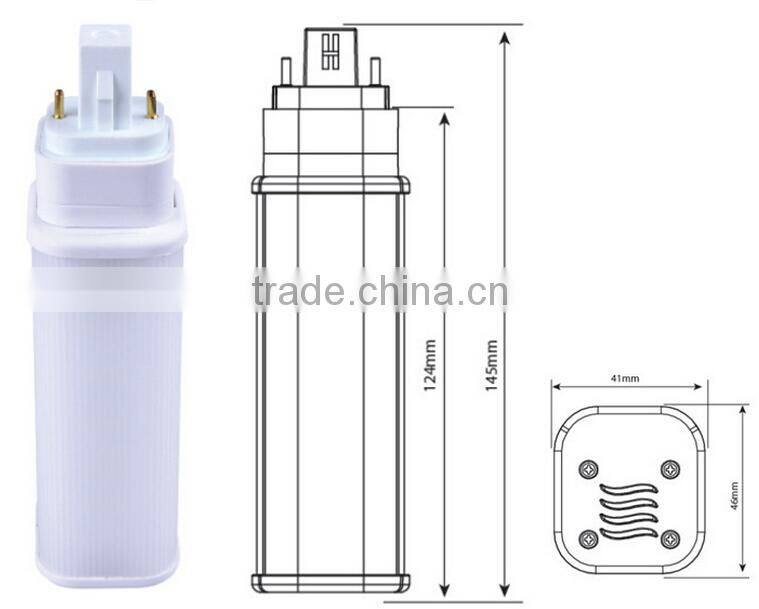

 Size :

North Americal UL/cUL(E343952) 9w G24 led lightingNorth Americal UL/cUL(E343952) 9w G24 led lighting

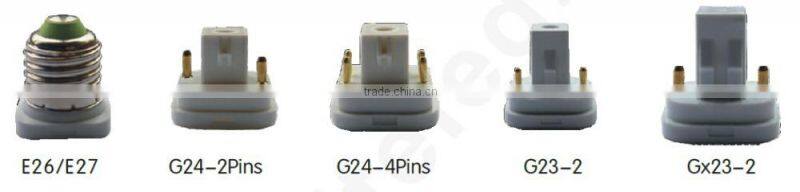

Available Base for PL :

North Americal UL/cUL(E343952) 9w G24 led lighting

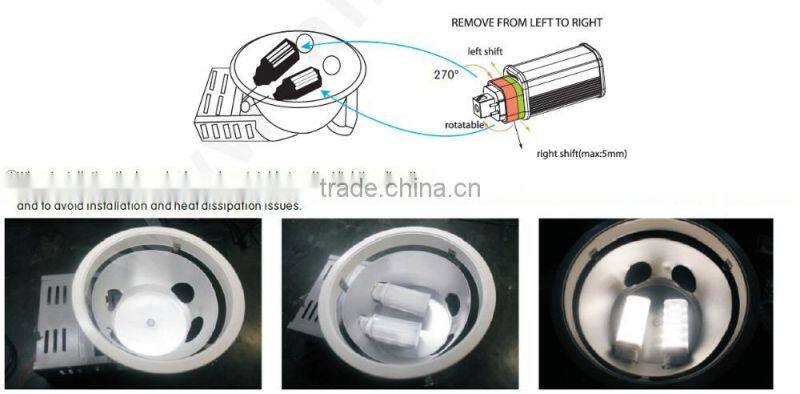

Installation :

North Americal UL/cUL(E343952) 9w G24 led lighting

Application:

Corridor ,Lobby , Bank lobbies etc indoor lighting .

North Americal UL/cUL(E343952) 9w G24 led lighting

Packaging :

Qty/Carton : 40pcs

Gross weight :11Kg

Size : L530*W270*H410MM



Shipping :

Express : Fedex ,DHL ,UPS ,TNT etc

Air Transportation

Sea Transportation



G24 LED PL light series :

North Americal UL/cUL(E343952) 9w G24 led lightingNorth Americal UL/cUL(E343952) 9w G24 led lighting



If any interesting on the North Americal UL/cUL(E343952) 9w G24 led lighting, please don't hesitate to inquiry!
