- Ø 4 PCS low illumination 720P WiFi HD IP camera ;
- Ø 1 PCS 1080P wifi HD Network Video Record ;
- Ø 2.4 G wireless WIFI transmission video, free of wiring ;

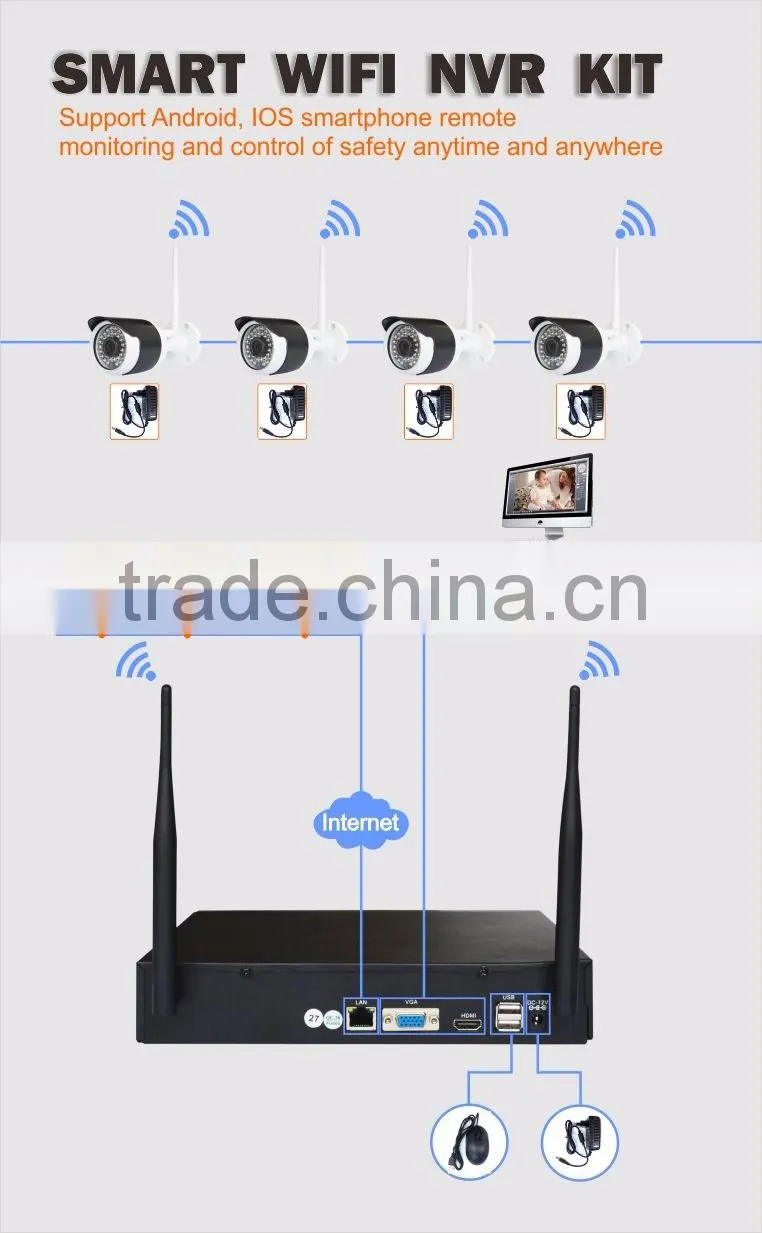

- Ø Using Smart link technology, wireless cameras and wireless Network Video Record handshake connection automatically, without setting;
- Ø Plug and play, the equipment is automatically added after the power supply, wireless Network Video Record output image;

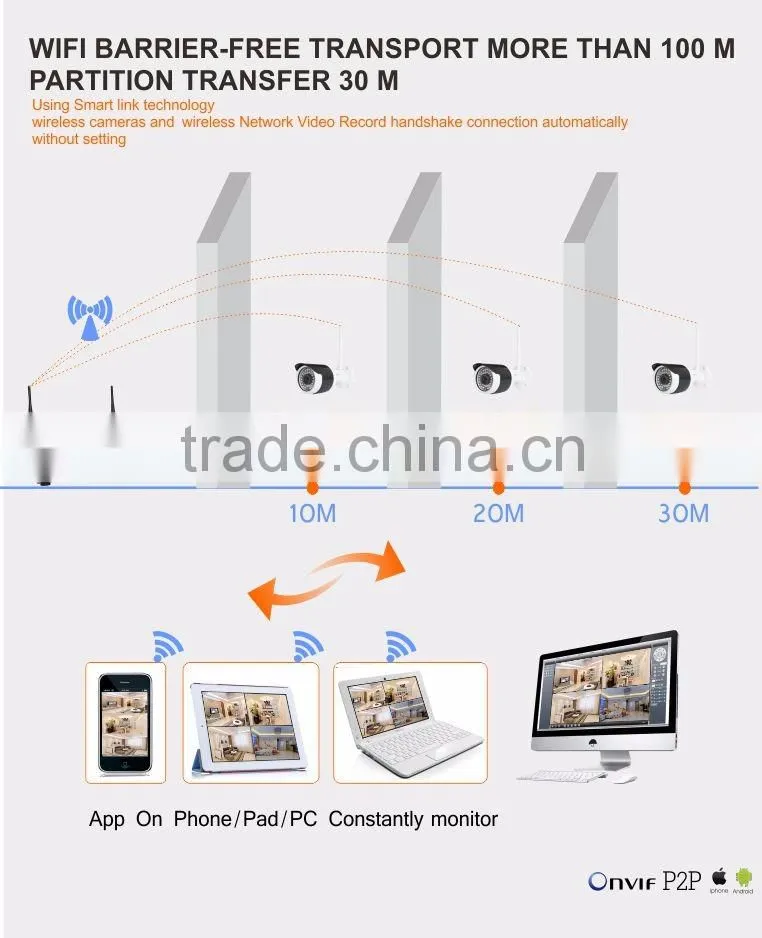

- Ø Dedicated enhanced WIFI module, wireless WIFI barrier-free transport more than 100 metres, partition transfer 30 meters, stable and reliable;
- Ø Support Android, IOS smartphone remote monitoring and control of safety anytime and anywhere;
- Ø High-definition cameras maximum resolution of 1280 * 720, higher resolution;
- Ø 1/4 " Low degree illumination 1.0Mega pixels image sensor, the night is clear, the day delicate picture;
- Ø Wireless Network Video Record output image of 1080P, the image quality is more delicate, more clear;

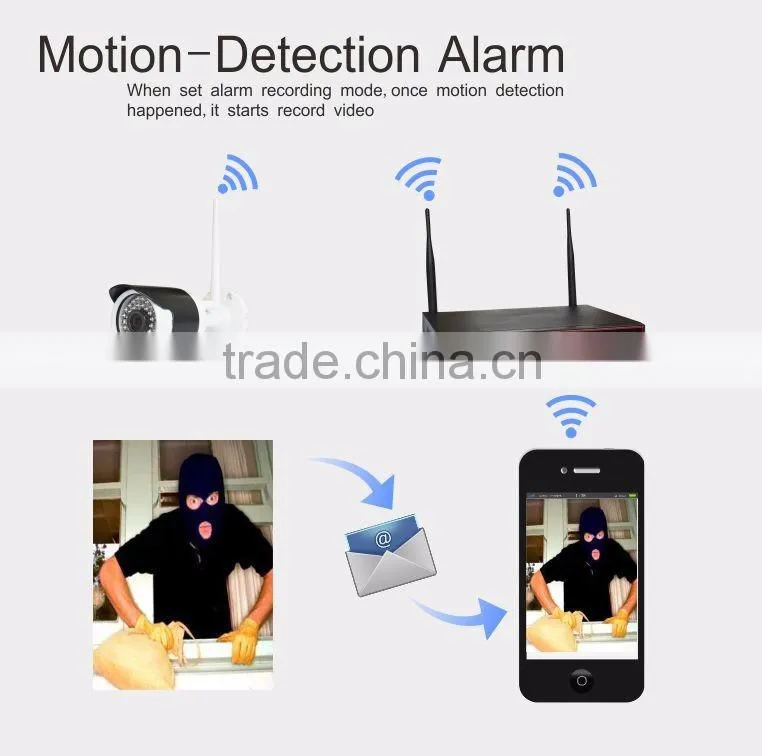

- Ø WIFI high-definition cameras, supporting 4 road Motion detection alarm, can effectively monitor the personnel to enter;
- Ø WIFI high-definition cameras, supporting the four privacy area, which can effectively avoid sensitive monitoring area, can be arbitrary protection camera;
- Ø The h. 264 High profile efficient video coding compression technology, guarantee the data stream compressed lower bandwidth, WiFi channel less pressure, transmission is more stable.
Model |
AS-7104-FA |
WIFI 720P WIFI HD IP camera | |
Image sensor |
1/4" 1.0M Pixel Aptina CMOS OV9712 |
Minimum illumination |
0.5Lux F1.2(color);0.05 LuxF1.2(B/W);0Lux (ir on) |
S/N Ratio |
≥39dB |
Shuttle time |
1/5 - 1/20,000s,support slower shutter |
Day/night |
Auto(ICR)/Color/B/W |
Gain Control |
Auto/manual |
White Balance |
auto, indoor, outdoor, sodium lamp mode, manual |
WDR |
Digital WDR |
DNR |
Support DNR,3DNR |
Compression |
H.264 High profile / M-JPEG |
Audio |
Audio compression:G711,PCM 1ch output :linear , impedance 1KΩ, 1 way output ,linear 600 . |
Maximum resolution |
1280x720 30fps |
Video resolution |
Main stream(1280×720,720×576,640×480) |
Under stream(640×480,352×288,320×240,176×144) | |
Output rate |
Constant bit rate(CBR)variable bit rate(VBR), setting range:32K~10M |
motion detection |
Support ,4 motion detection area |
Privacy zone |
Support ,4 privacy area |
Mobile phone remote |
Support Android,IOS smart phone |
Protocols |
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,802.1X,P2P |
Compatibility |
support hikvision, Dahua, Xiong Mai CMS . electrical connection, supports leading NVR NVR I8 ONVIF platform ONVIF protocol access |
network interface |
1ch 10/100BaseT Ethernet RJ45 interface |
WIfi |
2.4G, |
WIFI transmission distance |
no obstacle distance of 60m above the wall up 20 meters, the actual transmission distance depends on the circumstances |
Power Supply |
12VDC 0.12A |
Dimension |
38x38x5mm |
Operation Temperature |
-30°C ~60°C |
Operation Humidity |
0%-90% RH(no condensation) |
Model |
NVR7104 |
|
|
4ch WIFI 1080P HD NVR |
|
System |
Main processor |
Industrial embedded micro-controller |
|
Operating system |
Embedded LINUX operating system |
Video |
Decodes standard |
H.264 High Profile Lever 4.2 |
|
Video output |
720P60,XGA,1080P60 |
|
Video input |
4*1080P/4*960P/4*720P |
Audio |
Decodes standard |
G.711 |
|
Voice talk |
No |
Recording and playback |
Video recording |
Manual recording, motion detection recording, timer recording, alarm recording |
|
Video playback |
1ch 1080P synchronous playback, playback speed can be adjusted 1/4,1/2,2X,4X |
Storage and backup |
each space |
Sideo:720P 20G/day;960P 25G/day |
|
Backup |
Supports hard disk, USB storage and backup |
Network |
Network protocols |
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP(IP auto searching ),P2P |
|
Phone |
Support iPhone,Android mobile phone monitoring |
|
Browser |
Support for browser IE |
WIFI |
Wifi module |
Built-in professional enhanced wireless receiver module |
|
WIFI antenna |
2 pcs 5dB antenna |
|
Transmission distance |
Without block accepts a distance of 100 meters, the actual transmission distance depends on the environment |
Interface |
video input |
4channel 1080Pnetwork input |
|
Audio output |
1ch VGA output ,1ch HDMI output |
|
Audio input |
No |
|
Audio output |
1 channel |
|
Alarm input |
No |
|
Alarm output |
No |
|
Network interface |
RJ45 10M/100Mbps/1000Mbps Adaptive Ethernet port |
|
USB |
2 USB 2.0 interface |
|
HDD |
Support 1 SATA HDD (max 4TB) |
Other |
Power Supply |
DC +12V /3A |
|
Power consumption |
5W(not including HDD and PoE) |
|
Working temperature |
-10℃-+55℃ |
|
Operating humidity |
10%-90% |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thank for your interest.
