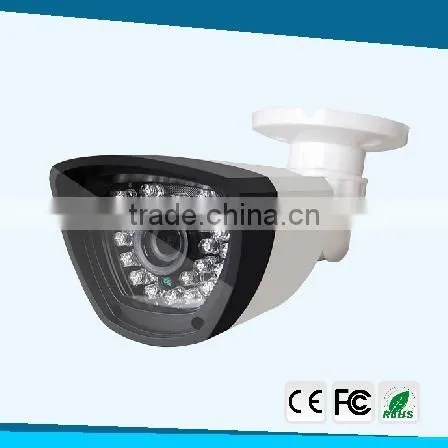

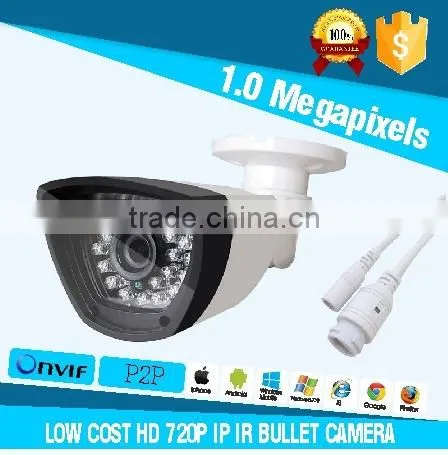

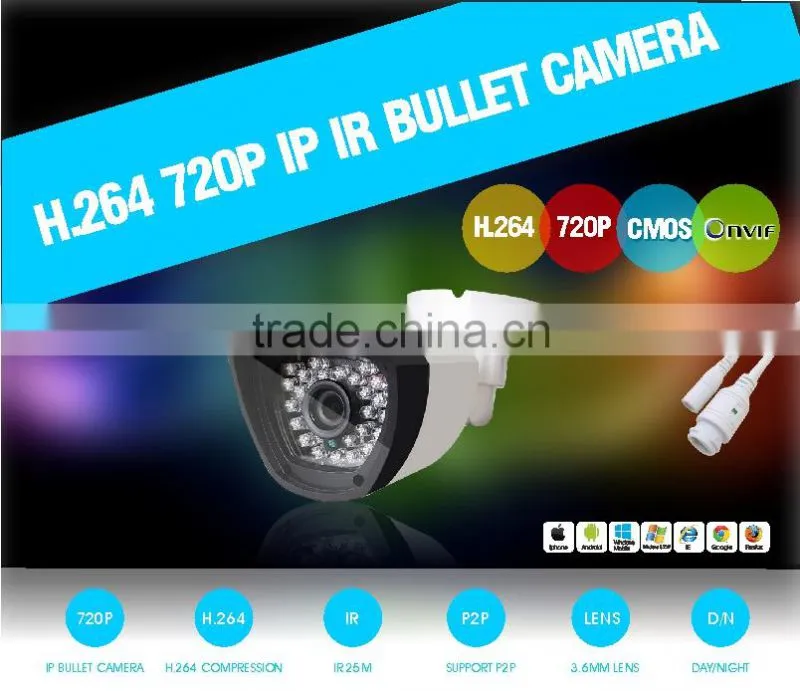

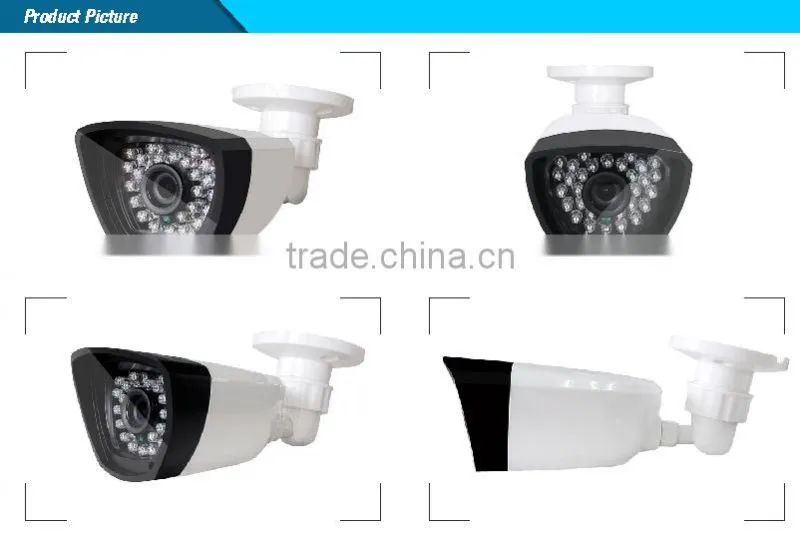

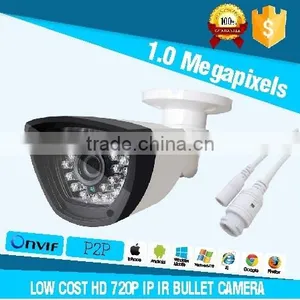

Help CenterIP66 1.0MP HD 720P IP CMOS Sensor IR 35M Smart Fixed Lens Dome Camera Cctv Surveillance Camera in Shenzhen
Related Products
-
SONY IMX322 1080P 2MP 4pcs Array Leds IP Camera ONVIF Waterproof Outdoor IR CUT Night Vision P2P Plug and Play Free ShippingUS$ 50.00 - 50.00MOQ: 10 Pieces -
2.0Megapixel 6.0-22mm Varifocal Lens Array LEDS HD Onvif IR-Cut P2P Function Security Network IP Bullet Outdoor CamerasUS$ 58.00 - 58.00MOQ: 10 Pieces
-
960P HD IP Camera Onvif 2.4 P2P for Smartphone Waterproof Vandalproof Support 120m IR Outdoor IP Bulet CameraUS$ 38.00 - 38.00MOQ: 10 Pieces
-
Waterproof 1280 x 720P 1.0MP Outdoor IP Camera 4 Array LED Bullet Security Camera ONVIF Night Vision P2P CCTV Cam w/ IR-CutUS$ 34.00 - 34.00MOQ: 10 Pieces
-
Price ip Cctv Camera 1.0mp Onvif hd Waterproof Color ir Network Bullet CameraUS$ 29.00 - 29.00MOQ: 10 Pieces
Camera:
1/4" 1.0 Megapixels Progressive Scan OV9712 CMOS, Hi3518E Chipset, the highest resolution of 1280 * 720, 0.6 Lux@ F1.2 (color); 0.08 Lux@ F1.2 (black and white ); IR-CUT (day/night), H.264 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/4" 1.0 Megapixels Progressive Scan OV9712 CMOS
2.Max 1-25fps@ 1.0 Megapixels (1280×720)
3.Min. Illumination:0.6 Lux@ F1.2 (color); 0.08 Lux@ F1.2 (black and white )
4. H.264 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.

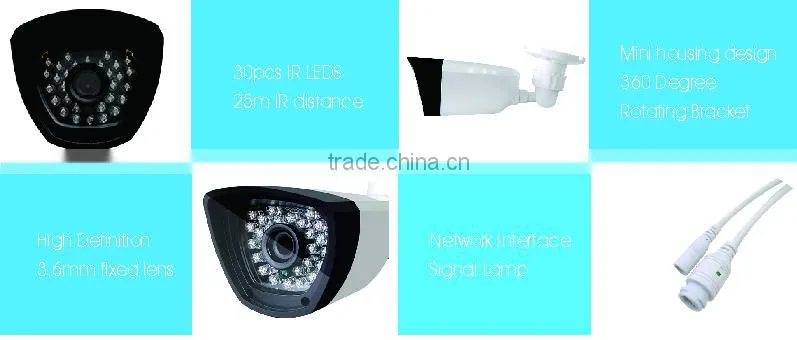

6.3.6mm Fixed Lens, 30pcs Ø5 LEDs, up to 25m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function
| Form parameters | ||
| Mode | Name and Description |
H.264 1.0MP HD IP Color IR Mini Bullet Camera |
| ASIH20-B2-009 | ||
| Camera Specification | Media Processor | Hi3518E+ OV9712 |
| Image Sensor | 1/4" 1.0 Megapixels Progressive Scan OV9712 CMOS | |
| Effective Pixels | 1280(H)x720(V) | |
| Shuttle time | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.6Lux/F1.2(Color) 0.08Lux/F1.2(B/W) | |
| Lens Specifications | 3.6mm Fixed Lens (6/8 optional) | |
| Day/Night Mode | Auto(ICR)/Color/B/W | |
| IR Distance | 30pcs Ø5 LEDs, up to 25m IR distance | |
| S/N Ratio | ≥39db(AGC OFF) | |
| Image | Compression | H.264/MJPEG |
| Max Image Size | 1280(H)x720(V) | |
| Stream | Dual-stream | |
| Frame Rate | Main Stream : | |
| 1280*720,1-25fps | ||
| Sub-stream : | ||
| 704*576,1-6fps ; 320*240,1-25fps | ||
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/INTP/ IPPPOE/ISMTP/IUPNP |
|
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Audio in | Support |
| Audio out | Support | |
| BNC Video out | N/A | |
| Memory Card | N/A | |
| RS422/RS485 | N/A | |
| USB | N/A | |
| Alarm in | N/A | |
| Alarm out | N/A | |
| IO Interface | Support (Reset ) | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Installation | Equipped With Bracket | |
| Dimension | 200×70× 65(mm) | |
| Weight | 0.4kg | |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
