Zhejiang Yuesui Electron Stock Co.,Ltd. whether Guangzhou Yuesui group belong to the branch company, located in the industrial satellite town of Wenzhou of China --Leqing city Hongqiao town, company since establishing 1989, base on high starting point , high-standard, high benefit build first-class enterprises, insist on depending on the scientific and technological progress, adopt advanced technology extensively , is developing the new products constantly, have made the excellent production business performance. The happy electronic Limited Company of ear of grain of Zhejiang is the development engaged in the electronic devices and components and cell-phone vibration electrical machinery mainly, professional manufacturer developed , produced , sold. The company has insisted on depending on the scientific and technological progress for many years, have adopted advanced technology extensively, develop the new products constantly, there are the main products for more than 200 varieties , such as household appliances and related switch , socket , connector , little electrical machinery of communication apparatus ,etc.. The company got ISO9002 certiticate of quality system authentication in 1995, obtained 2000 editions of ISO9001 certiticate of quality system authentications in 2002. Will pass the ISO14000 environment management system certificate in 2004.
| 1.Standard atmospheric condition | |
| Operating temperature range | -30℃ ~ 85℃ |
| Storage temperature range | -40℃ ~ 85℃ |
| Rated voltage | DC 12V |
| Rated current | DC 1A |
| Humidity range | 85%RH MAX |
| 2.Electrical characteristics | |
| Dieletric strength |
AC 500V 1minute 1mA between terminals,No Breakdown |
| Insulation resistance | DC 500V,≥100MΩ |
| Contact resistance | Using gauge plug,≤30mΩ |
| 3.Machinery characteristic | |
| Action force | 3~29N |
| Screw hole strength |
Foundation have not crack, Screw has not skid |
| Action experimen |
Contact resistance ≤60mΩ Appearance inspection no abnormal condition |
| Natural fall experiment |
No abnormal in structure, in line with the electronic characteristics, the base to allow slight scathe, but not break down, allowing deformation of terminal |

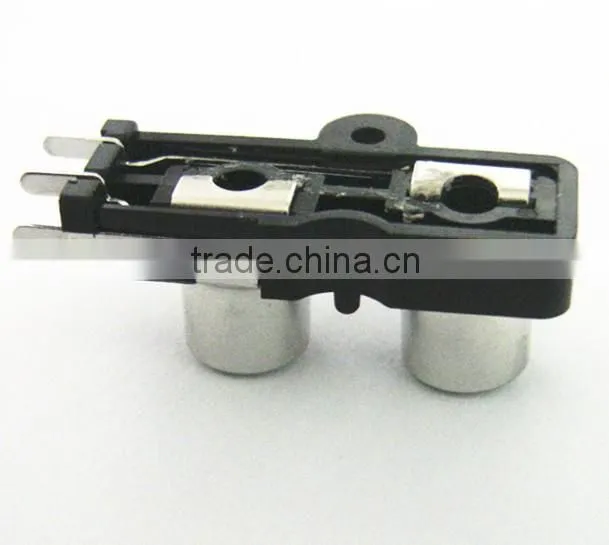

PICTURE:

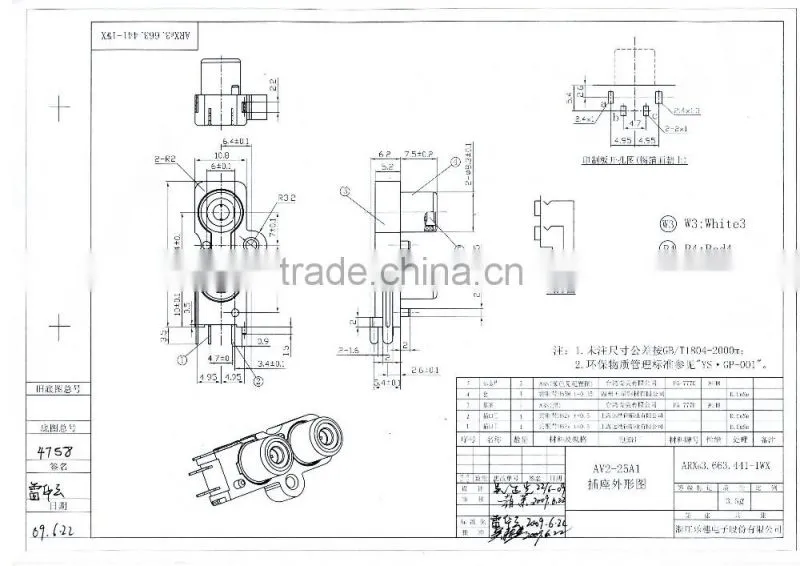

DRAWING:
Package:120PCS/BAG,3600PCS/CARTON
Shipping port:Ningbo,Shanghai
Delivery time:within 7-10 days
Delivery term:air or shipping
Provide free sample.(About 10pcs)
OEM & ODM available
Certificate:ISO9000,TS16949,ISO14000 ect.
Terms of trade:FOB,CIF,CPT ect.
There are a variety of advanced production and test equipment.
Provide the free sample
The minimum quantity of the order is 500pcs.
We always deliver the goods within 3-5 days after we received the payment.
Welcome to visit the factory
