I.Intro:
Based on horizontal continuous casting for cast iron profile(dense bar),we've developed new casting tech ‘Vertical upward continuous casting’ in 2006, by using this tech we manufactured new kind of cast iron profiles ---Cast Iron Hollow Bar , which have been tested by chinese authority sector in mechanical industry and proved that the quality is much better than traditional sand-casting or centrifugal casting profiles . Our advantages including high density,zero deficiency,close final shape(tube),superb wear resistance,high purity,excellent machinability and fatigue strength etc.
II.Material:
we could supply the continuous cast iron profile as follow:
1.Ductile Cast Iron Pipe/bar(ISO:400-18/500-7/600-3/700-2/800-1)
---spheroidization rate 90% plus,ball diameter 7~8,ball number 400~600/mm2
---compare sand casting, at same strength, elongation increase 50~100%
2.ADI(Austempered Ductile Iron)
---σb≥1200Μpa,δ≥2%,ak≥35J/mm2
3.Gray Cast Iron Pipe/bar(ISO:150/200/250/300/350)
---Matrix: ferrite+pearlite
---σb=150-380 Mpa, HB=150-240, E=1.1-1.7*105Mpa
4. Alloy Gray Cast Iron Pipe/bar
--CrNiMo Cast Iron--CrMoCu Cast Iron--High Nb Cast Iron--VNb Cast Iron
--High B Cast Iron--High P Cast Iron--High Ni Cast Iron...
III. Specification:
---Cross-Section:Round,Rectangle,Elliptic,Hexagonal
---OD:60-320mm,Thickness:8-35mm

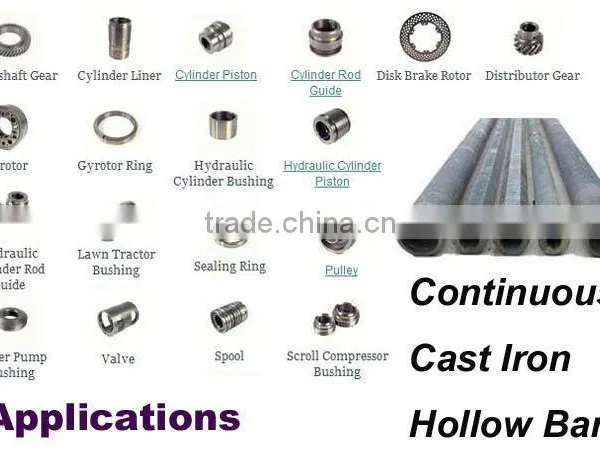

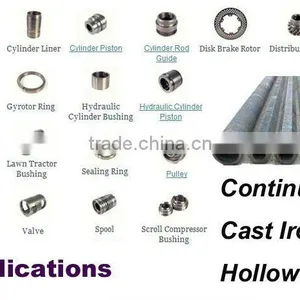

Our profiles could be widely used in mechanical industries,such as railway vehicle, oil machine,engineering machine,auto parts,compressor, hydraulic and pneumatics,chemical pump, machine tool,metallurgical equipment etc.Meantime, we also supply related products in blank, such as cylinder liner,piston ring,ADI bushing,sealing ring,suction pipe etc. By using our profile, the working life of our products will be 5 times than sand casting,and no pore,sonim... Adapt to strict requirments in precise manufacturing.
Field |
Part name |
machine tool
|
sleeve ,upright column ,clamp ring |
Oil and Gas
|
guide sleeves ,sealing ring, sliding sleeve
|
Industrial machineries |
axis sleeve, gear, kawa, wear-resistant sleeve, grinding sleeve
|
Oil drilling |
drillable packers/drillable bridge plug, suction vitta
|
Railway vehicle |
bogie bush, braking system bushing
|
Metallurgical equipment |
casting lift tube ,suction tube, thermocouple protect tube
|
Air-condition compression machine |
rolling piston ring
|
Automotive |
dry cylinder liner, piston ring, steering pump stator, gear
|
Tractorshipping |
dry cylinder liner, piston ring, steering pump stator, gear
|
Mine mechinanism |
wear resist sleeve, engine cylinder |
