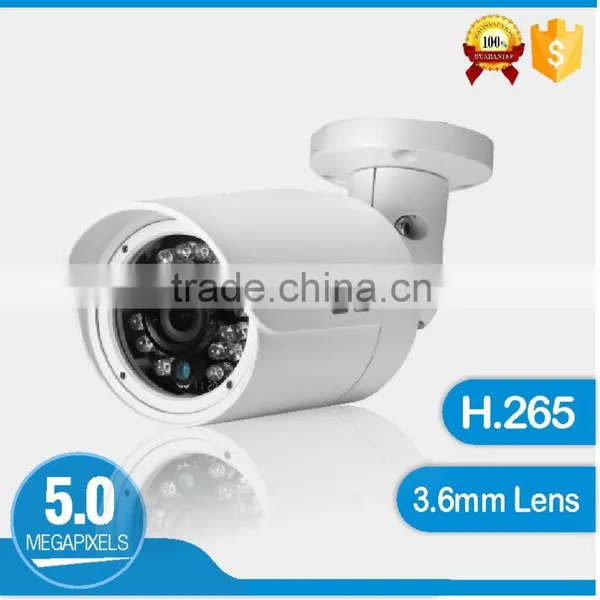

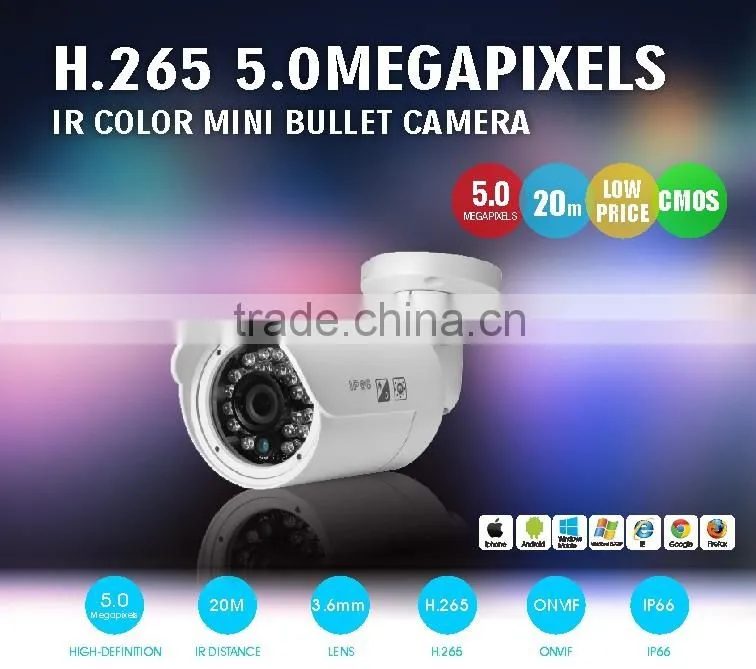

roduct Name: H.265 High Performance Low Pries 3.6mm Lens 5MP Color IR IP Mini Bullet CCTV Camera
Camera:
1/3" 5.0 Megapixels OV5658 CMOS Sensor ,Hisilicon Hi3516D Chipset, the highest resolution of 2592*1944, low illumination 0.05 Lux F1.2 (color); 0.01 Lux F1.2 (black and white) ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 5.0 Megapixels OV5658 CMOS
2.Max 1-10fps 5.0 Megapixels (2592*1944)
3.Min. Illumination:0.05 Lux F1.2 (color); 0.01 Lux F1.2 (black and white)

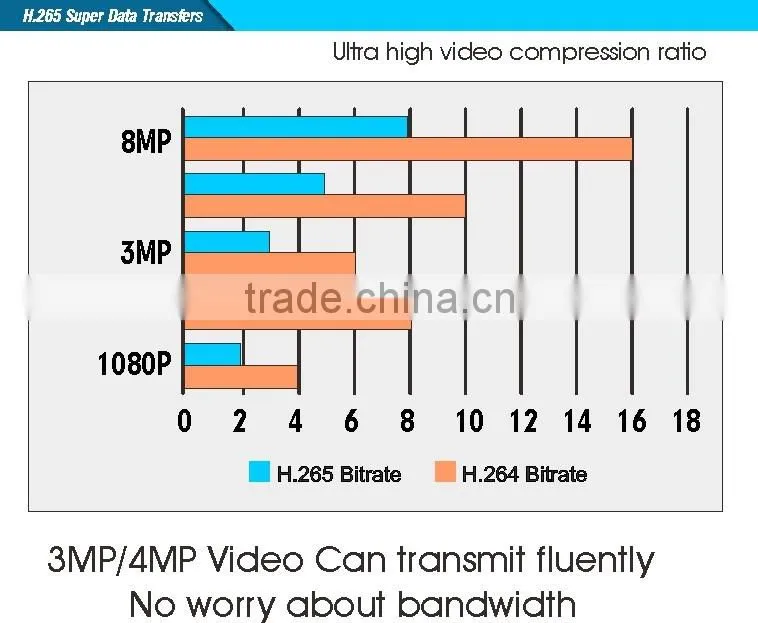

4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.3.6mm Fixed Lens, 24pcs Ø5 LEDs, up to 20m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating
| Mode | Name and Description | H.265 5.0MP IP Color IR Mini Bullet Camera |
| ASIH20-B4-4518 | ||
| Camera Specification | Media Processor | HI3516D+OV5658 |
| Image Sensor | 1/3" 5.0 Megapixels OV5658 CMOS | |
| Effective Pixels | 2592*1944 | |
| Shuttle time | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05 Lux F1.2 (color); 0.01 Lux F1.2 (black and white) | |
| Lens Specifications | 3.6mm Fixed Lens | |
| Day/Night Mode | Auto(ICR)/Color/B/W | |
| IR Distance | 24pcs Ø5 LEDs, up to 20m IR distance | |
| WDR | DWDR ≥80db | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Image | Compression | H.264/MJPEG/H.265 |
| Max Image Size | 2592(H)x1944(V) | |
| Stream | Dual-stream | |
| Frame Rate | Main Stream : | |
| 2592*1944, 1-10fps ;2048*1520,1-25(30)fps ;1920*1080,1-25(30)fps | ||
| Sub-stream : | ||
| 704*576,1-25(30)fps 640*352,1-25(30)fps | ||
| 640*480,1-25(30)fps 320*240,1-25(30)fps | ||
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP |
|
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Motion detect | Support |
| Privacy Zone Masking | Support | |
| Audio in | Support | |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | N/A | |
| Alarm in | Support | |
| Alarm out | N/A | |
| IO Interface | Support (Reset ) | |
| RS485 | Support | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimension | 172*65*62mm | |
| Weight | 0.48Kg |
