H.265 5.0Megapixels 3.3-10.5 Outside Adjust Varifocal Lens Network IP Waterproof Bullet CCTV Camera for CCTV Manufacturer Quality Choice
Negotiable
MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASIH40B3-3330
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sony124 0.001lux IP Starlight Full Color Bullet CCTV Camera With H.265 3.0Megapixels 2.8-12mm Lens IP Surveillance CameraNegotiableMOQ: 3 Pieces -
H.265 2.0MP 120dB Super WDR BLC HD IP Color IR Bullet Camera With 3Mpixes 2.8-12mm Manualvari-focal Lens IR 40mNegotiableMOQ: 3 Pieces
-
Super WDR H.265 2.0MP 120dB Network Camera BLC HD IP Color IR Mini Bullet CCTV IP Camera POE Optional IP66NegotiableMOQ: 1 Piece
-
Hisilicon Chipset H.265 5.0MP IP Network Bullet Camera IR 40m H.265 Security 5Mpixes 3.3-10.5mm CCTV CameraNegotiableMOQ: 1 Piece
-
4Mpixes H.265 IP Full Color IR Bullet Camera H.265 Security IP Network CCTV Camera Support Onvif POENegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
AST
Model Number
ASIH40B3-3330
Type
IP Camera
Style
Bullet Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
Detailed Images

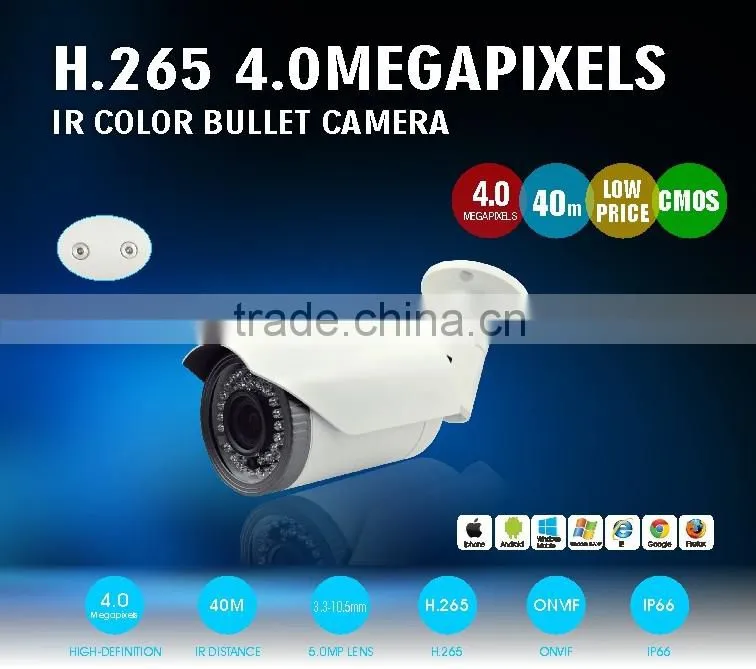

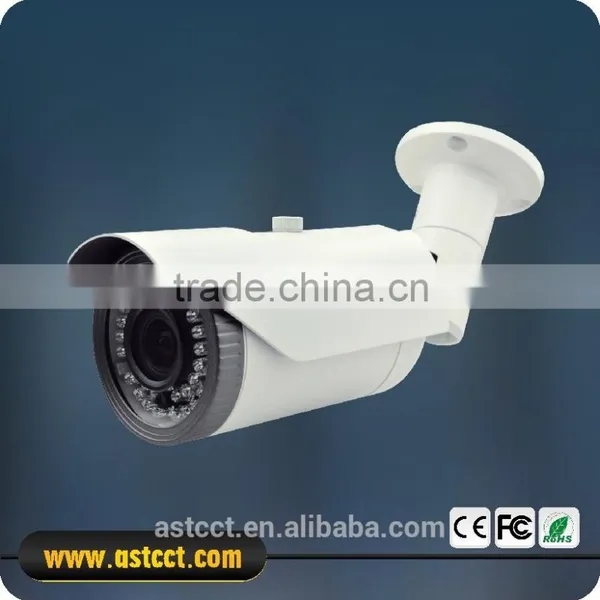

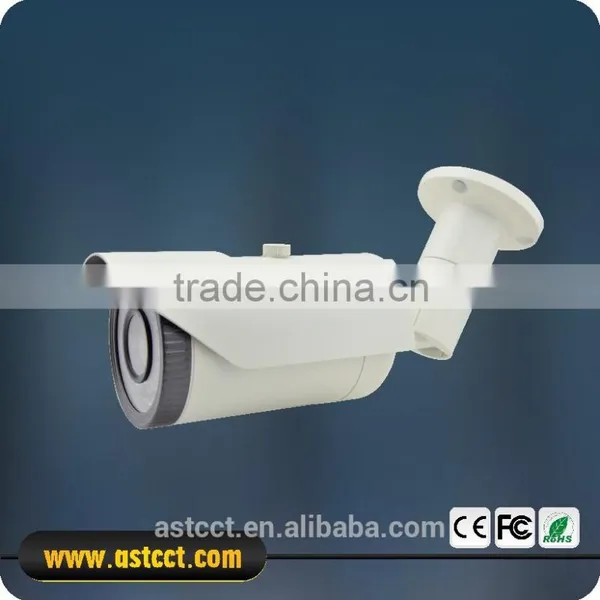

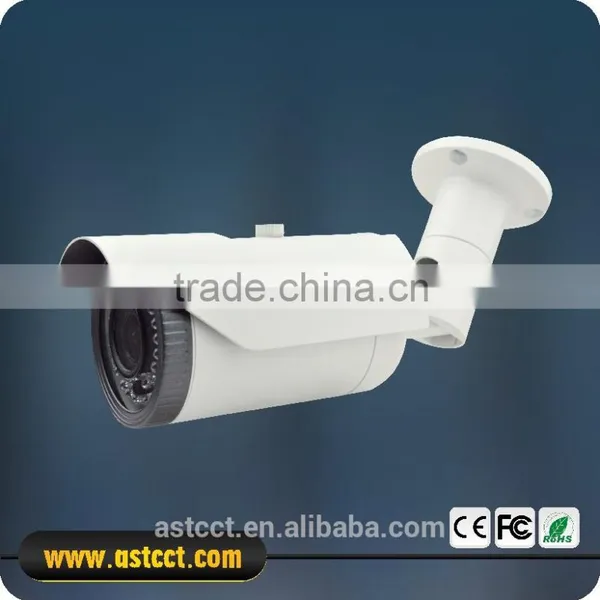

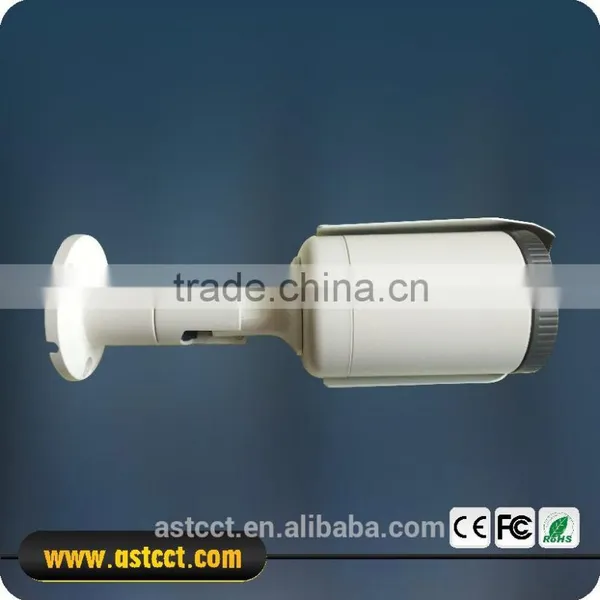

H.265 5.0Megapixels 3.3-10.5 Outside Adjust Varifocal lens Network IP Waterproof Bullet CCTV Camera for CCTV Manufacturer
Key Features

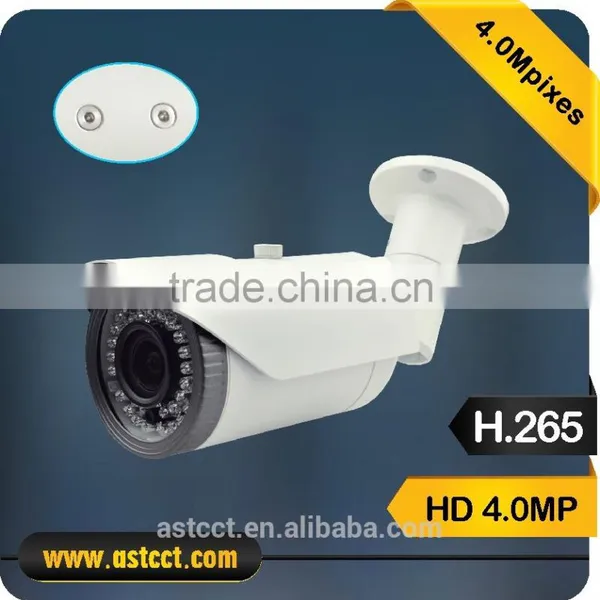

H.265 4.0MP IP Color IR Bullet Camera
Camera:
1/3" 4.0 Megapixels OV4689 CMOS Sensor ,Hisilicon Hi3516D Chipset, the highest resolution of 2592*1520, low illumination 0.6 LuxF1.2 (color); 0.08 LuxF1.2 (black and white) ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 4.0 Megapixels OV4689 CMOS
2.Max 1-15fps4.0 Megapixels (2592*1520)
3.Min. Illumination:0.6 LuxF1.2 (color); 0.08 LuxF1.2 (black and white)

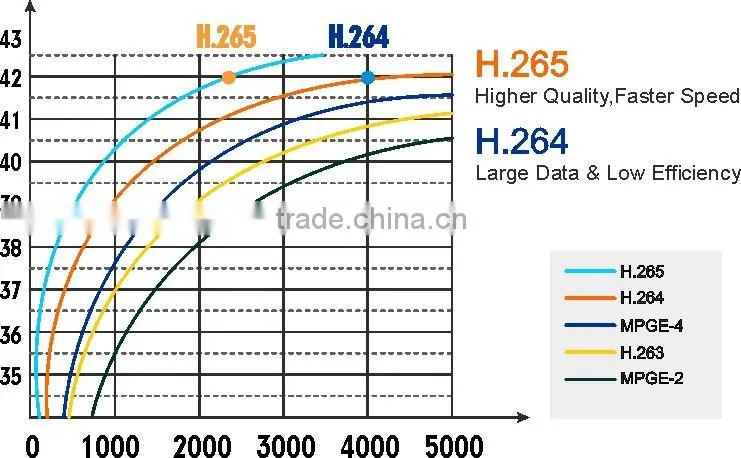

4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.

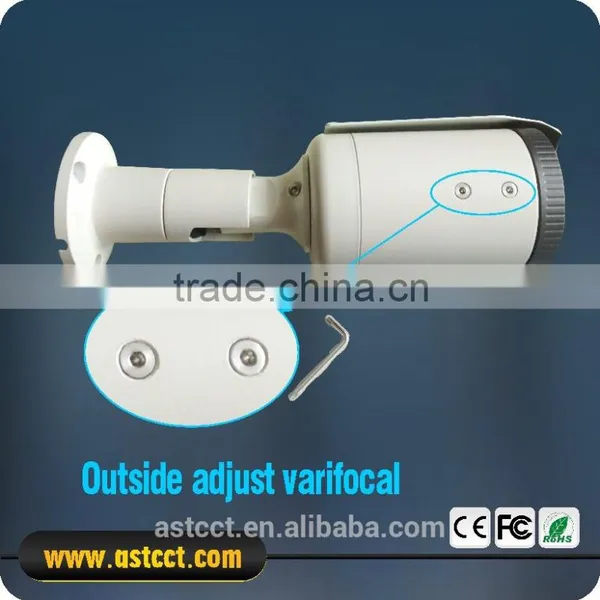

6.5Mpixes 3.3-10.5mm Manual vari-focal lens,42pcs Ø5 LEDs, up to 40m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating
Product Description
| Mode | Name and Description | H.265 4.0MP IP Color IR Mini Camera |
| ASIH40B3-3330 | ||
| Camera Specification | Media Processor | HI3516D+OV4689 |
| Image Sensor | 1/3" 4.0 Megapixels OV4689 CMOS | |

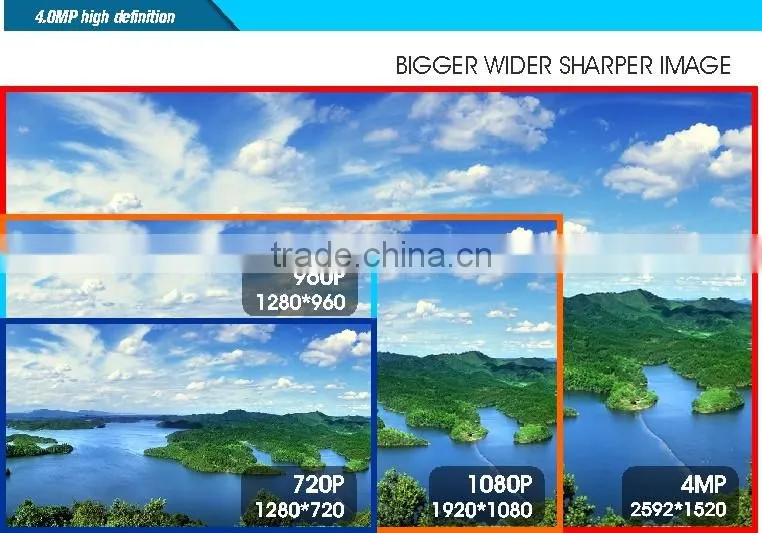

| Effective Pixels | 2592*1520 | |
| Shuttle time | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.6 LuxF1.2 (color); 0.08 LuxF1.2 (black and white) | |
| Lens Specifications | 5Mpixes 3.3-10.5mm Manual vari-focal lens | |
| Day/Night Mode | Auto(ICR)/Color/B/W | |
| IR Distance | 42pcs Ø5 LEDs, up to 40m IR distance | |
| WDR | DWDR ≥80db | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Image | Compression | H.264/MJPEG/H.265 |
| Max Image Size | 2592(H)x1520(V) | |
| Stream | Dual-stream | |
| Frame Rate | Main Stream : | |
| 2592*1520, 1-15fps ;2048*1520,1-25(30)fps ;1920*1080,1-25(30)fps | ||
| Sub-stream : | ||
| 704*576,1-25(30)fps 640*352,1-25(30)fps | ||
| 640*480,1-25(30)fps 320*240,1-25(30)fps | ||
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP |
|
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Motion detect | Support |
| Privacy Zone Masking | Support | |
| Audio in | Support | |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | N/A | |
| Alarm in | Support | |
| Alarm out | N/A | |
| IO Interface | Support (Reset ) | |
| RS485 | Support | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimension | 259.3*92.5*85.5mm | |
| Weight | 0.7Kg |
Packaging & Shipping
Size
FAQ
Certifications
Our company product obtain CE, RoHS, FCC ,IP66 certifications
