EPE Wrapping Sheet Extruding Machine
• Descriptions
PE foam sheet prduction line adopts advanced butane physical foam technology with high foam duct is the popular soft packing material in the market which is the many excellences , such as: moistureproof, shockproof, sound insulation,heat preservation and good plasticity.
• Purposes
It's widely use for packing electronic product, glass, porcelain, furniture, commodity, etc.Also it can be used as pad of bag/box, floor-pad, sport-pad and heat preservation layer of refrigeratory.
• Characteristics
Machine adopts explosion-proof motor, intelligent digital meter with safe and stable running, easy operation. Various EPE foam sheets can be produced continuously. And it can be produced foam pipe,stick and net if change relevent die and nould.
• Main Technical Parameter
Spec/Item | SFM75 | SFM90 | SFM105 | SFM120 | SFM150 |
Diameter of screw mm | 75 | 90 | 105 | 120 | 150 |
Max Width mm | 800-1200 | 1000-1500 | 1000-1500 | 1000-1600 | 1000-1600 |
Thickness mm | 0.5-2 | 0.5-3.0 | 0.5-5.0 | 1-8.0 | 1.5-12 |
Foaming rate | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
Productivity kg/h | 20-35 | 30-80 | 40-100 | 50-120 | 100-150 |
Installed capacitance kw | About 50 | About 60 | About 90 | About 120 | About 150 |
Cooling method | water | water | water | Water | water |
Installed dimension m | 19×3×3.2 | 22×3×2.2 | 22×3×2.2 | 24×3.2×2.4 | 26×3.8×2.6 |
Weight T | 4 | 5 | 8 | 10 | 12 |
(Friendly reminder: If you want to know more information and technology parameters, please contact with me directly! )

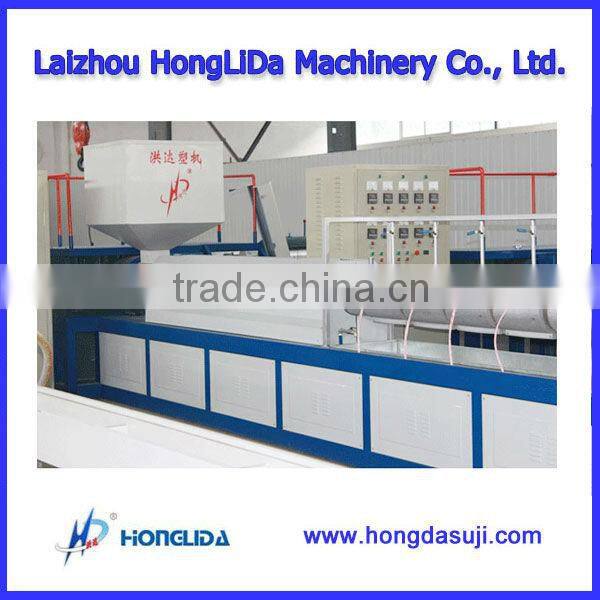

main body

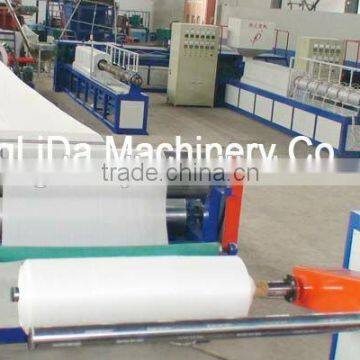

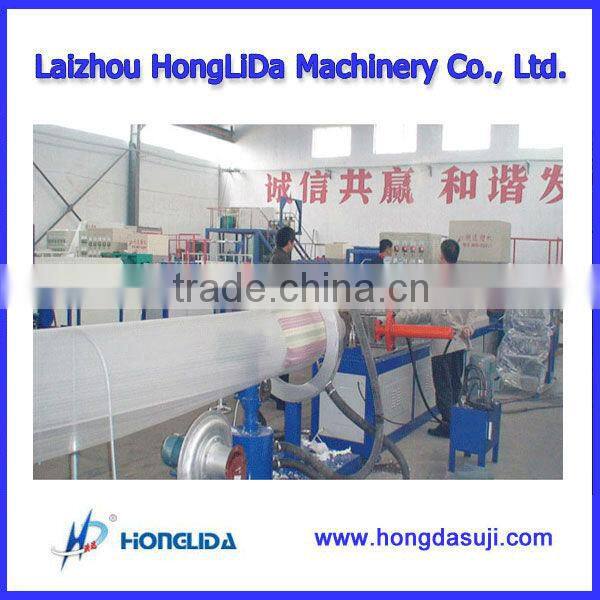

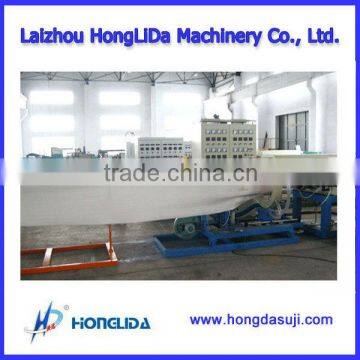

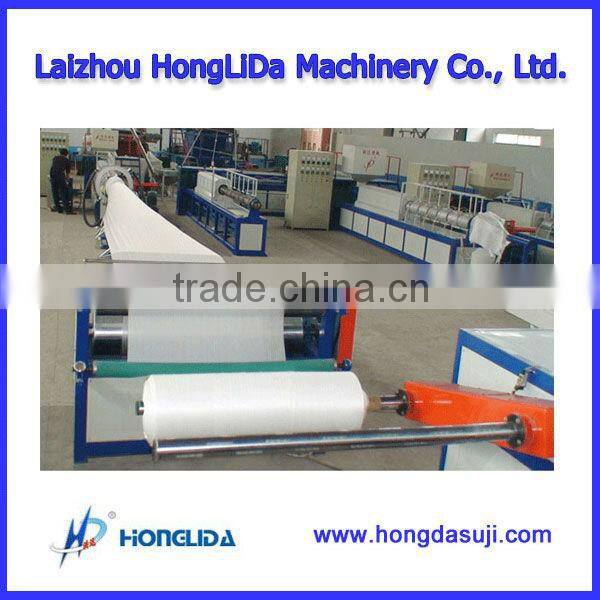

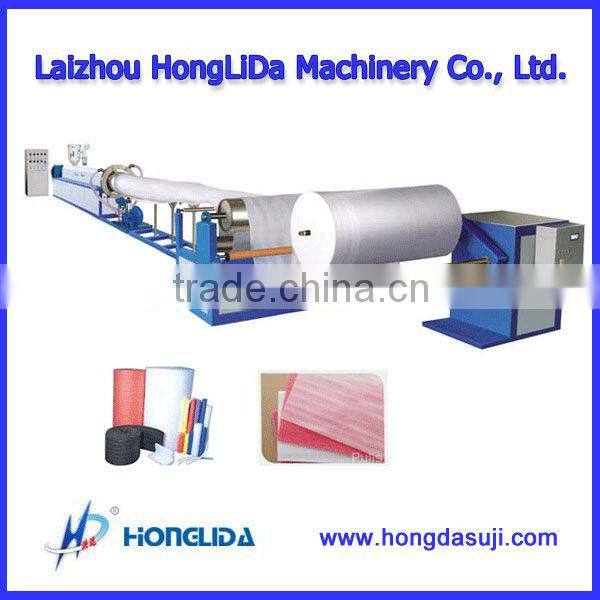

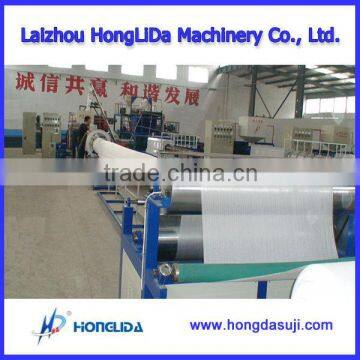

produce line
product of the machine
transport by container
factory
