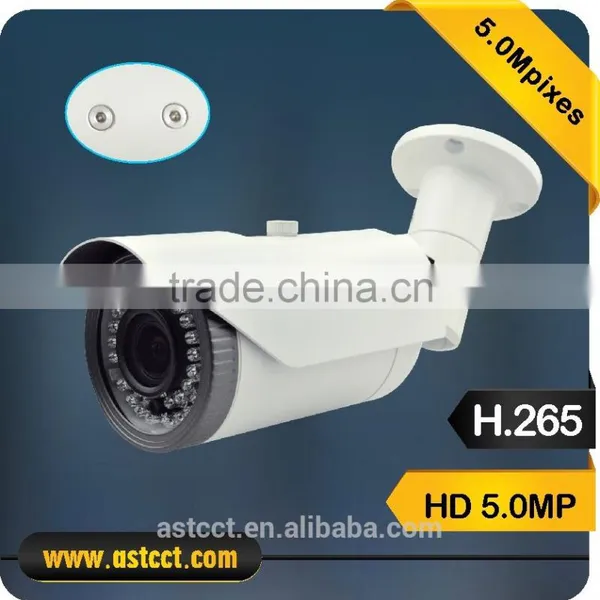

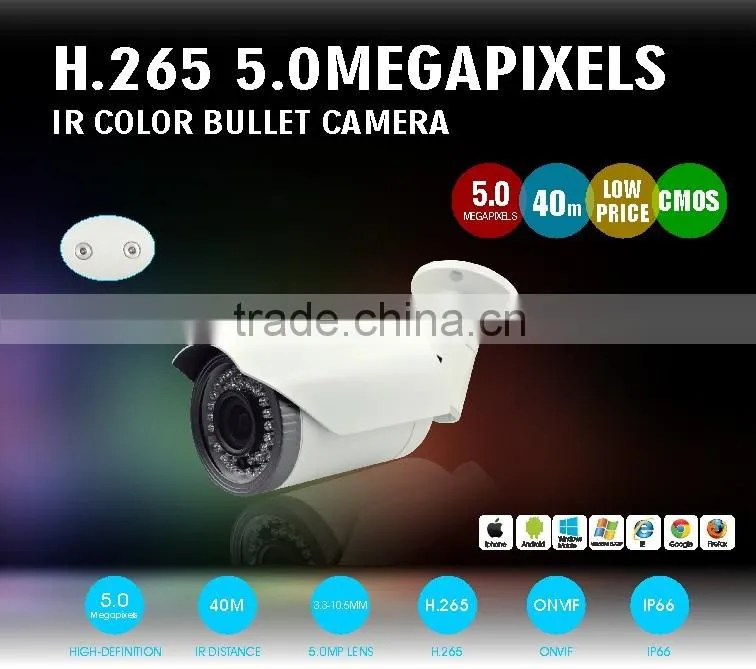

H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection thumbnail-1
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection thumbnail-2
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection thumbnail-3
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection thumbnail-4
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection thumbnail-5
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection thumbnail-6
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection photo-1
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection photo-2
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection photo-3
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection photo-4
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection photo-5
H.265 5Mpixels 3.3-10.5mm Lens IP Color IR Surveillance Cctv Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection photo-6
Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASIH40-B3-3518
Contact Supplier Request Quote Chat Now
Shenzhen Anxinshi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AST
Model Number ASIH40-B3-3518
Type IP Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
Detailed Images

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

Key Features

H.265 5.0MP IP Color IR Mini Bullet Camera



Camera:
1/3" 5.0 Megapixels OV5658 CMOS Sensor ,Hisilicon Hi3516D Chipset, the highest resolution of 2592*1944, low illumination 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white) ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.



Key Features:

1.1/3" 5.0 Megapixels OV5658 CMOS
2.Max 1-10fps5.0 Megapixels (2592*1944)
3.Min. Illumination:0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white)
4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.5Mpixes 3.3-10.5mm Manual vari-focal lens, 42pcs Ø5 LEDs, up to 40m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating



H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection


Product Description
Mode Name and Description H.265 5.0MP IP Color IR Bullet Camera
ASIH40-B3-3518
Camera Specification Media Processor HI3516D+OV5658
Image Sensor 1/3" 5.0 Megapixels OV5658 CMOS
Effective Pixels 2592*1944
Shuttle time Auto (1/25 ~ 1/10000s)
Min. Illumination 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white)
Lens Specifications 5Mpixes 3.3-10.5mm Manual vari-focal lens
Day/Night Mode Auto(ICR)/Color/B/W
IR Distance 42pcs Ø5 LEDs, up to 40m IR distance
WDR DWDR ≥80db
S/N Ratio ≥50db(AGC OFF)
Image Compression H.264/MJPEG/H.265
Max Image Size 2592(H)x1944(V)
Stream Dual-stream
Frame Rate Main Stream :
2592*1944, 1-10fps ;2048*1520,1-25(30)fps ;1920*1080,1-25(30)fps
Sub-stream :
704*576,1-25(30)fps   640*352,1-25(30)fps
640*480,1-25(30)fps   320*240,1-25(30)fps
Bit Rate 32KB ~16Mbps; support VBR; CBR
Text Overlay Channel; Date & Time; Bit Rate
Network Data Storage Video record; Picture format
Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
Alarm data transmission FTP; E-mail; Browser; CMS
Protocol TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/
INTP/IPPPOE/ISMTP/IUPNP
ONVIF ONVIF 2.4
Max. User Access 10 users; IE; Google; Firefox
Smart Phone Windows Mobile; iPhone; iPad; Android
Interface Motion detect Support
Privacy Zone Masking Support
Audio in Support
Audio out Support
BNC Video out Support
Memory Card N/A
Alarm in Support
Alarm out N/A
IO Interface Support (Reset )
RS485 Support
General Parameters Power Supply DC12V
Operation Temperature -20℃ - +50℃
Operation Humidity Less than 95%RH(no condensation)
Weather Proof Rating IP66
Installation Equipped With Bracket
Dimension 259.3*92.5*85.5mm
Weight 0.7Kg





H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

Packaging & Shipping



 H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

Size

 H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion DetectionH.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection



FAQ
H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection
Certifications

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection

Our company product obtain CE, RoHS, FCC ,IP66 certifications

H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection
