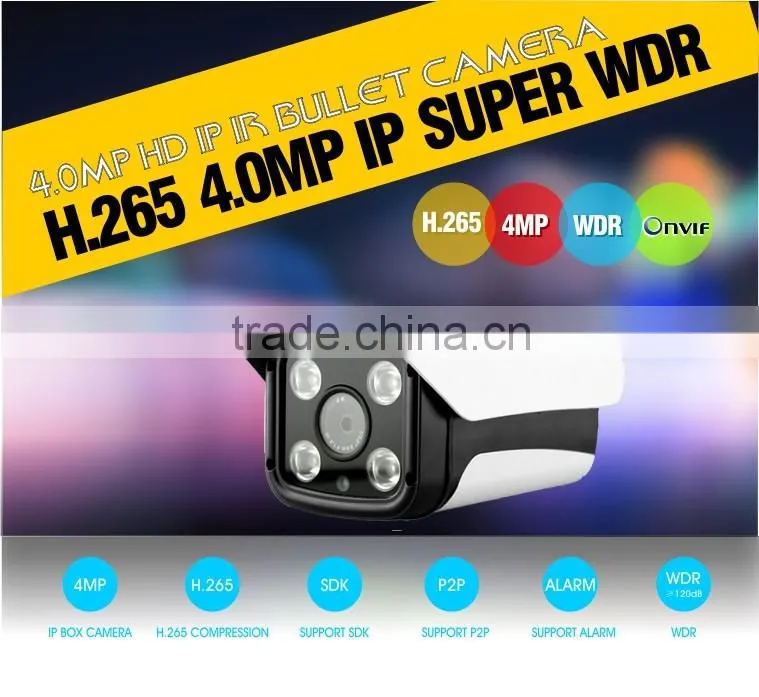

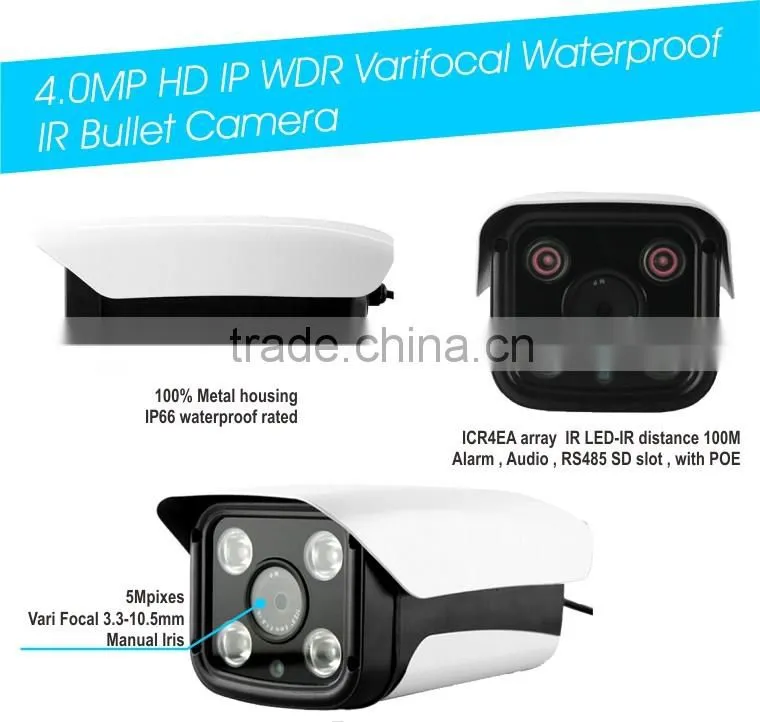

4.0MP HD IP WDR Vari focal outside adjust IR Bullet Camera be compatible with Hikvision DaHua NVR and platform management software
Camera:
1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 2592*1520, 0.05 Lux@ F1.2 (color); 0.01 Lux@ F1.2 (black and white ); TF card slot, IR - CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS
2.Max 25/30fps@ 4.0 Megapixels (2592*1520)
3.H.264/H.265 & MJPEG dual-stream encoding
4.Privacy Mask, Motion Detection
5 Support Onvif 2.4 protocol
6.IR Distance 100M
7. TF Card Slot,WDR≥120dB
8.NVR Compatible:Hikvision DaHua &the NVR With onvif Protocols
9.POE function
10.IP66 rating
11.Equipped with bracket
| Form parameters | ||
| Mode | Name and Description |
ASIH60-B42-3421 4.0MP HD IP WDR Vari focal outside adjust IR Bullet Camera |
| ASIH60-B42-3421 | ||
| Camera Specification | Media Processor | Hi3516A + OV 4689 |
| Image Sensor | 1/3” 4.0 megapixels Progressive OV 4689 CMOS | |
| Effective Pixels | 2592(H)x1520(V) | |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05 Lux@ F1.2 (color), 0.01 Lux@ F1.2 (black and white) | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Lens Specifications | 5Mpixes Vari Focal 3.3-10.5mm Manual Iris | |
| Day/Night Mode | Auto,dual IR-Cut filter | |
| IR Distance | 100m | |
| WDR Dynamic Range | 120dB | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Digital Denoise | 3D Digital Denoise | |
| Compression | Compression | H.264/MJPEG/H.265 |
| Resolution | 2592*1520/2048*1520/1080P(1920×1080)/D1(704×576)/VGA(640*480)/QVGA(320×240) | |
| Main Stream Frame | 2592*1520/2048*1520/1080P(1 ~ 25/30fps) | |
| Sub Stream Frame | D1/VGA/QVGA(1 ~ 25/30fps) | |
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP | |
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Audio in | Support |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | Support | |
| RS422/RS485 | Support | |
| USB | Support (64G USB flash/WIFI/3G) | |
| Alarm in | Support | |
| Alarm out | Support | |
| IO Interface | Support | |
| General Parameters | Operating Conditions | -30℃ ~ 60℃,Humidity less than95%(Non-condensing) |
| Power Supply | DC12V±10%/ PoE(Optional) | |
| Power Consumption | <10W | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimension | 215*110*90mm | |
| Weight | 0.96Kg | |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
