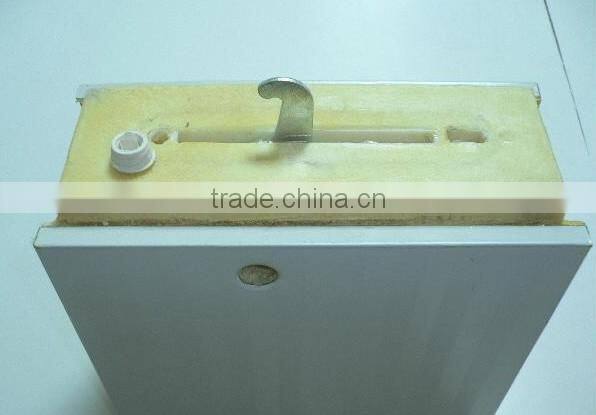

cold room panel with cam lock/ cold room insulation panels
Overview of cold room insulation panels
Wall and roof are use Cold room panel
Different cold room temperature use different thickness wall and roof panel:
Cold room temperature |
Thickness of wall and roof panel |
5~15 degree |
75mm |
-15~5 degree |
100mm |
-15~-20 degree |
120mm |
-20~-30degree |
150mm |
Lower than -30degree |
200mm |
Components: Polyurethane sheet, and two surface with white pre-paint galvanized steel or stainless steel.
PU(mm) |
0.3 |
0.4 |
0.5 |
Photo |
||
50 |
20 |
22 |
24 |
|
||
75 |
22 |
24 |
26 |
|||
100 |
24 |
26 |
28 |
|||
120 |
27 |
30 |
32 |
|||
150 |
32 |
33 |
36 |
|||
200 |
40 |
42 |
45 |
Fire resistance stage: B2, remove fire 3-5 seconds with Extinguish.
Floor panel:
Generally we have several different solutions:
- 1. Large cold storage, need use forklift to move goods, we will offer 150mm XPS sheet for floor, when installation, need cover 10~15cm cement to seal and fix.
- 2. Middle cold storage, just need use trolley to move goods, we will supply 1.5~3mm anti-sliding stainless steel sheet or anti-sliding aluminum sheet for floor. And floor insulation layer is same with wall and roof panel. Anti-sliding sheet can be connected with insulation layer, but the produce cost will very high
- 3. Small cold storage, floor panel is same with wall and roof panel. Because the floor no need to bear heavy load.
Characteristics of cold room insulation panels
1.Dimensions: depend on your stroage capacity. From 500kg to 500T is available
2. Room Temp.: -10°C to 18 °C
3. Refrigerant: R22/R404a
4. Thickness of panel: depend on your require or we design
5. refrigeration Unit: according to the temp. and the dimensions
6. Door : Swing door or Sliding door and bifold door is optional
7. Documents: complete documents such as instruction, operation manual, wire diagram, good list, certification and so on
The main equipments and materials of cold room insulation panels :
1. Refrigeration system:
1 Compressor: Copeland,
2 Condensing units: air cooler.
3 Evaporator: air cooler.
4 Coolant: R22 or R404a is available.
2. Electric controlling system:
Schneider electric components, digital display for temperature setting and reading, automatic and manual control, warning light for running failure.
3. PU Insulation panel, cold store panels:
1 Material: polyurethane (PU), metal sheet.
2 Density of PU: 35~42kg/m3
3 Metal sheet:according to requirements
4 Thickness of panel: 50mm,75mm,100mm,120mm,150mm,200mm
Panel Thickness Table Due to 300c-450c and K Value Table
mm |
m2K |
m2h°C |
°C |
50 |
0.315 |
0.270 |
+10°C / 5°C |
75 |
0.238 |
0.205 |
+5°C / -5°C |
100 |
0.188 |
0.162 |
-5°C / -12°C |
120 |
0.155 |
0.132 |
-12°C / -20°C |
150 |
0.126 |
0.109 |
-20°C / -30°C |
200 |
0.095 |
0.800 |
-30°C / -40°C |

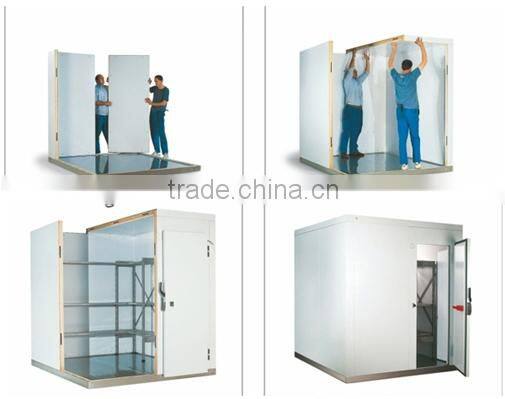

Installation of cold room
We offer customized design service according to your special requirements.
skype:cold.rooms
