CFC free cold storage panel
Overview of panel
characteristics for CFC free cold storage panel:
1.Dimensions: depend on your stroage capacity. From 500kg to 500T is available
2. Room Temp.: -10°C to 18 °C
3. Refrigerant: R22/R404a
4. Thickness of panel: depend on your require or we design
5. refrigeration Unit: according to the temp. and the dimensions
6. Door : Swing door or Sliding door and bifold door is optional
7. Documents: complete documents such as instruction, operation manual, wire diagram, good list, certification and so on
The main equipments and materials for CFC free cold storage panel:
1. Refrigeration system:
1 Compressor: Copeland,
2 Condensing units: air cooler.
3 Evaporator: air cooler.
4 Coolant: R22 or R404a is available.
2. Electric controlling system:
Schneider electric components, digital display for temperature setting and reading, automatic and manual control, warning light for running failure.

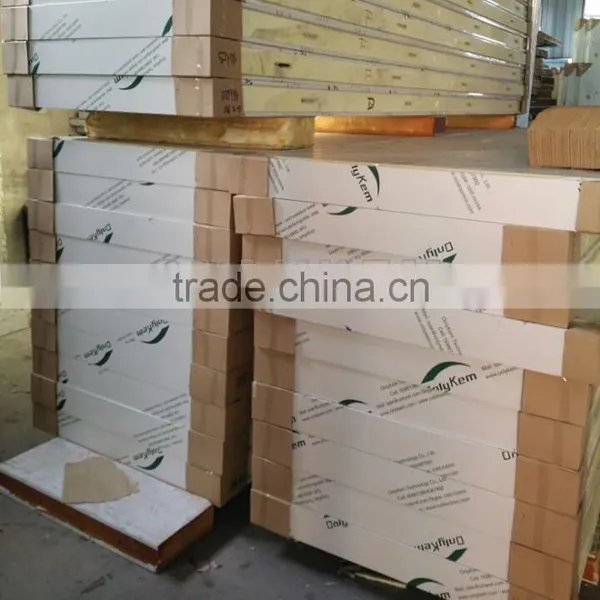

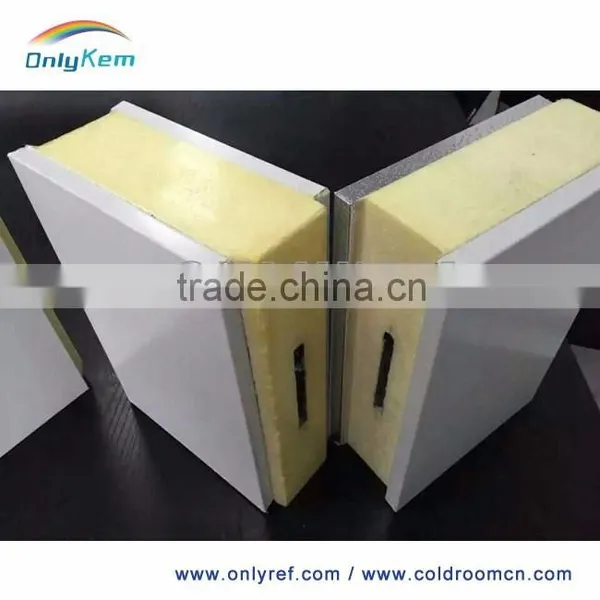

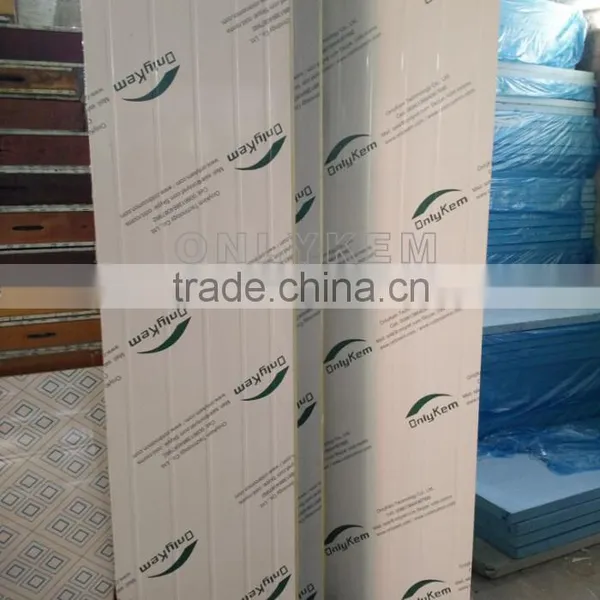

3. PU Insulation panel, cold store panels:
1 Material: polyurethane (PU), metal sheet.
2 Density of PU: 35~42kg/m3
3 Metal sheet:according to requirements

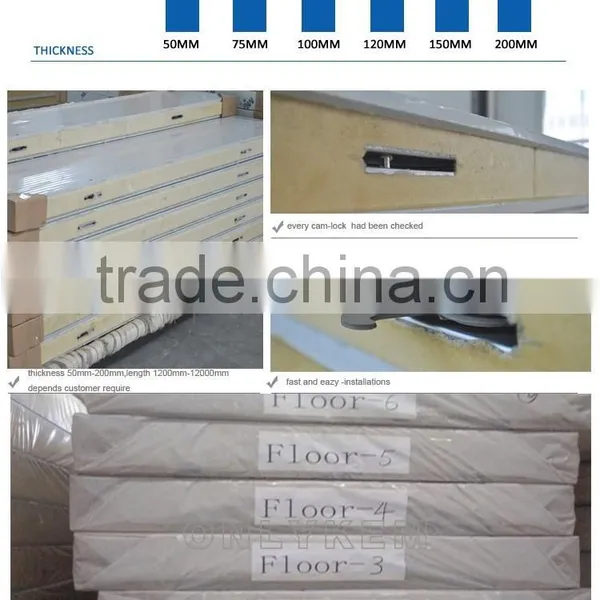

4 Thickness of panel: 50mm,75mm,100mm,120mm,150mm,200mm
Panel Thickness Table Due to 300c-450c and K Value Table
mm |
m2K |
m2h°C |
°C |
50 |
0.315 |
0.270 |
+10°C / 5°C |
75 |
0.238 |
0.205 |
+5°C / -5°C |
100 |
0.188 |
0.162 |
-5°C / -12°C |
120 |
0.155 |
0.132 |
-12°C / -20°C |
150 |
0.126 |
0.109 |
-20°C / -30°C |
200 |
0.095 |
0.800 |
-30°C / -40°C |

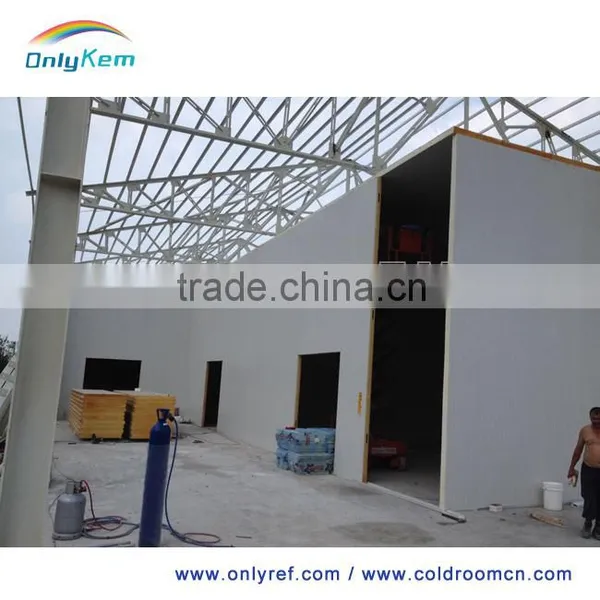

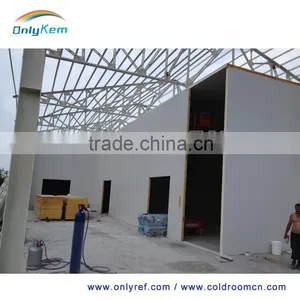

Installation of CFC free cold storage panel
We offer customized design service according to your special requirements.
