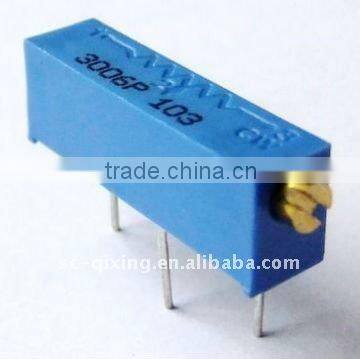

3006 Multiturn,Glass Cermet, Trimmer Potentiometers

Name: 3006 Multiturn,Glass Cermet, Trimmer Potentiometers
Brand: Bonens
SKU: 101980069
Availability: InStock

Sichuan Qixing Electronics Co., Ltd.

US$ 0.07 - 0.09 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

3006

Payment & Shipping

Payment Methods:

Port of Shipment:

guangdong or other ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number 3006

Type Other, Trimming Potentiometer, P

Technology Ceramic Composition

Resistance 1Ω~5MΩ

Resistance Tolerance ±10%

Rated Power 0.5W

Max. Operating Voltage 640(DC or AC)

Operating Temperature -55℃~+165℃

Specifications

1. 10ohm-5M ohm
2. 3006P 3006P-T 3059
3.multiturn trimming potentiometer
4. Special requirements catered to
5. free sample

Trimmer potentiometer 3006
Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	640V (DC or AC peak value)
	Effective electrical travel	≥70% of mechanical travel

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	22±2 laps
	Starting torque	≤35mN.m
	Standard package	25 pcs /tube(3006P)
		20 pcs /tube(3006P-T)
