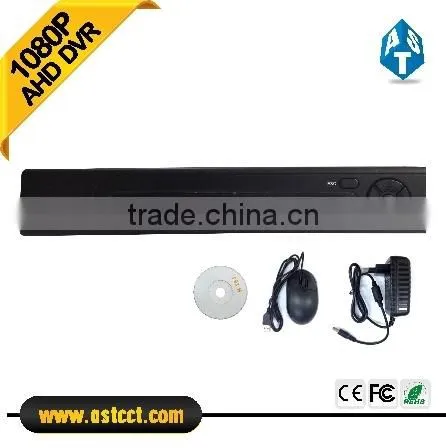

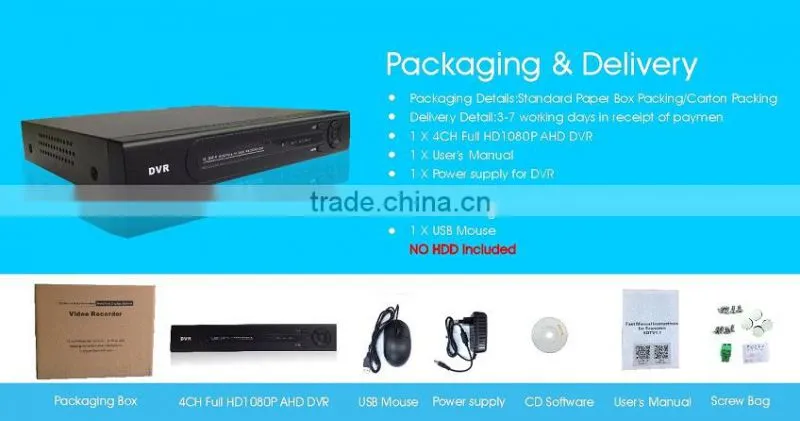

Packaging Details: Standard Paper Box Packing/Carton Packing
Delivery Detail: 3-7 Working days since payment arrived
Dome camera :1pcs
Manual:1pcs
Screw bag:1 pcs

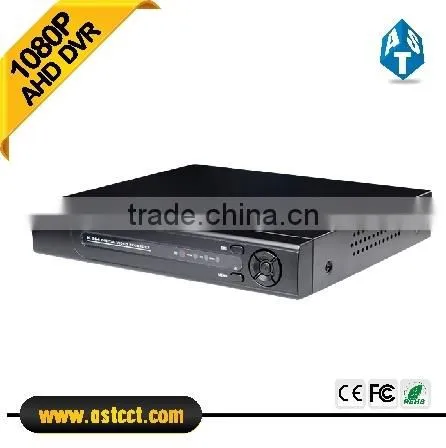

4CH 3G H.264 AHD 1080P DVR with wifi

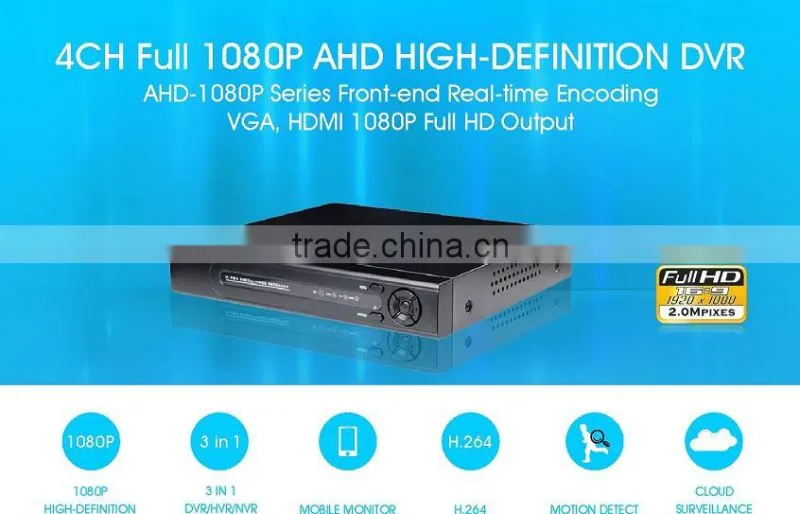

1.Support AHD-1080P series front-end real-time encoding;

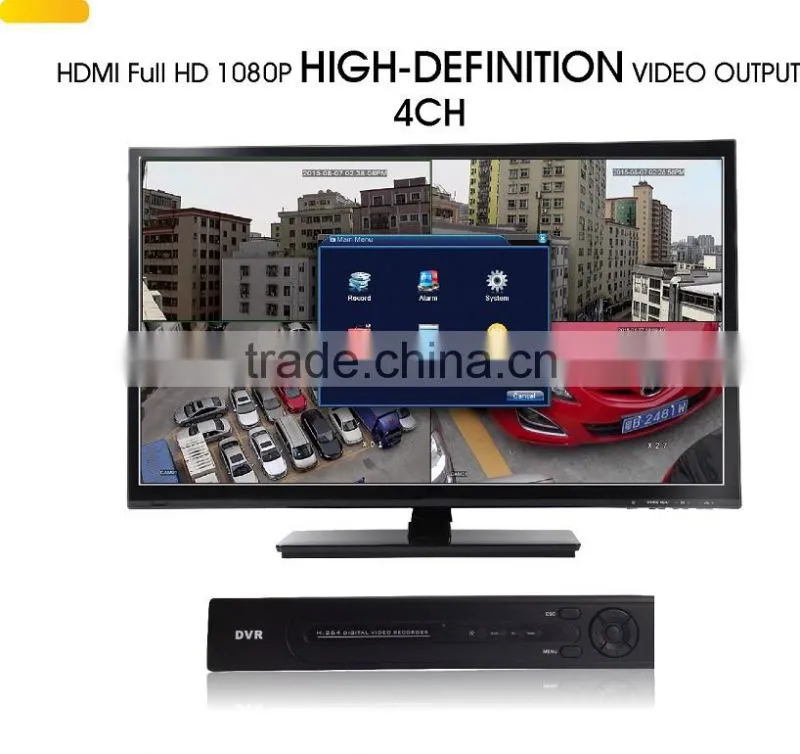

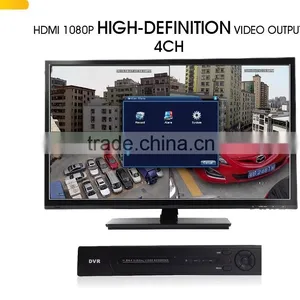

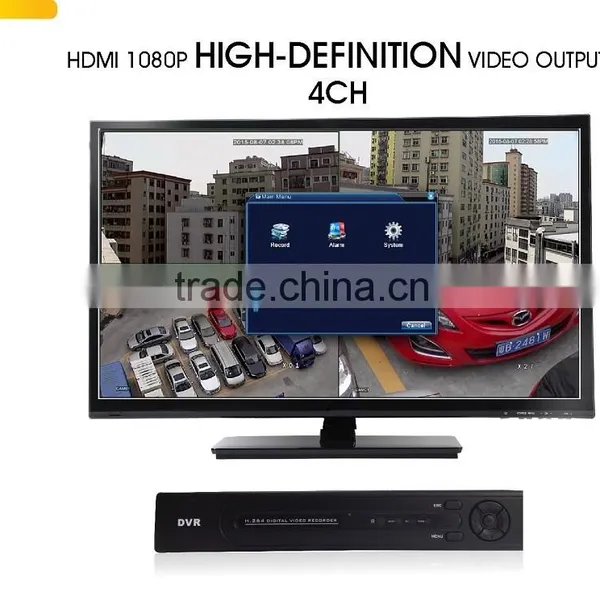

2.Support VGA, HDMI 1080P full HD output;
3.Support Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate;

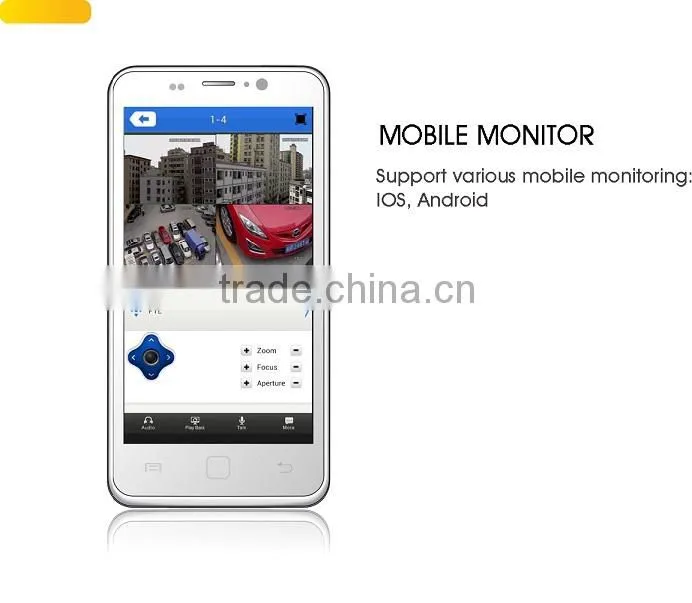

4.Support various mobile monitoring:(IOS, Android).
5.Support multiple web browsers(IE,Chrome,Firefox,Safari);
6.Support more than 20 languages, no nation boundaries;
7.Perfect protection circuit, unique triple watchdog function

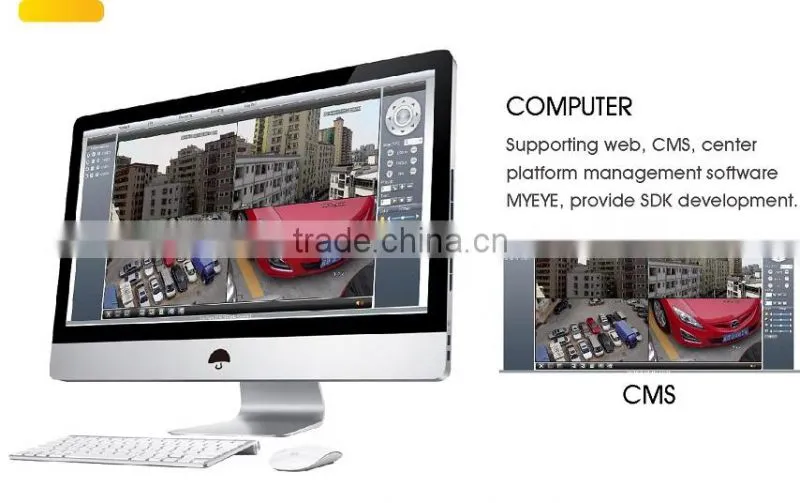

8.Supporting web, CMS, center platform management software MYEYE, provide SDK development.
| Mode | Name and Description | ADVR7204T-H 4ch AHD 1080P DVR |
| ADVR7204T-H | ||
| System | Main processor | Huawei Hi 3521 |
| Video | video compression | H.264(High Profile); |
| Encode | 4*AHD-1080P | |
| Decode | 4*AHD-1080P | |

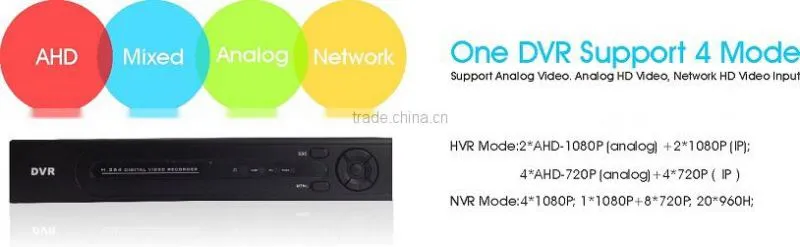

| Multi-mode input | Pure Analog: 4*AHD-1080P;4*AHD-720P; | |
| Mixed: 2*AHD-1080P (analog) +2*1080P (IP);4*AHD-720P(analog)+4*720P(IP) | ||
| Pure Network:4*1080P; 1*1080P+8*720P; 20*960H; | ||
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Recording and Playback | Record mode | Manual>alarm>motion detection>timing |
| Playback Channels | 4*1080P@25fps | |
| Storage and backup | Space occupation | 1080P:20~30G/ day*channel |
| 720P:20G~30G/ day*channel, 960H 12~20G/ day*channel | ||
| audio:691.2M/ day*channel | ||
| Backup mode | Network backup,USB HDD, USB writer,SATA writer | |
| Interface | Video input | 4 BNC |
| Video output | 1ch VGA,1ch HDMI | |
| Audio input | 4ch RCA | |
| Audio output | 1ch RCA | |
| Alarm input | 0 | |
| Alarm output | 0 | |
| Network interface | RJ45 10M/100M Adaptive Ethernet port | |
| PTZ control | One RS485;support multiple PTZ protocols | |
| USB | 2 USB ports | |
| Hard disk | 1 SATA(Each maximum support 4T ) | |
| Wireless | 3G,WIFI(expand via USB) | |
| Other | Power | 12V/2A |
| dimension | 255mm(length)* 225mm(width)* 45mm(height) |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
