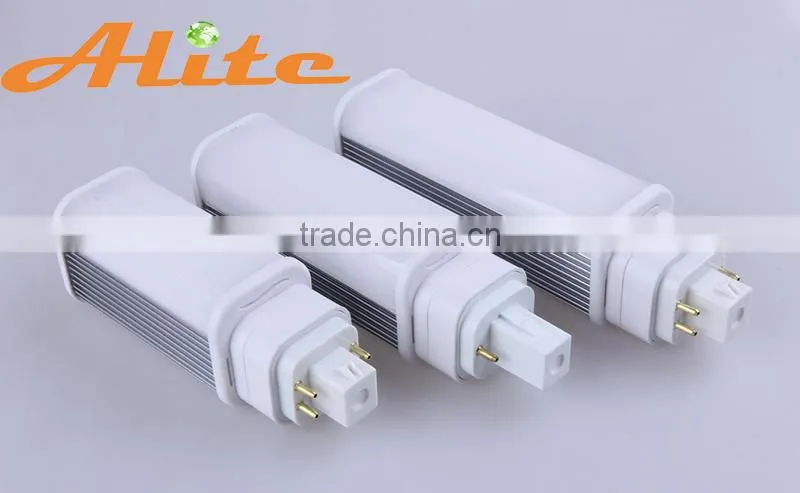

High quality G23 led CE with 4 Years warranty
Basic information of G23 led CE
* Power: 7W / 9W / 11W
* About 100lm/W luminous efficiency
* CRI: ≥ 80
* Input Voltage: AC100-277V 50~60Hz
* LED source: Lumen Max 5630SMD from Taiwan
* CCT: 2700K-6500K
* Bean angle: 270 degree
* Power Factor: >0.92
* Cover: striped clear/ frosted

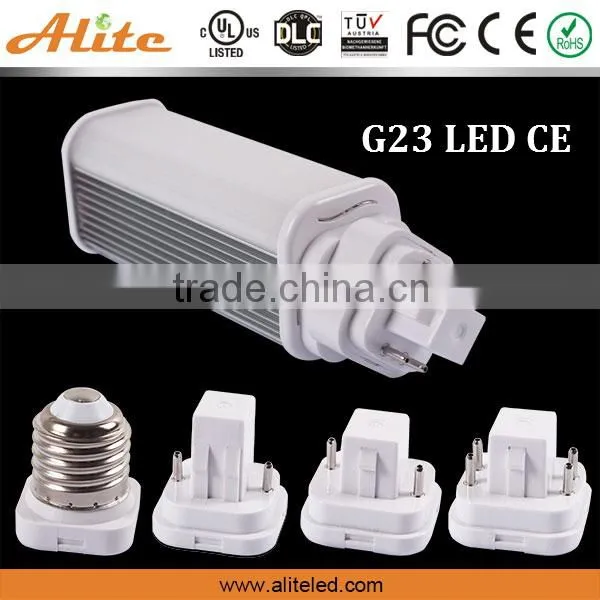

* Lamp holder: E27/G24/G23
* Warranty: 4 years.
To replace 13W CFLs, our 7W LED PL light is recommended.
To replace 18W CFLs, the 9W one will be OK.
To replace 26W CFLs, PL-11W-32LEDs is the best choice.
Why choosing G23 led CE from Alite LED?
1. Adopt thick and firm housing made with pure Alumimun 6063 to ensure excellent heat dissipation.
2. Adopt 3-side lighting design to make the lamp to have a 180+ degree beam angle. This will make the light from the lamp be more comfortable compare to a 1-side, 120 degree beam angle one. Also this beam angle will give more effective light to you compare to the traditional 360 degree beam angle CFL.

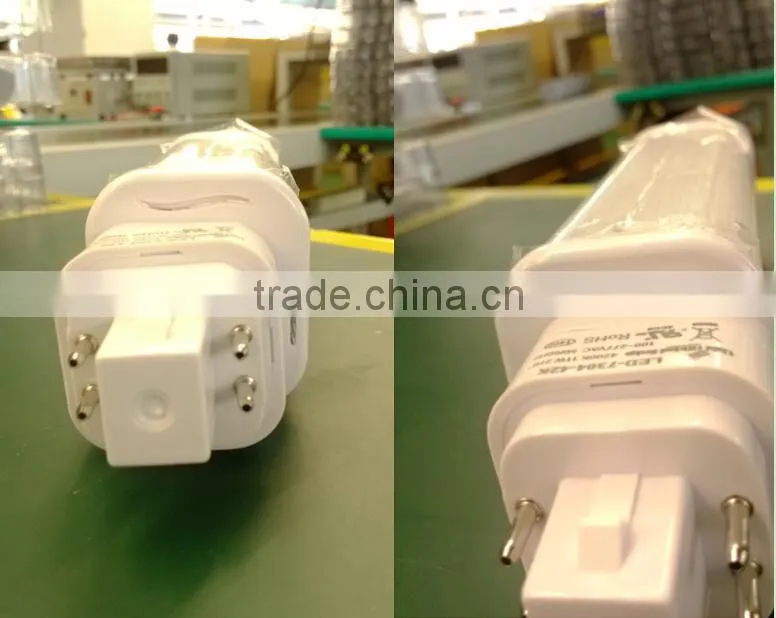

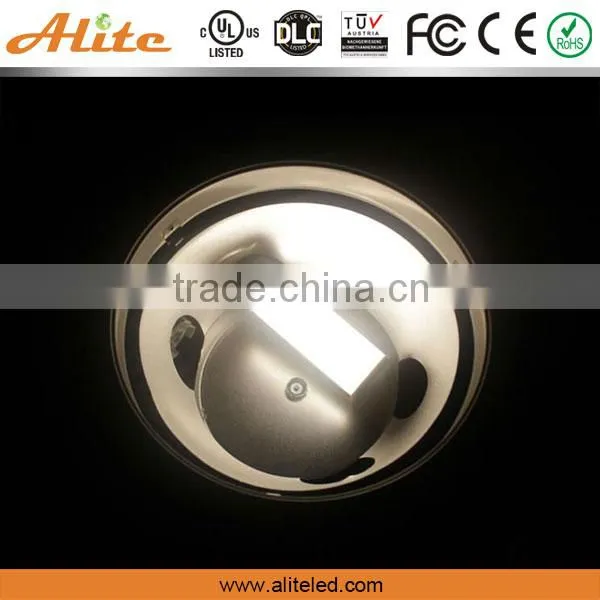

3. With a 270 degree rotatable lamp holder, it will be better compatible with the down light cover. Also, you can move the lamp holder to left or right when there is no enough space between two PL lights.
4. At one end of the lamp, we keep some holes to help better heat dissipation.

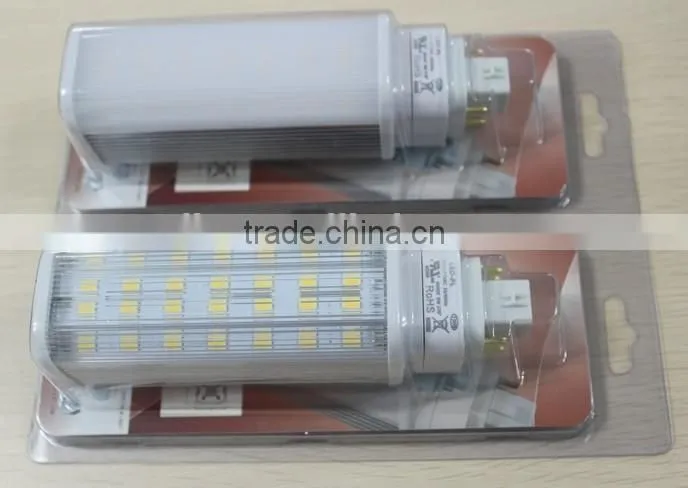

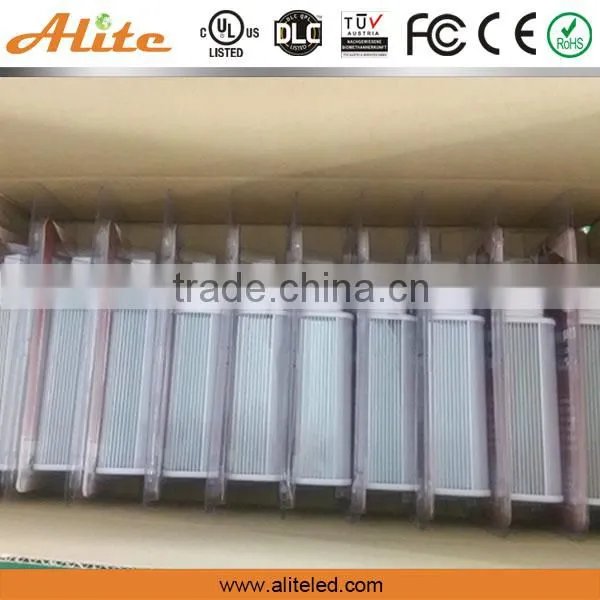

5. Good neutral packing not only for retails, also good for transportation.
More details of G23 led CE:
1. the light source of G23 led CE
For example,
22LEDs for the 7W one, full rated power for this 5630SMD is 0.5W, if full rated power running, the power of the total LEDs will be 22*0.5=11W. And the power driver will cost 2W. That will be 11W+2W=13W. Now we make it at 7W, which means we run 7/13=0.54(54%) current.
2. the power driver of G23 led CE
The life-span of the power driver is also most important for a lamp. The driver damaged, the lamp damaged. There is a component named compactor which determines the life time of the driver. We use Rubycon compactor from Japan. The life time of this component is 10,000hours only when working at 105 degrees centigrade. When the temperature goes down every 10 degrees, the life-span will be double. And our PL lamps always works at about 70 degrees(inside the lamp 72 degrees). Which will ensure a 50,000 hours life-span.

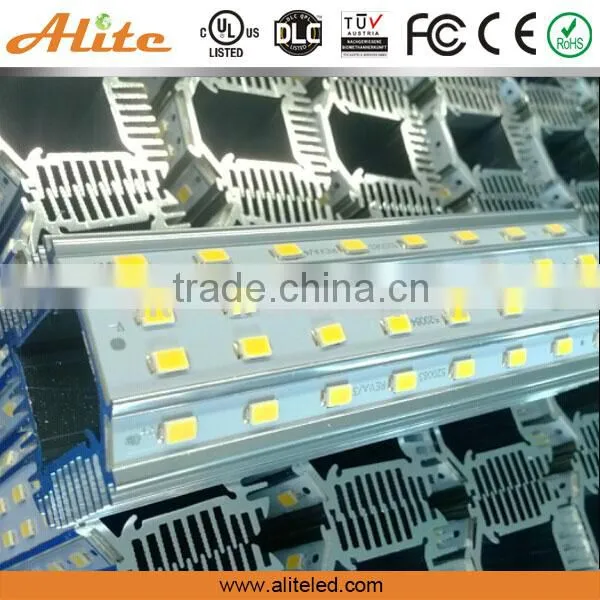

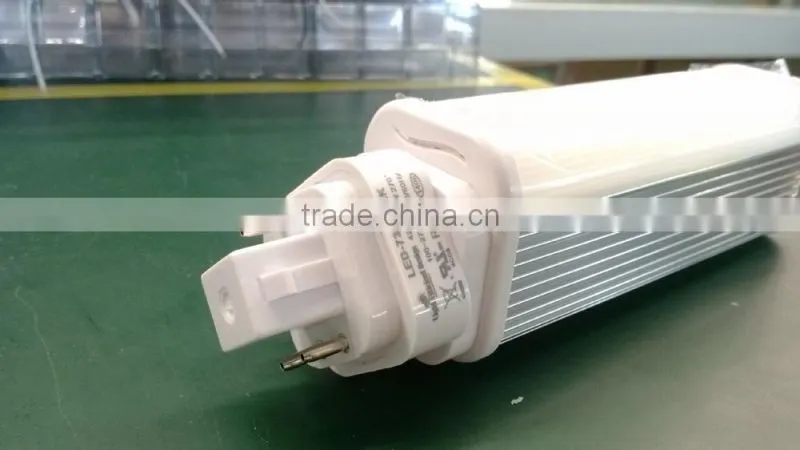

3. Aluminum housing

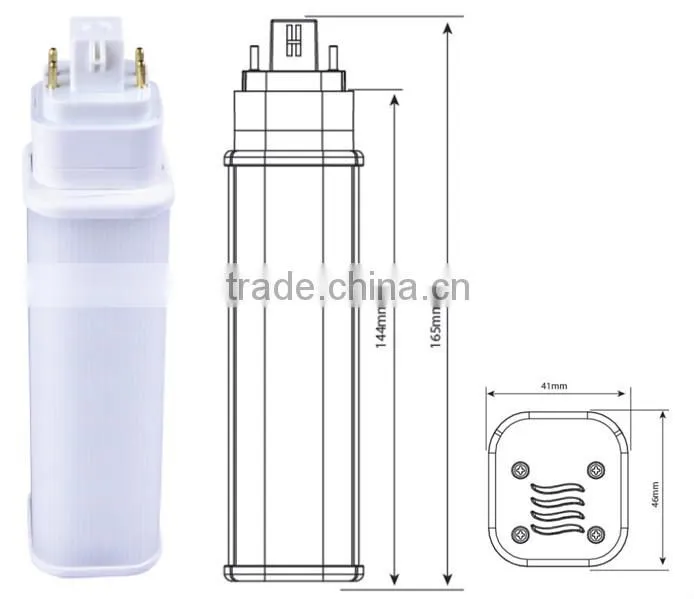

Above picture, I just showed you how thick the pure aluminum housing is. In fact, the size of the housing is also important. Most of the LED PL lamps have a around 36*36mm size. We believe this size is not enough for heat dissipation. This is just a size similar to traditional CFL. not suitable for LED. We make it bigger at 41*46mm.

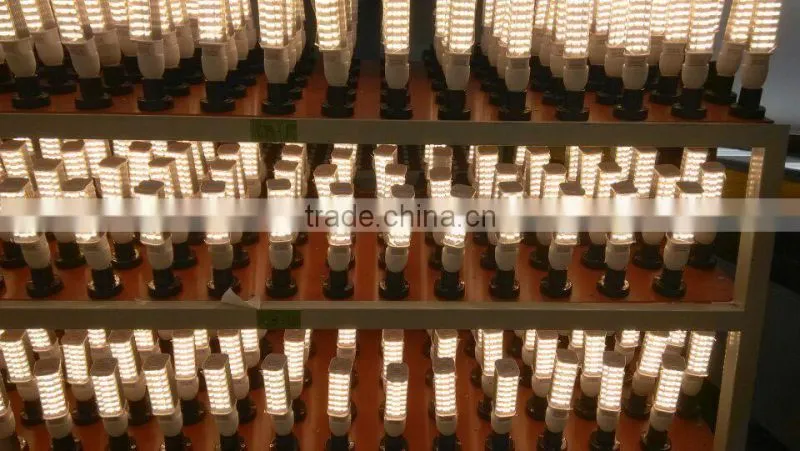

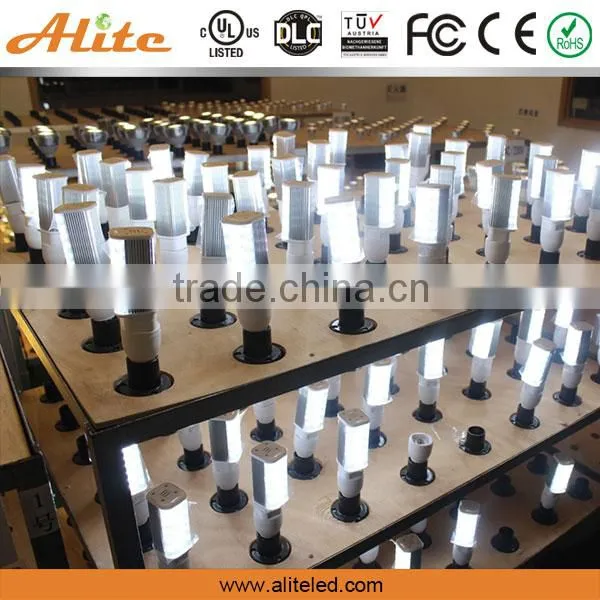

Aging test is necessary for each piece of G24 led CE:

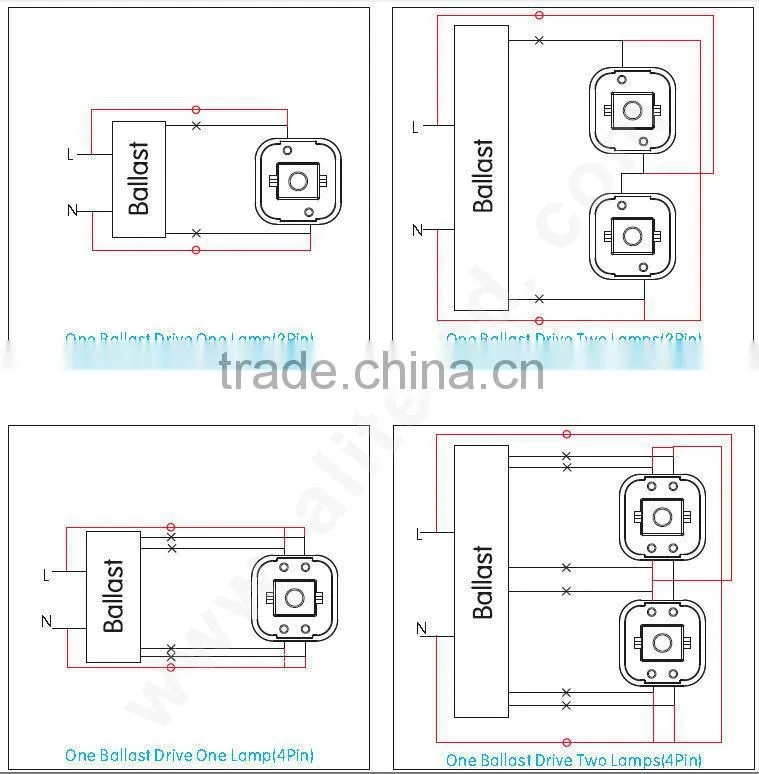

Wiring Diagram of g24q G24D led CE (With a simple ballast bypass to keep it long lasting,energy saving)
About us:
We are a middle-size Shenzhen-based manufacturer of high quality LED tubes, LED panels and LED PL lights. With about 200 people and a 4 floors building, we make hundreds thouands pieces of LED products to North American and EU market every year.
