Help Center1080P Sony 322 Ahd Camera With Metal Housing Mini Dome Camera ir Distance 20m With 3.6mm Fixed Lens 2.0MP Cctv Camera
Related Products
-
2.0Megapixel Night Vision AHD Bullet Camera IR 2.8-12mm Vari Focal Lens Support Ip66 1080P AHD CCTV CameraNegotiableMOQ: 1 Piece -
Infrared Technology and Bullet Camera AHD Style 1.0 Megapixel Camera CCTV BulletUS$ 1 - 47MOQ: 1 Piece
-
New Products 720P Bullet AHD Camera Waterproof Security CCTV Camera With Vari Focal LensUS$ 18.2 - 46MOQ: 1 Piece
-
High Resolution COMS 2.8-12mm Vari Focal Lens 1080P AHD Bullet CCTV Camera 2.0 MP Color IR Waterproof HD Video Bullet CameraUS$ 26 - 54MOQ: 1 Piece
-
1/2.8" Sony Cmos 1080P Ahd Cctv Camera 3.6mm Fixed Lens ir 25m Bullet Camera Mini Osd Menu Controller 2.0MP Oem Security CameraUS$ 23 - 40MOQ: 1 Piece
Packaging Details: Standard Paper Box Packing/Carton Packing
Delivery Detail: 3-7 Working days since payment arrived
Dome camera :1pcs
Manual:1pcs

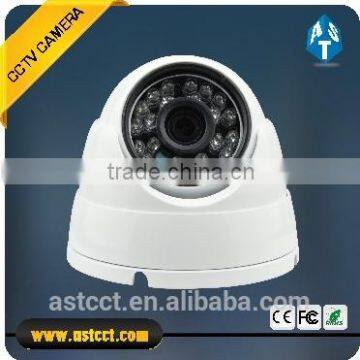

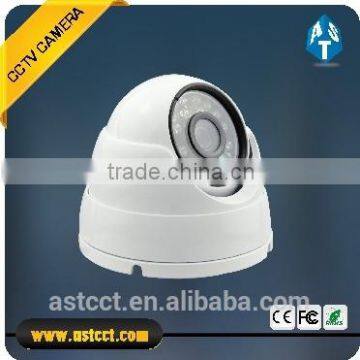

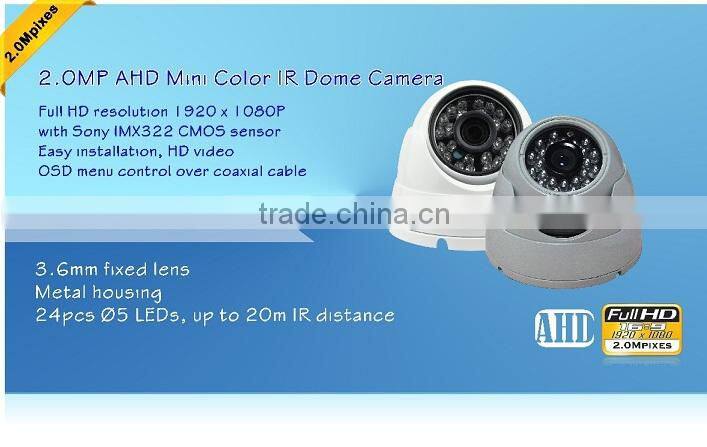

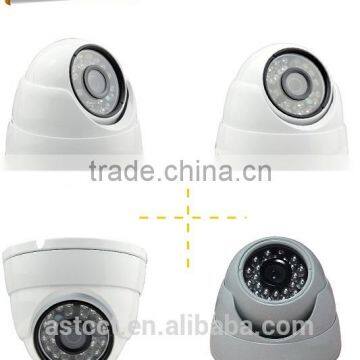

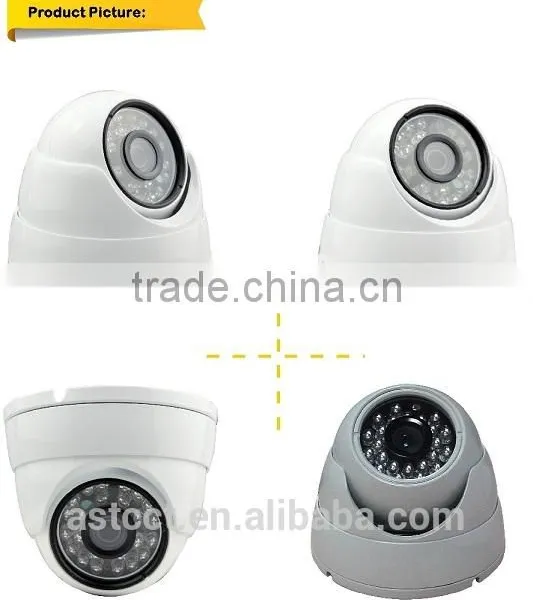

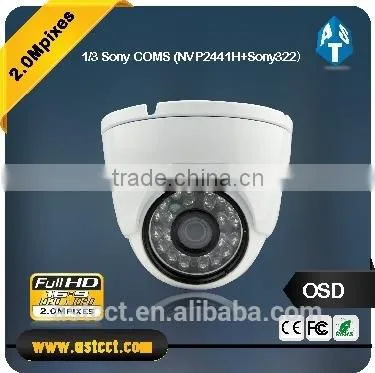

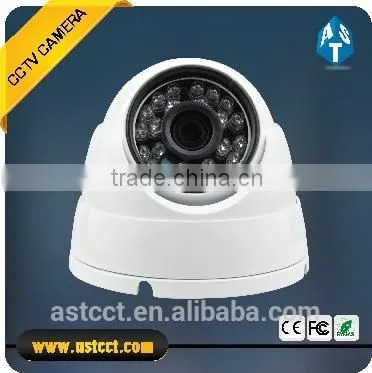

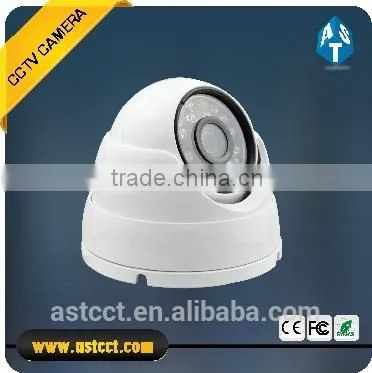

1080P sony 322 ahd camera with metal housing mini dome camera ir distance 20m with 3.6mm fixed lens 2.0MP cctv camera

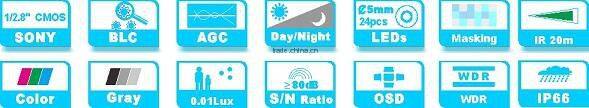

1.Adopt Analog HD technology
2.Full HD 1080P AHD video output
3.1/2.8" 2.1MP Progressive Scan CMOS
4.Min illumination color 0.01 Lux
5.Day/Night(ICR)& 3D DNR&AWB&AGC&BLC
6.Support the OSD menu control
7.3.6mm fixed lens
8.24pcs Ø5 LEDs, up to 20m IR distance
9.Metal housing
10.IP66
| Mode | Name and Description |
ASHA20-D6-22 2.0MP AHD Color IR Dome CCTV Camera |
| ASHA20-D6-22 | ||

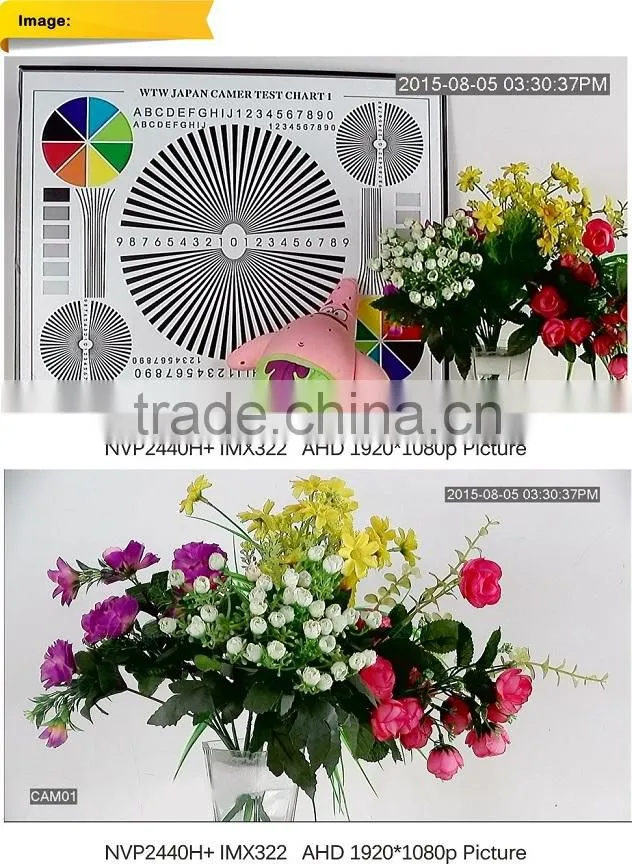

| Camera | Media Processor | NVP2440H + IMX322 |
| Image Sensor | 1/2.8" 2.1MP Progressive Scan CMOS (SONY IMX322) | |
| Effective Pixels | 1984(H)*1105(V) | |
| Video Frame Rate | 1080p@25fps (PAL)/1080p@30fps(NTSC) | |
| Signal System | PAL/NTSC | |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | Auto/ 1/50 / (1/60) to 1/10,0000s | |
| Lens | 3.6mm fixed lens | |
| Lens Mount | M12 Mount | |
| Day& Night | Auto,dual IR-cut filter | |
| IR Distance | 20m IR distance | |
| S/N Ratio | ≥80dB(AGC OFF) | |
| Video Output | AHD 1080P & CVBS 960H | |
| Synchronization | Internal Synchronization | |
| Menu | Auto Gain | Low/Middle/High/Off |
| White Balance | AWB/ATW/Indoor/Outdoor/Manual | |
| D-WDR | Support | |
| Noise Reduction | 2D/3D DNR | |
| Private Mask | On/Off, maximum 8 zones | |
| Motion Detection | On/Off, maximum 4 zones | |
| Language | Chinese/English/German/French/Italian/Spanish/polish/Russian/Portuguese/Turkish | |
| Function | Sharpness, Brightness, Defog, Mirror | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |

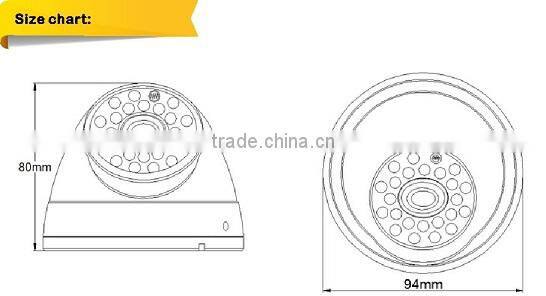

| Dimension | 94*94*69mm | |
| Weight | 0.25Kg |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
