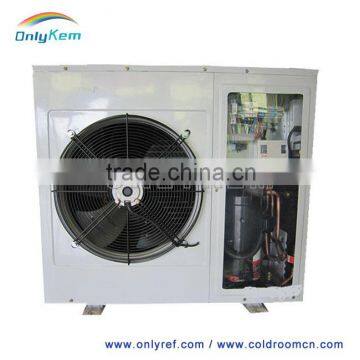

small cold room refrigeration compressor condensing unit
Good news, our company and products are guaranteed by alibaba for quality and shipping on-time with100% payment refund, welcome your inspection and inquiry.
Specifications:
1. Copeland scroll and be used for refrigeration medium temperature and low temperature applications
2. Copeland scroll compressor: 2hp-15hp
3. Emerson’s Copeland Scroll technology
4. Serviceability in the field
5. Integrated vapor injection technology
6. Wide range envelope and efficient operation
7. Ability to handle various refrigerants,R404,R22
8. Both single or three phase are ok
9. Condenser with blue hydrophilic aluminum fins
10. Axial condenser fan motor
11. High-quality refrigeration components (DANFOSS, Castel, electrical components)
12. Temperature:
² ZR series: 5~-25℃, normally the lowest temperature is -12℃
² ZB series: for high and medium temperature cold room; the lowest temperature is -18℃
² ZF series: for low temperature; normally the temperature is -18℃~-25℃
13. Cooling capacity 2.2.0Kw~14.6Kw
14. Standard Equipment: Compressor, crankcase heater, oil pressure safety switch, air-cooled condenser, receiving tank, drier-filter, meter panel, pressure controller, B5.2 refrigeration oil, protection gas, double stage compressor with intermediate cooler
15. Optional components: Shock absorber, oil separator, gas liquid separator, We can supply as you need.
16. Hermetic design and anti-corrosion housing
17. Fan speed controller, acoustic lining, compressor acoustic jacket
| Condensing unit Model | ORG20SL | ORG30SL | ORG40SL | ORG50SL | ORG60SL | ||
| Compressor model | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE | ||
| Refrigerant | R404a | ||||||
| Power | 380~420V/3phase/50hz or 460V/3phase/60hz | ||||||
| Condenser | Qty of fan | 1 | 1 | 2 | 2 | 2 | |
| Diameter(Φmm) | 450 | 450 | 450 | 450 | 450 | ||
| Air volume(m3/h) | 4800 | 4800 | 4800 | 2*4800 | 2*4800 | ||
| fan power(w) | 250 | 250 | 250 | 2*250 | 2*250 | ||
| connection | Exhaust | mm | Φ16 | Φ16 | Φ16 | Φ19 | Φ19 |
| Suction | mm | Φ10 | Φ10 | Φ10 | Φ12 | Φ12 | |
| Dimension | L | mm | 970 | 970 | 970 | 970 | 970 |
| W | mm | 360 | 360 | 360 | 420 | 420 | |
| H | mm | 835 | 835 | 835 | 1335 | 1335 | |
| Installation | D | mm | 480 | 480 | 480 | 482 | 480 |
| Dimension | E | mm | 386 | 386 | 386 | 444 | 444 |
| Condensing unit Model | ORG80SL | ORG100SL | ORG130SL | ||||
| Compressor model | ZB58KQE | ZB66KQE | ZB95KQE | ||||
| Refrigerant | R404a | ||||||
| Power | 380~420V/3phase/50hz or 460V/3phase/60hz | ||||||
| Condenser | Qty of fan | 2 | 2 | 2 | |||
| Diameter(Φmm) | 450 | 500 | 500 | ||||
| Air volume(m3/h) | 9600 | 131450 | 13140 | ||||
| fan power(w) | 2*250 | 2*450 | 2*450 | ||||
| connection | Exhaust | mm | Φ22 | Φ25 | Φ25 | ||
| Suction | mm | Φ16 | Φ19 | Φ19 | |||
| Dimension | L | mm | 1010 | 1110 | 1110 | ||
| W | mm | 420 | 420 | 420 | |||
| H | mm | 1335 | 1335 | 1335 | |||
| Installation | D | mm | 504 | 604 | 604 | ||
| Dimension | E | mm | 446 | 446 | 446 | ||
Copeland scroll compressor

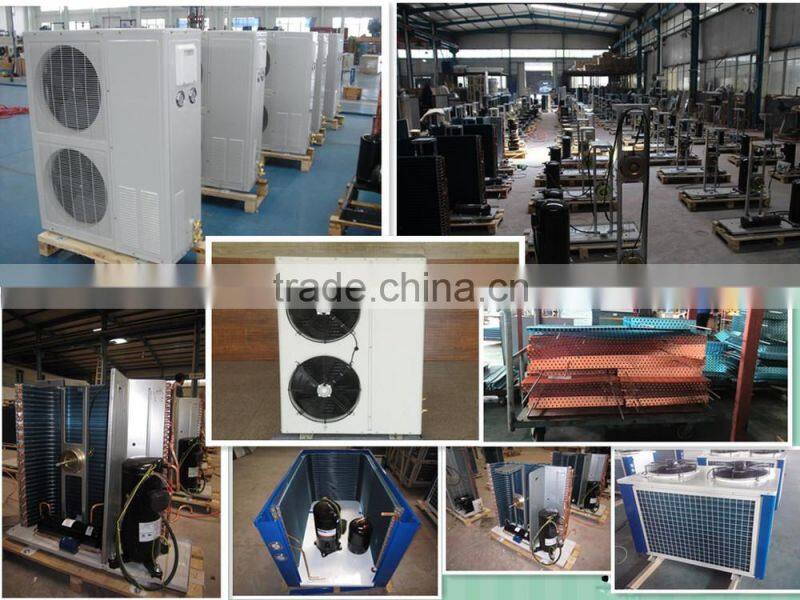

Manufacturing equipments:
Other equipments:
Wooden case packing:
After inspection the condensing units are packed in plastic bags and then carefully packed in cartons.

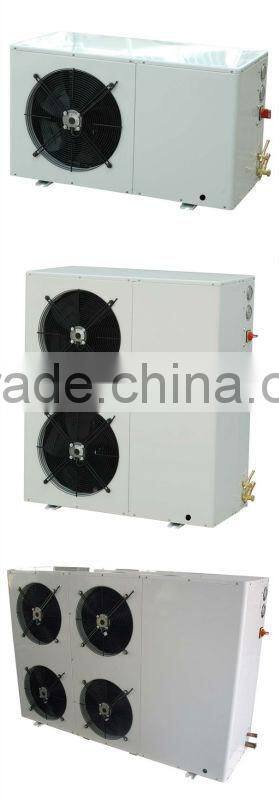

Samples for OnlyChem condensing units:
Guarantee & Aftersales service
² One-Year guarantee for whole unit, three-year for compressor
² 24 hours technical support by e-mail and telephone
² Use-friendly English software and user manual
² We will send replacement of spare parts if machine has a problem
² Oversea engineering service, not in charge the travel expenses
we will reply you as soon as possible once we get your requirements of the following questions:
1.what is your temperature needed ?
2.what is capacity of compressor you need?
3.air cooled, or water cooled?
4.what is the electric voltage ?
Our design depends on your requirements
