T8 Tube lights T8 Linear LED Tube

FOB Price

USD $1 - $10 / Piece

10 Pieces(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Epistar SMD2835	Warranty(Years):	5	Input Voltage(V):	AC100-277V
Lamp Power(W):	25	Lamp Luminous Flux(lm):	3000	Lamp Luminous Efficiency(lm/w):	120
Color Temperature(CCT):	Pure White	Working Temperature(℃):	-25, 40	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	IP54	Certification:	CE, EMC, FCC, LVD, PSE, UL
Place of Origin:	Guangdong, China	Brand Name:	Alite	Model Number:	T8

Product Description

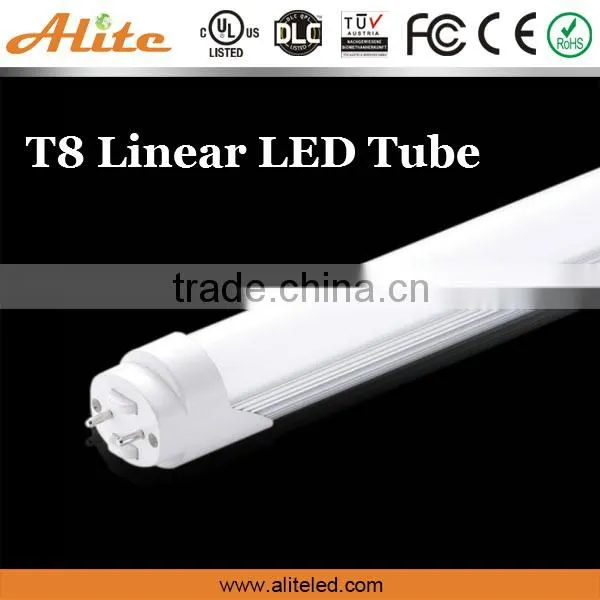

T8 Tube lights T8 Linear LED Tube TUV CE approved

Product Feature of T8 Linear LED Tube:

Ballast Compatible LED Tube is developed according to working principle of traditional fluorescent lamp and bal las t , which can be compatible with most existing electronic ballast & inductive ballast .
And installation is very easy , just direct replacement for fluorescent lamp. And it can meet safety standard of Europe , USA , Australia etc

Product Advantage of T8 Linear LED Tube:

1. Compatible with Rapid Start, Instant start , dimming electronic ballasts and inductive ballasts etc. Most of existing ballasts .
2. Direct replacement for traditional fluorescent tubes ,no need to remove the starter & rewire .
3. Work with direct connection of AC90-277V ALSO .
4. Work well with one pc or more tubes when driven by one bullet in a parallel circuit .
5. Approved by UL/cUL CE ROHS FCC
6. 5 Years warranty

Specifications of T8 Linear LED Tube:

	T8-20W-1.2M-C
Power Consumption	20W
Input Voltage	AC100V-277V
Frequency	50-60Hz
Color	Warm white	Natural white	Cool white
Color Temp. (Typical)	3000K	4000K	6000K
Luminous(Typical)	2200lm	2500lm	2500lm
Efficacy(Typical)	120 lm/W	125 lm/W	125 Lm/W
Color Rendering Index	>82	>82	>82
Power Factor	>0.92
Life Time	>50000hrs
Housing Material	Pure Aluminum
Beam Angle	180°
Operating Temp.	-25°C to +40°C
Warranty	3/5 Years
Dimmable	NO

Wiring Diagram of T8 Linear LED Tube:

Applications of T8 Linear LED Tube:

-Offices ,factories,shopping malls, schools,garages ,airports,metro ,household lighting

Warning of T8 LED Fluorescent:

1) Do not use tubes in a closed fixture or under damp environment;
2) Do not use for safety lamp or emergency lamp.

Automatic t8 led tube light aging machine

Packaging & Shipping

Our Services

1, We accepted ODM and OEM produce.

2, Custom package and laser printing will be made with your LOGO according to your requirements. .

3, Best after sales service in LED industry:

Free maintenance or replacement if any quality problems caused while warranty period. And the shipping cost borne on us.
